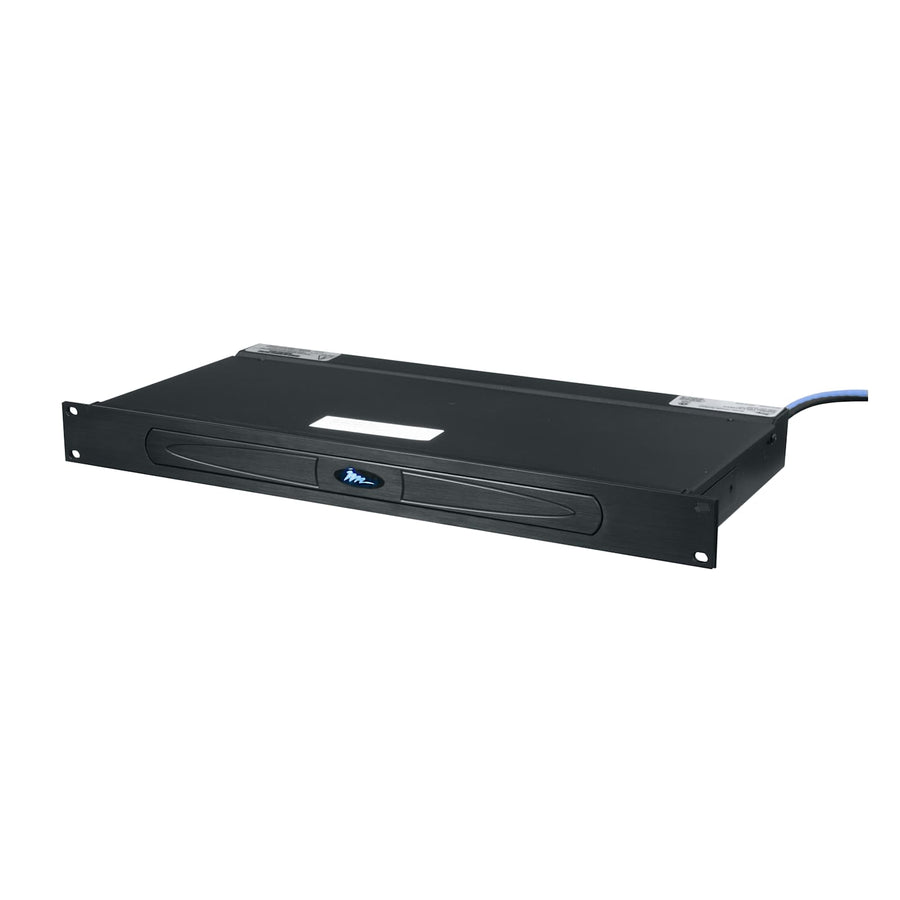

Rackmount Power/Lighting, 8 Outlet, 15A
1RU rackmount power distribution and lighting unit featuring 8 outlets and retractable front lights
The PDLT-815RVA is a 1RU rackmount solution that combines power distribution and lighting into a single space-saving package. This 15A unit features 8 outlets and is designed to provide visibility within a rack through retractable front lights that illuminate your equipment. For electrical safety and protection, it includes 2-stage surge protection and is engineered to ensure noise is not passed to ground. The unit is constructed from steel with a brushed and anodized finish and includes two rear USB power ports specifically for powering LT-GN series work lights. This corded device utilizes a 5-15P plug and comes with a 9 ft (2.7 m) cord for installation flexibility. The PDLT-815RVA is ETL Listed and is a 19 in (48.3 cm) wide component with a 9.25 in (23.5 cm) depth and 1.75 in (4.4 cm) height.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.25 in (23.5 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 11.4 lbs (5.2 kg) |
| Volts AC | 115 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 11
| Cable Type | Corded |
| Finish | Brushed and Anodized |
| Material | Steel |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747073090 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDLT-815RVA work with LT-GN series lights?
Yes, this unit includes two rear USB power ports specifically to power LT-GN series work lights.
What type of surge protection does the PDLT-815RVA provide?
The PDLT-815RVA features 2-stage surge protection designed to prevent noise from being passed to ground.
How many outlets are available on this rackmount power unit?
The unit provides 8 outlets and operates on 115 VAC with a 15A capacity.
What is the difference between the PDLT-815RVA and other PDLT models?
The PDLT-815RVA features a brushed and anodized finish, whereas other variants in the series may offer a black powder coat.
Which document should I use for technical submittals?
You can use the PDLT Series Rackmount A&E Specification Sheet (PDF) for detailed technical data for your submittal.
