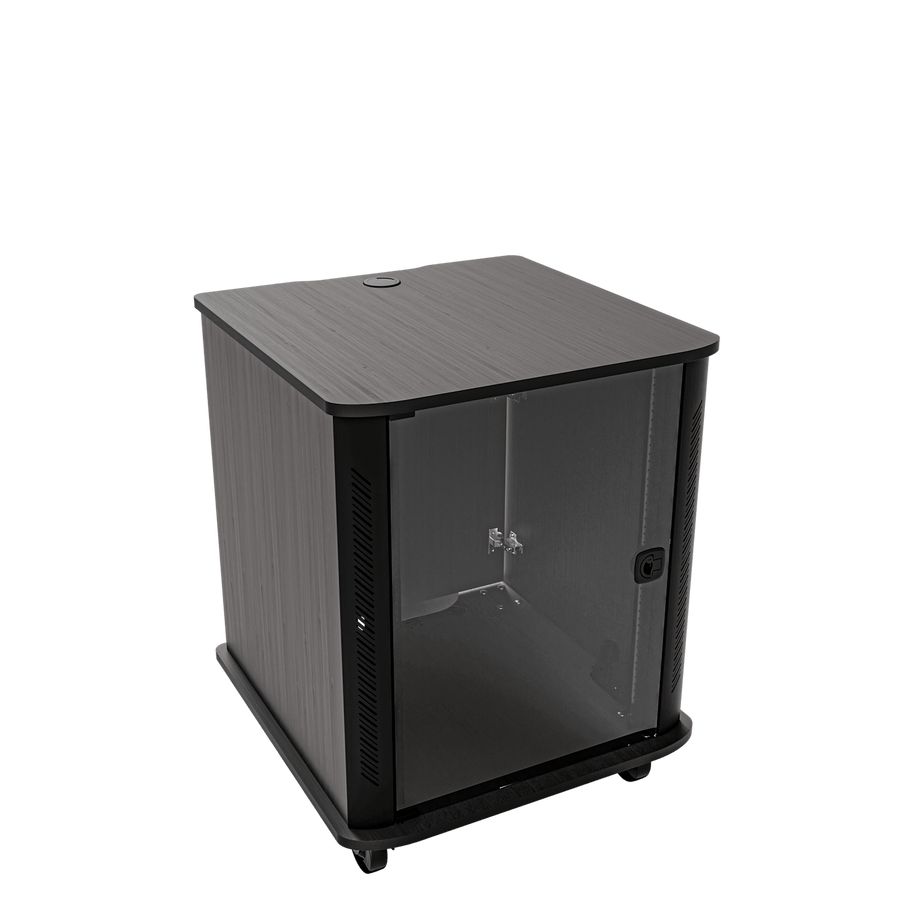

RFR Series Reference Furniture Rack - RFR-1628A3
Mobile 16 RU reference furniture rack in Asian Night finish, featuring a locking glass front door and 350 lbs UL load capacity
The RFR-1628A3 is a highly reliable, 16 RU mobile presentation furniture rack from the RFR Reference Series, finished in Asian Night. This wide-body rack is engineered for professional integration, utilizing internal steel bracing and 3" bolt-through casters to ensure stability during transport and long-term use. It features 10-32 threaded adjustable front rails to accommodate various mounting requirements. For equipment protection, the unit includes a standard locking glass front door. This rack is designed for passive cooling, but it can be upgraded with an optional thermostatic RFR-CABCOOL50 50 CFM cooler or other blower kits to manage thermal loads. With a usable height of 28" (71.1 cm) and a usable depth of 23.31" (59.2 cm), it provides ample space for professional AV components. The RFR series is built to withstand years of use in demanding environments while maintaining an elegant aesthetic.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28.25 in (71.8 cm) |
| Height | 35 in (88.9 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 16 RU |
| Shipping Weight | 134 lbs (60.8 kg) |
| UL Load Capacity | 350 lbs (158.8 kg) |
| Usable Depth | 23.31 in (59.2 cm) |
| Usable Height | 28 in (71.1 cm) |
All other specifications 7
| Width | 27.3 in (69.3 cm) |
| Color | Asian Night |
| Material | Wood |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| UPC | 656747408069 |
| Certifications | UL Listed |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, 27dB
UQFP-4$630.90
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
50 CFM RFR Cabinet Cooler
RFR-CABCOOL50$419.40
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
Questions about this part
Will the RFR-1628A3 fit my monitor?
This rack supports an optional flat screen mount that can hold most monitors up to 32 inches.
What equipment can I install in the RFR-1628A3?
This 16 RU rack can house various components like the UPS-S2200R UPS or PD-915R power strips; it is compatible with many accessories including the WUSS17-5 wide unit shelf.
How much weight can this mobile rack actually support?
The RFR-1628A3 has a UL Listed load capacity of 350 lbs (158.8 kg).
What is the difference between the RFR-1628A3 and other RFR Series racks?
The RFR-1628A3 is the 16 RU version in Asian Night; the series also offers different rack unit sizes like 20 RU and 24 RU in finishes like Biltmore Cherry or Kensington Maple.
What do I need for submittals and installation?
You can find the RFR Series Reference Mobile Furniture Rack A&E Specification Sheet for submittals, and an Instruction Sheet is available for installation guidance.
