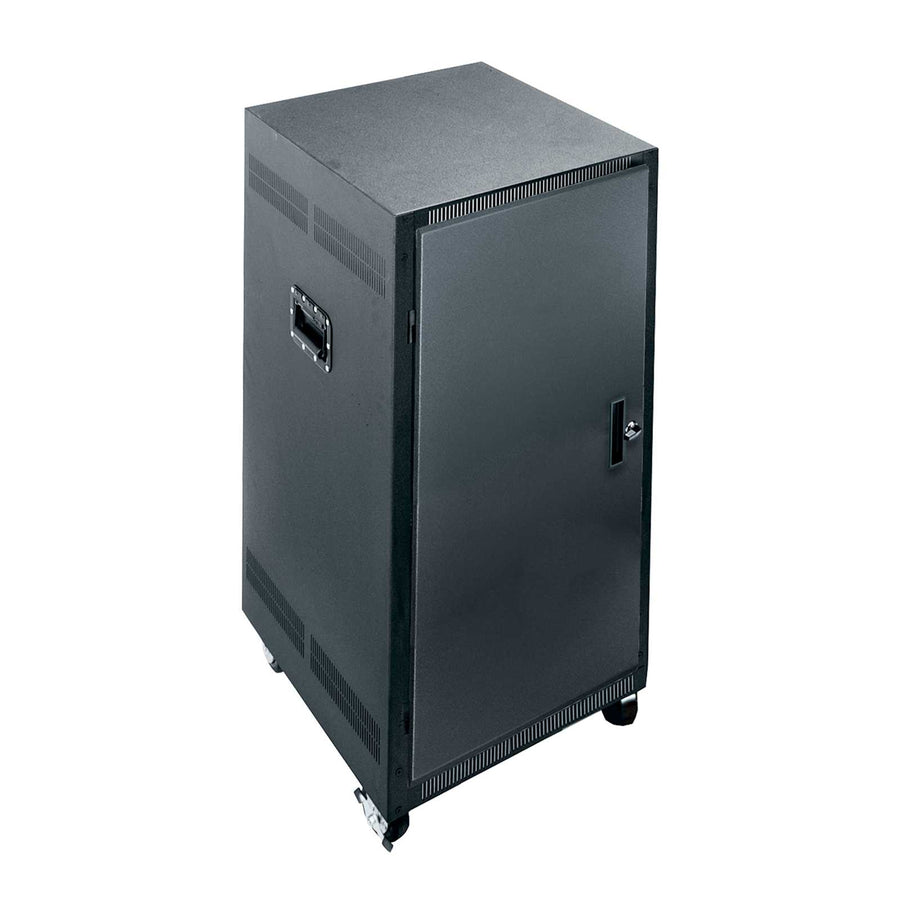

PTRK Series Portable Rolling Rack - PTRK-2726
27 RU portable rolling rack with 500 lbs capacity, keylocked front and rear doors, and heavy-duty locking casters
The PTRK-2726 is a 27 RU portable rolling rack designed for applications where rugged mobility is required. This fully welded steel chassis supports a weight capacity of 500 lbs (226.8 kg) and features a usable height of 47.25 in (120 cm) with a usable depth of 24.5 in (62.2 cm). For secure transport, the unit includes spring-loaded recessed side handles and heavy-duty commercial grade locking casters. Thermal management is handled via vented side panels and laser knockouts on the rear door that accept fan kits like the KO-AWFP2. This TAA-compliant rack utilizes standard front adjustable 10-32 threaded rackrails and includes keylocked front and rear doors for equipment security. For organized cabling, the bottom of the rack includes slots for cable strain relief and equipment securing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26.93 in (68.4 cm) |
| Height | 56.41 in (143.3 cm) |
| Rack Units | 27 RU |
| Usable Depth | 24.5 in (62.2 cm) |
| Usable Height | 47.25 in (120 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 22.59 in (57.4 cm) |
| Federal Ops Country of Origin | Mexico |
All other specifications 5
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747071423 |
| Wood Laminate Top | No |
| Certifications | TAA |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented - 4 Piece
U2V-4$358.20
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the PTRK-2726 fit my equipment depth?
This rack provides a usable depth of 24.5 in (62.2 cm) within a total chassis depth of 26.93 in (57.4 cm).
What accessories are needed for cooling this rack?
The rear door features laser knockouts to accept fan kits such as the KO-AWFP2 (190 CFM) to assist with thermal management.
Does this rack include power distribution?
Power distribution is sold separately; compatible options include the PDT-1620C-NS low profile vertical power strip or the RLNK-215 Select Series PDU.
How is the equipment secured within the rack?
The PTRK-2726 features keylocked front and rear doors to secure your gear, and the bottom includes slots for cable strain relief and securing equipment.
Is this rack TAA compliant?
Yes, the PTRK-2726 is TAA compliant and is manufactured in Mexico.
