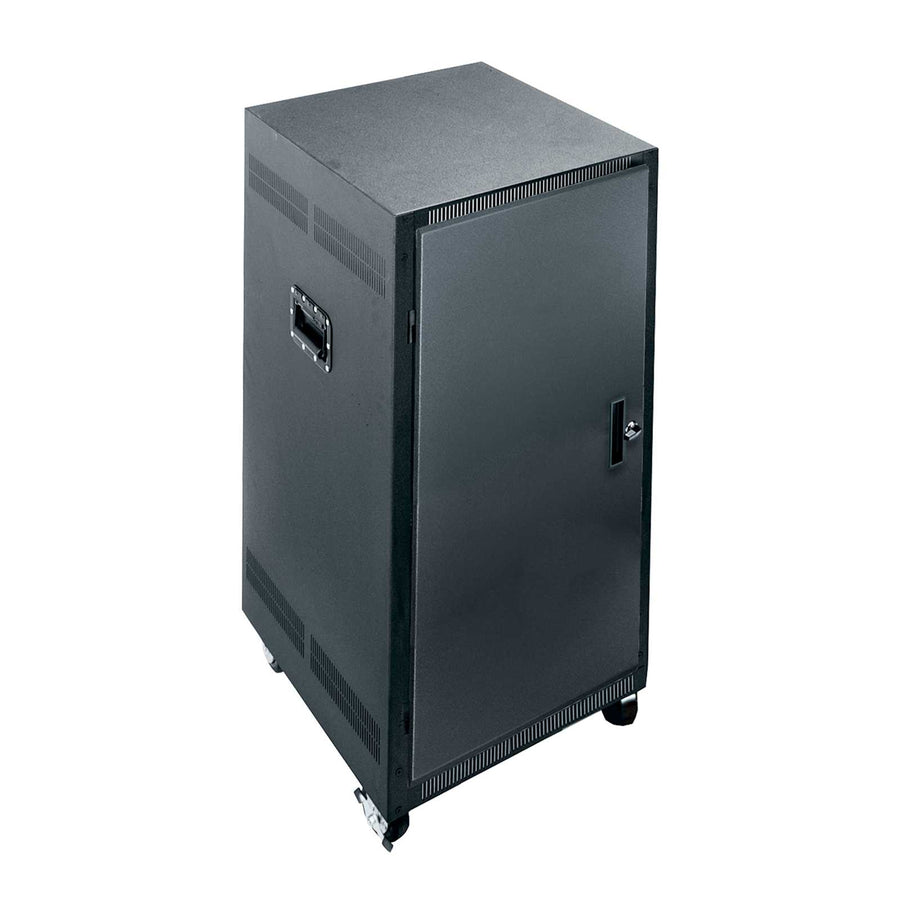

PTRK Series Portable Rolling Rack - PTRK-2126
21 RU portable rolling rack with 500 lbs capacity, TAA compliant, and keylocked front and rear doors for secure transport
The PTRK-2126 is a 21 RU Middle Atlantic portable rolling rack designed for applications where rugged portability is a requirement. This fully welded steel construction supports a weight capacity of 500 lbs (226.8 kg). For secure transport between sites, the unit features keylocked front and rear doors and spring-loaded recessed side handles. Thermal management is assisted by vented side panels, and the rear door includes laser knockouts to accept fans like the KO Series Rear Door Fan Kit, KO-AWFP2. The rack utilizes standard front adjustable 10-32 threaded rackrails and includes heavy-duty commercial grade locking casters for smooth movement. For cable management, the bottom of the rack features slots for cable strain relief and equipment security.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26.93 in (68.4 cm) |
| Height | 45.91 in (116.6 cm) |
| Rack Units | 21 RU |
| Usable Depth | 24.5 in (62.2 cm) |
| Usable Height | 36.75 in (93.3 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 22.59 in (57.4 cm) |
| Federal Ops Country of Origin | Mexico |
All other specifications 5
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747071416 |
| Wood Laminate Top | No |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
FTA Series 4 Inch DC Fan
FT-FAN$90.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
Rackmount Power/Cooling, 11 Outlet, 15A & 2-Stage Surge
PDCOOL-1115R$846.00
21 RU Rackrail 10-32 for PTRK Series
PTRK-RR21$88.20
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A Basic Surge
PDT-615C$286.20
Questions about this part
Will the PTRK-2126 fit my equipment depth?
This rack offers a usable depth of 24.5 in (62.2 cm) and an overall depth of 26.93 in (68.4 cm) for equipment installation.
What accessories are needed for power and cooling?
You can add cooling using the UQFP-4RT 100 CFM Fan Panel or a KO-AWFP2 Rear Door Fan Kit, and power via PD-815SC or PDT vertical power strips.
How much weight can this rolling rack hold?
The PTRK-2126 has a rated weight capacity of 500 lbs (226.8 kg) with a fully welded steel frame.
What is the difference between this and the other PTRK models?
This SKU is a 21 RU model; other versions in the PTRK series offer different rack unit counts such as 14 RU or 27 RU.
Which documents are available for submittals?
Installers can access the PTRK Series Portable Rack A&E Specification Sheet or the 3 Part Specification docx for technical submittals.
