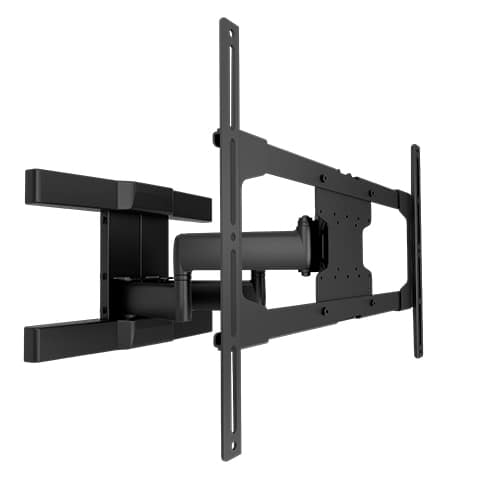

ODMLA25 Articulating Outdoor Wall Mount
Articulating outdoor wall mount for 32" - 80" displays, 150 lbs capacity, with tilt, swivel, and extension adjustability
The Chief ODMLA25 Articulating Outdoor Wall Mount is engineered to support all-weather outdoor installations, providing full motion to optimize viewing angles from multiple positions. This mount is designed for outdoor digital signage, outdoor living spaces, and humid indoor environments. It features a weatherproof construction that includes a protective outdoor-rated finish and stainless-steel hardware to withstand the elements. The ODMLA25 supports a variety of displays, with a weight capacity of 150 lbs (68 kg) and a VESA mounting pattern range of 75 x 75mm to 709 x 444mm. For installations on a bare 8" concrete wall, installers may use 5/16 x 3" Buildex® Tapcon® anchors with Blue Climaseal® coating (not included) instead of the provided lag bolts (D). The mount offers significant adjustability, including extension, swivel, and a tilt range of +15° / -15°, making it a versatile solution for complex outdoor sightlines.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.88 in (12.4 cm) |
| Height | 18.5 in (47 cm) |
| Minimum Depth | 4.88 in (12.4 cm) |
| Overall Dimensions | 18.5" x 29.45" x 4.88" (470 x 748 x 124 mm) |
| Shipping Weight | 42 lbs (19.1 kg) |
| Typical Screen Size | 32" - 80" (813mm - 2032mm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 29.45 in (74.8 cm) |
All other specifications 10
| Adjustability | Extension, Swivel, Tilt |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Outdoor Use |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872168258 |
| VESA Mounting Pattern | 75 x 75mm - 709 x 444mm |
Resources
You'll need these with it
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
CMK10 CordMate Cord Organizer Kit
CMK10$25.59
SRSR Series Slide out enclosure for C5 Series Credenzas
C5D-SRSR12$1,008.90
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
1 RU Mounting Rackshelf
UTR1$58.50
AV Bridge CONFERENCE
999-8215-000$3,330.00
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
1U Vented Shelf; Fits all Component Series AV racks
CASH21-B1
Verified fitment
Questions about this part
Will the ODMLA25 fit my display?
The mount is verified against 7,559 display models from 287 manufacturers, including Samsung 400CX, LG 100QNED85AU, Panasonic 55VW3KD, and TCL 100E77NQTUK-PRO.
What do I need to install this on a concrete wall?
For installations on a bare 8" concrete wall, you will need 5/16 x 3" Buildex® Tapcon® anchors with Blue Climaseal® coating, which are not included.
What is the weight capacity and adjustability of the ODMLA25?
This mount has a 150 lbs (68 kg) capacity and provides extension, swivel, and tilt adjustability of +15° / -15°.
What accessories are compatible with this mount?
Compatible accessories include the FHBUL Impact™ Series Universal VESA Adapter Bracket and the CMK10 CordMate Cord Organizer Kit.
Which documents are available for submittals?
Technical drawings, CAD drawings (dwg), Revit models (rfa), and the installation manual are all available for professional submittals.
