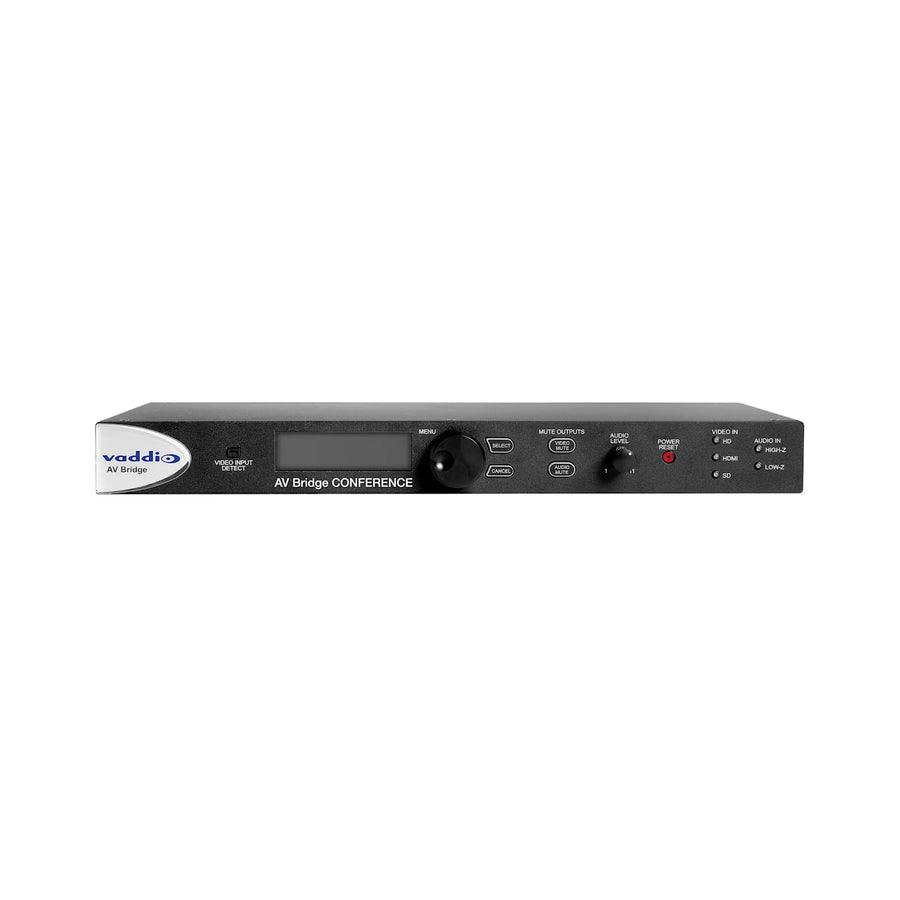

AV Bridge CONFERENCE
HD encoder for room-based UC applications, supporting IP or USB streaming with 2-way analog audio and AEC.
The Vaddio AV Bridge CONFERENCE is a room-based HD media streaming solution designed to bridge a room's analog audio and video into a computer (PC or Mac) for UC applications. This unit acts as an HD encoder that supports both USB streaming and IP streaming. When used via USB, the device utilizes standard UVC and UAC drivers with MJPEG and UAC, which eliminates the need to install custom software drivers on the host PC. For IP streaming, it uses RTSP or HLS (Apple's variant on HTTP streaming) and encodes H.264 video with AAC audio. This appliance features a flexible A/V interface that accepts a variety of video input resolutions, from standard definition composite video (480i/NTSC and 576i/PAL) up to HD 1080p/60 via HDMI and YPbPr, as well as wide-screen VESA type PC resolutions (RGBHV or DVI). The device provides 2-way analog audio, allowing the near-end audio to be sent to the far-end and returning the far-end audio to a professional mixer with Acoustic Echo Cancellation (AEC). It is a TAA compliant solution that integrates with Vaddio HD cameras, presentation systems, video mixing consoles, and other professional audio products. Control is managed through an embedded web server, a built-in browser-based user interface for remote control, or via the front panel menu system. Physical control methods include RS232, Telnet, and USB.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7 in (17.8 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.14 lbs (1.4 kg) |
| Shipping Dimensions | 22" x 13" x 7" (558.8 x 330.2 x 177.8 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Width | 18.93 in (48.1 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 17
| Bridged Signal | Audio and Video |
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | RS232TelnetUSB |
| Input Ports | CompositeHD YPbPrHDMILine Level AudioUSB 2.0 |
| OneLINK Compatibility | No |
| Output Ports | AudioUSB 2.0 |
| Power Cord | US Cord |
| Power Supply | 18VDC2.75A |
| Power Type | Local Power |
| Quick-Connect Compatibility | No |
| Special Features | AECAudio IOIP Streaming |
| TAA Compliant | Yes |
| UPC | 840077501655 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
Will the Vaddio AV Bridge CONFERENCE work with my existing UC software?
Yes, the device uses standard UVC and UAC drivers to minimize interoperability issues when connecting to a Host PC via USB for UC applications.
Does this device support 1080p video resolution?
The AV Bridge CONFERENCE supports high definition encoding up to 1080p/60 via HDMI and YPbPr inputs, as well as VESA type PC resolutions.
How do I control the AV Bridge CONFERENCE remotely?
You can control the unit through a built-in web server via the Ethernet port, or by using RS232, Telnet, or USB control methods.
Is the Vaddio AV Bridge CONFERENCE TAA compliant?
Yes, this model is TAA compliant and carries FCC and CE certifications.
What is the difference between this and the standard AV Bridge?
The CONFERENCE model is an HD Encoder with 2-way analog audio and AEC, whereas the standard AV Bridge (999-8210-000) is a different version in the series.
