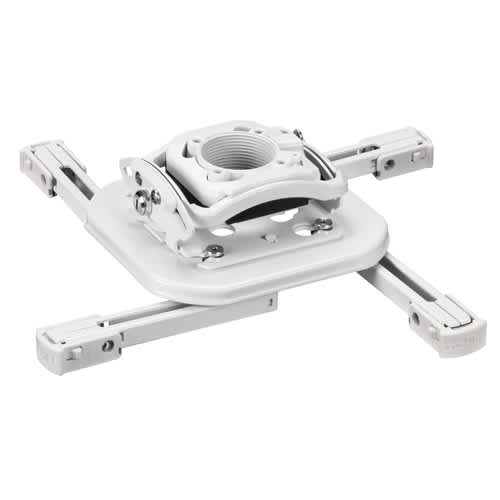

Mini Elite Universal Projector Mount (Lock B)-RSMBUW
White ceiling projector mount for smaller models, featuring independent micro-adjustable pitch, roll, and yaw with a 25 lbs capacity
The Chief RSMBUW is a miniature version of the RPA Elite ceiling projector mount series, specifically scaled for smaller projector models. This white-finish ceiling application mount provides a compact footprint while maintaining the high-level adjustability required for precision professional installations. It is verified against 6,638 display models from 108 manufacturers, including EPSON BrightLink 1485Fi, OPTOMA 4K400x, and PANASONIC PT-AE100E. The mount supports a weight capacity of 25 lbs (11.3 kg) and features independent roll, pitch, and yaw adjustments. To achieve a precise image, the pitch can be adjusted by 15°. For installers requiring specific heights or structural attachments, this unit is compatible with accessories such as the CMS440P2 SpeedConnect Kit, CMS380 Truss Clamps, and CMA360 I-Beam Clamps. This UL Listed solution is ideal for educational or corporate environments where a discreet, low-profile mounting solution is necessary for smaller-format projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10" x 10" x 4"(254 x 254 x 101.6 mm) |
| Shipping Weight | 5.4 lbs (2.5 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 15° |
| Application | Ceiling |
| Color | White |
| Interface Type | Universal |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872119878 |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS048W, 48 Inch Fixed Extension Column, Pole
CMS048W$80.00
Decorative Ceiling Tile Ring - CPA640W
CPA640W$17.60
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
Verified fitment
Questions about this part
Will the RSMBUW fit my projector?
This mount is verified against 6,638 models from 108 manufacturers, including EPSON BrightLink 430W, OPTOMA DH1009, and NEC HT 1100.
How much weight can this mount support?
The RSMBUW has a maximum weight capacity of 25 lbs (11.3 kg).
What mounting hardware or accessories are needed for installation?
Depending on the installation environment, you may need accessories like the CMA165 Internal Joist Ceiling Kit or a CMS440P2 SpeedConnect Kit.
Can I adjust the projector angle once it is mounted?
Yes, the mount features micro-adjustable independent roll, pitch, and yaw, with the pitch adjusting up to 15°.
What documents are available for submittals?
Technical drawings are available in both PDF and DWG formats, and the RSM Installation Manual is provided for field setup.
