Interface Extender
Interface extender for ConnexSys™ Video Wall systems, supporting 800 x 400mm VESA patterns

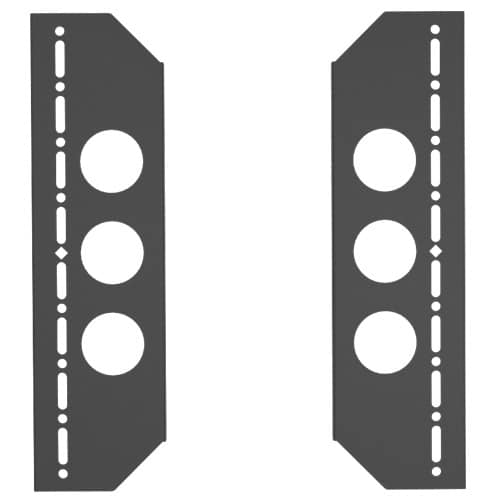

The Chief FHB5050 is an interface extender designed to increase the compatibility of the ConnexSys™ Video Wall Mounting System. This two-piece bracket set allows installers to accommodate displays with an 800 x 400mm VESA mounting pattern within a ConnexSys™ installation. Each side of the bracket measures 17" x 4.71" x 0.63" (432 x 120 x 16 mm). These black interface brackets feature a 150 lbs (68 kg) weight capacity and are TAA compliant. The system is built for a simple 3-step installation process and is rated for outdoor use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.63 in (1.6 cm) |
| Height | 17 in (43.2 cm) |
| Shipping Weight | 4.36 lbs (2 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 4.71 in (12 cm) |
| Accessory Type | Interface Brackets |
| Color | Black |
| Solution Type | Universal and Custom |
All other specifications 5
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| UPC | 841872165110 |
| VESA Mounting Pattern | 800 x 400mm |
| Certifications | TAA |
Resources
Questions about this part
Will the FHB5050 work with my ConnexSys™ video wall?
Yes, the FHB5050 is designed specifically to increase the compatibility of the ConnexSys™ Video Wall Mounting System.
What VESA pattern does the FHB5050 support?
This interface extender accommodates 800 x 400mm mounting patterns.
How much weight can each FHB5050 bracket hold?
The interface extender has a weight capacity of 150 lbs (68 kg).
Is this accessory suitable for outdoor environments?
Yes, the FHB5050 features special ratings for outdoor use.
Which documents should I use for submittals?
For technical submittals, you can refer to the FHB5050 Technical Drawing or the FHB5050 CAD Drawing available in the resources.
