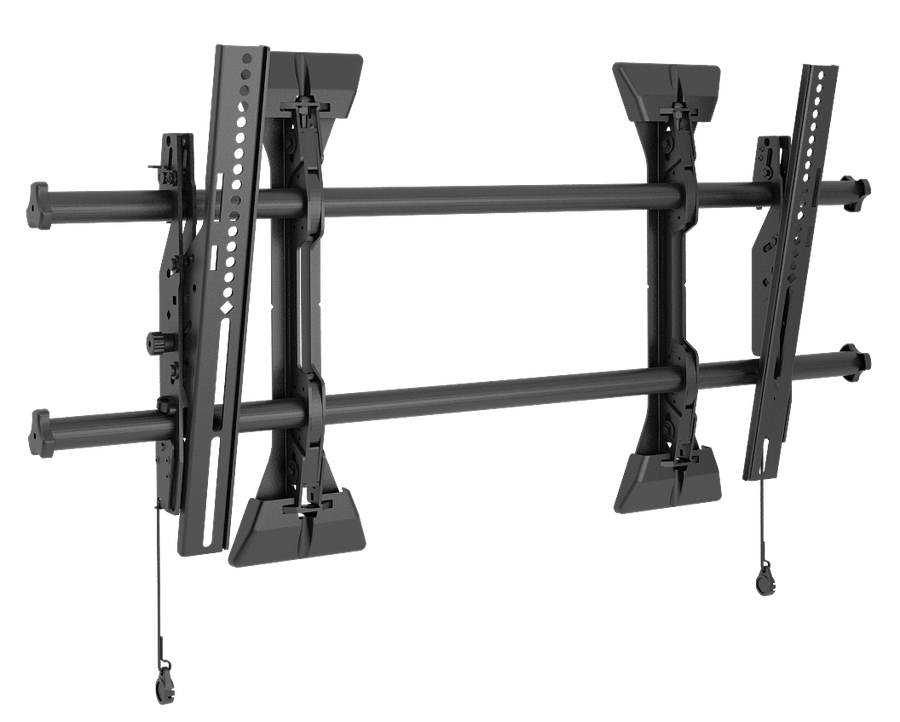

Large Fusion® Micro-Adjustable Tilt Wall Mount, TAA Compliant
Large display wall tilt mount for 42"- 86" screens, 200 lbs capacity, featuring micro-adjustable tilt and lateral shift
The Chief LTM1U-G is a high-performance wall tilt mount engineered for large-format displays in professional environments such as corporate offices, digital signage, and hospitality settings. Designed to address common installation challenges, this Fusion® series mount provides a low-profile solution with enhanced stability and faster installation through ClickConnect Latching. It is specifically built to handle the demands of large-screen deployment, supporting displays from 42" to 86" (1067 to 2184 mm) with a weight capacity of 200 lbs (90.7 kg). This mount offers precise positioning through micro-adjustable tilt ranging from +2° to -12° and manual height adjustment of 1 in (25.4 mm). Installers can achieve exact screen alignment using lateral shift and ControlZone leveling adjustments. The mount is TAA compliant and features UL Listing and OSHPD pre-approval documentation for specialized projects. For maximum cable management flexibility, this mount is compatible with various Chief accessories, including the FCA820 Center Camera Shelf and the PAC526FC In-Wall Storage Box.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 17 in (43.2 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Overall Dimensions | 17" x 34.75" x 2" (432 x 883 x 51 mm) |
| Shipping Weight | 22 lbs (10 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
All other specifications 14
| Wall Stud Compatibility | 16" - 32" (406mm - 813mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 34.75 in (88.3 cm) |
| Adjustability | Height AdjustableLateral ShiftMicro-AdjustableTilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +2° / -12° |
| UPC | 841872165523 |
| VESA Mounting Pattern | 100 x 100mm - 878 x 500mm |
| Certifications | OSHPDTAAUL Listed |
Resources
You'll need these with it
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60

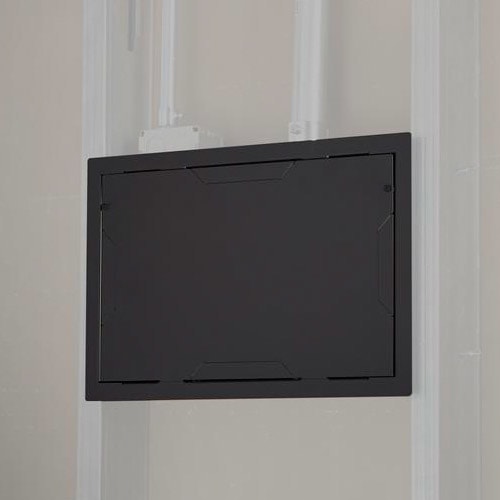

PAC525FC, In-Wall Storage Box with Flange and Cover
PAC525FC$140.00
Proximity® In-wall Storage Box with 2 Receptacle Filter & Surge-PAC526FWP2
PAC526FWP2$397.60
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
Fusion® Pull Out Accessory
FCAV1U$412.00

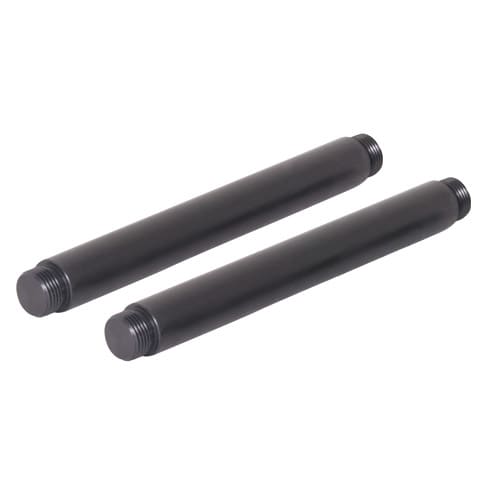

FCK008, Fusion® Connector Kit - 8 Inch
FCK008$50.40

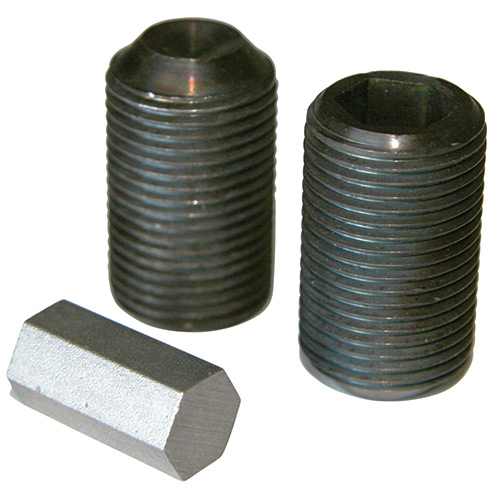

FCK000, Fusion® Connector Union
FCK000$30.40

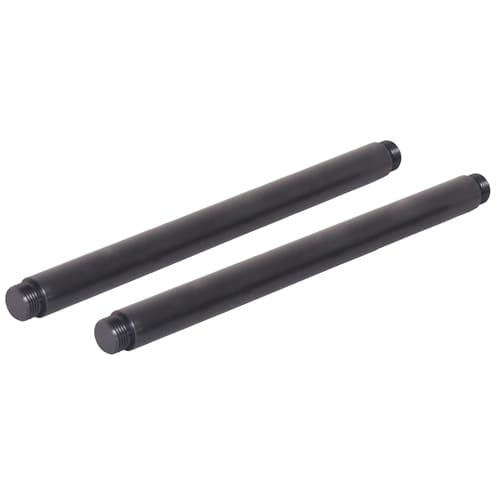

FCK016, Fusion® Connector Kit - 16 Inch
FCK016$63.20
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Verified fitment
Questions about this part
Will the LTM1U-G work with my specific display?
The LTM1U-G is verified against 13,167 display models from 373 manufacturers, including Samsung 400BX, Sony 43BZ35P, LG 100QNED8, and Panasonic 55VW3KD.
What mounting requirements do I need for the wall?
This mount is designed for wall applications and is compatible with wall stud spacing between 16" and 32" (406 to 813 mm).
What accessories are needed to complete the installation?
While the mount includes the primary structure, installers may need accessories like the FCA820 Center Camera Shelf or the PAC526FC In-Wall Storage Box for a complete integrated setup.
How much can I tilt and shift the screen?
The LTM1U-G provides a tilt range of +2° to -12° and includes micro-adjustment and lateral shift capabilities for precise alignment.
Is this mount suitable for TAA compliant projects?
Yes, the LTM1U-G is TAA Compliant and carries UL Listing and OSHPD pre-approval status.
