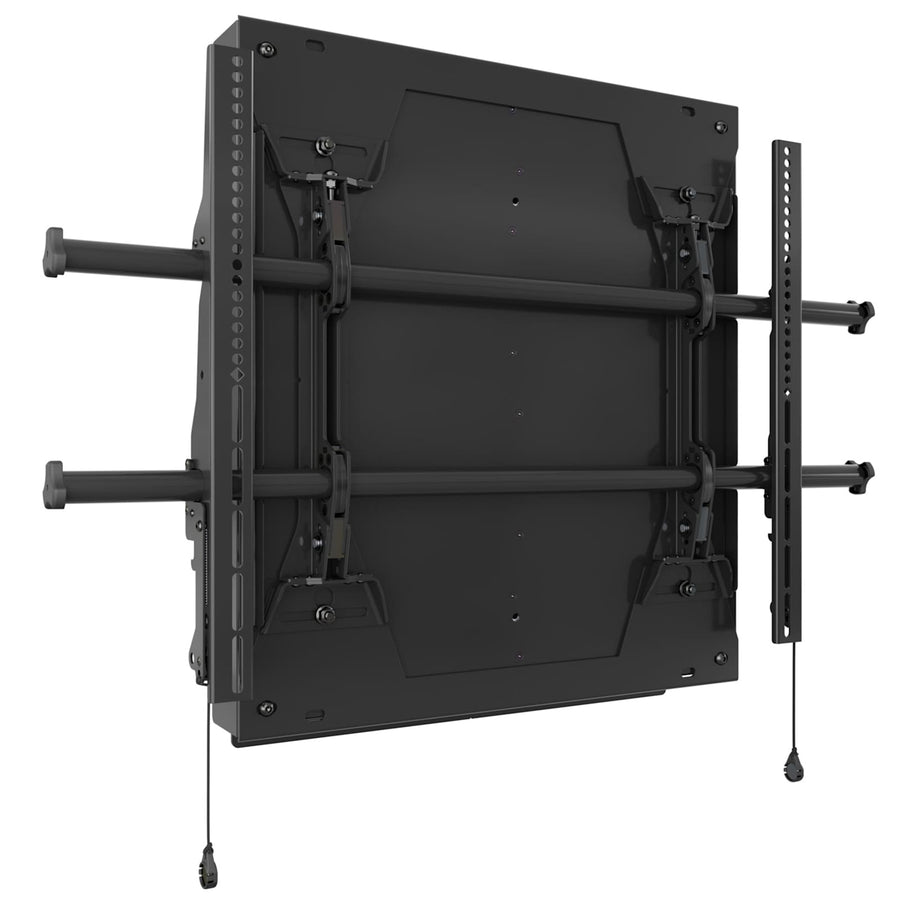

Large Fusion® Dynamic Height Adjustable Wall Mount
Height adjustable wall mount for large displays, featuring 15.75" of vertical travel and a 122-175 lbs weight capacity
The Chief LSD1U is a Large Fusion® Dynamic Height Adjustable Wall Mount designed to improve accessibility for interactive displays in classrooms and boardrooms. This mount provides 15.75" (400 mm) of vertical adjustment, allowing users to manually move the display up or down with ease. The integrated height assist system facilitates smooth, fast travel with minimal effort, and the internal spring system is tested for 60,000 cycles over 10 years of use. For installation, this unit is compatible with 16" (406mm) wall stud spacing. The mounting pattern accommodates VESA standards from 100 x 100mm to 800 x 500mm. To ensure a professional finish, this SKU ships fully assembled with the LSM1U mount. The design includes a built-in cable stand to maintain easy access to connections beneath the screen, and set screws maintain a rigid, stable, and secure installation throughout the life of the mount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.1 in (13 cm) |
| Dynamic Height Adjustment | 15.75” (400 mm) |
| Height | 25 in (63.5 cm) |
| Overall Dimensions | 25" x 34.8" x 5.1" (635 x 884 x 130 mm) |
| Shipping Weight | 81 lbs (36.7 kg) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 122 - 175 lbs (55.4 - 79.4 kg) |
| Width | 34.8 in (88.4 cm) |
All other specifications 11
| Adjustability | Height AdjustableMicro-Adjustable |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Height Assist |
| TAA Compliant | Yes |
| UPC | 841872168166 |
| VESA Mounting Pattern | 100 x 100mm - 800 x 500mm |
| Certifications | TAAUL Listed |
