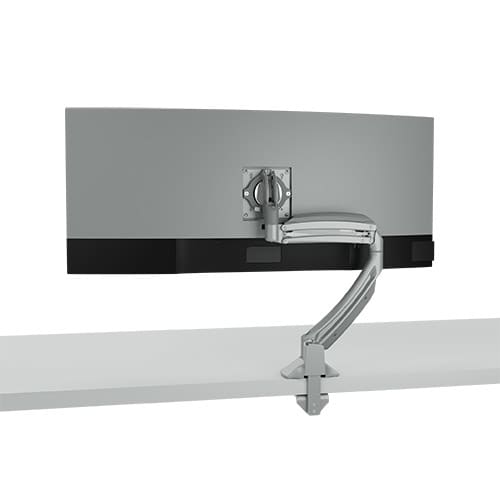

Kontour™ K1D Dynamic Desk Clamp Mount, 1 Monitor-K1D120S
Single monitor desk clamp mount for 10" - 38" displays, 5 - 25 lbs capacity, with dynamic height adjustment and extreme tilt
The Chief K1D120S is a single-monitor desk clamp mount designed to provide ergonomic flexibility in office, healthcare, or home environments. This Kontour™ K1D series mount uses gas-spring technology to provide 13" (330 mm) of dynamic height adjustment, allowing users to move their display effortlessly between sitting and standing positions. The integrated Centris™ Extreme Tilt technology enables a tilt range of +75° to -10°, facilitating optimal viewing angles for a variety of workstation setups. This silver-finished mount is TAA compliant and features a forged aluminum construction. It is engineered to handle a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg) per monitor, making it suitable for many modern displays, including All-in-One systems. The clamp mechanism accommodates desktop thicknesses ranging from 0.5" to 2.5" (13mm - 63 mm) and provides a minimum depth of 2.45" (6.2 cm) from the edge. For a professional installation, the mount includes tool-free cable management covers to maintain a clean workspace.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 20.6 in (52.3 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 12.83 lbs (5.8 kg) |
| Typical Screen Size | 10" - 38" (254mm - 965mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 14
| Color | Silver |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | No |
| Mounting Method | Desk Mount |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Extreme Tilt TechnologyHeight Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160160 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension-PWRUB
PWRUB$649.60

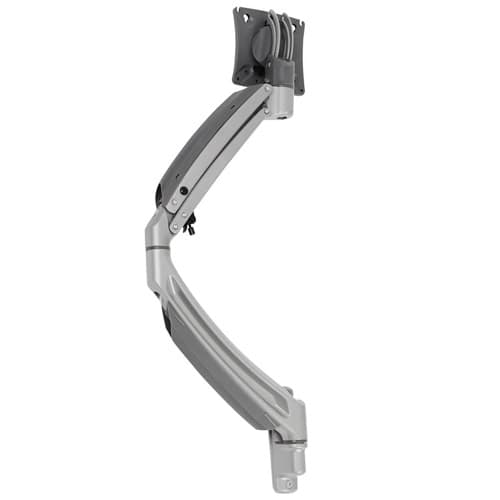

Kontour™ KRA221 K1C Expansion Arm Kit
KRA221S$228.00
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
Verified fitment
Questions about this part
Will the K1D120S fit my specific monitor?
This mount is verified against 3,131 display models from 190 manufacturers, including Samsung, Dell, Sony, LG Electronics, NEC, and Philips.
What are the installation requirements for the desk surface?
The clamp attaches to desktops with a thickness between 0.5" and 2.5" (13mm - 63 mm) and requires a minimum depth of 2.45" (6.2 cm).
Can this mount support heavier All-in-One displays?
The K1D120S has a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg) per monitor, which can support many All-in-One or Apple monitors without needing a heavy-duty arm.
How much height and tilt adjustment is available?
It provides 13" (330 mm) of dynamic height adjustment and extreme tilt from +75° to -10° for ergonomic positioning.
Does this mount require a specific installation kit?
While it clamps to the edge of a desk, you can also install it through a standard grommet hole or a bolt hole using the included kit.
