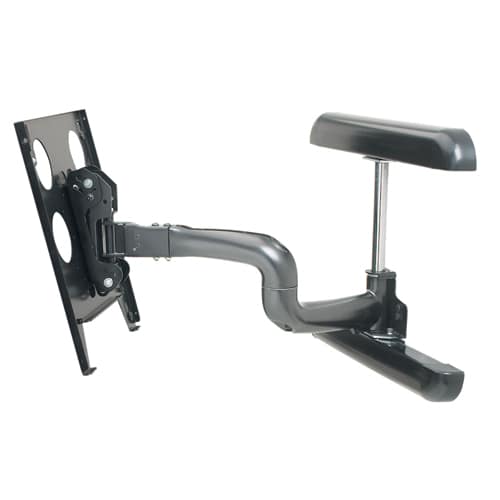

Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
Large flat panel swing arm wall mount for 32"–65" displays with 125 lbs capacity and 24.88" extension
The Chief PWR2000B is a large flat panel swing arm wall mount designed for displays ranging from 32" to 65". This black finish mount provides a 24.88" extension when fully extended, while maintaining a low profile in its home position. It is engineered for versatile installation, supporting both landscape and portrait orientations. For installers requiring screen rotation, the PAC400 P-Series Rotation Adapter can be utilized to rotate the display without removing it from the mount. This model features integrated 6" lateral shift (shipping shifted 2.5" to the left) and Centris Technology for fingertip tilt adjustments of +5° / -15°. The Q-Latch Mounting System secures the panel with a latching flag to ensure a tight fit against the wall in the home position. For cable management, the integrated CableTrac System allows for efficient routing. This TAA compliant mount requires the purchase of a separate interface bracket, as the interface is not included. It is compatible with 16" wall stud spacing and supports VESA patterns from 200 x 200mm up to 862 x 517mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 18 in (45.7 cm) |
| Minimum Depth | 3.38 in (8.6 cm) |
| Shipping Dimensions | 35" x 23.75" x 7.25" (889 x 603.3 x 184.2 mm) |
| Shipping Weight | 37.18 lbs (16.9 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
All other specifications 13
| Width | 23.6 in (59.9 cm) |
| Adjustability | ExtensionLateral ShiftSwivelTilt |
| Application | Wall |
| Color | Black |
| Interface Included | No |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Custom |
| TAA Compliant | Yes |
| Tilt | +5° / -15° |
| UPC | 841872046419 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60

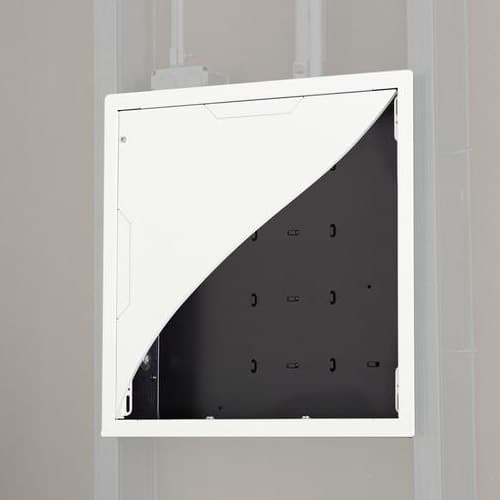

PAC526, Large In-Wall Storage Box
PAC526$116.80
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60

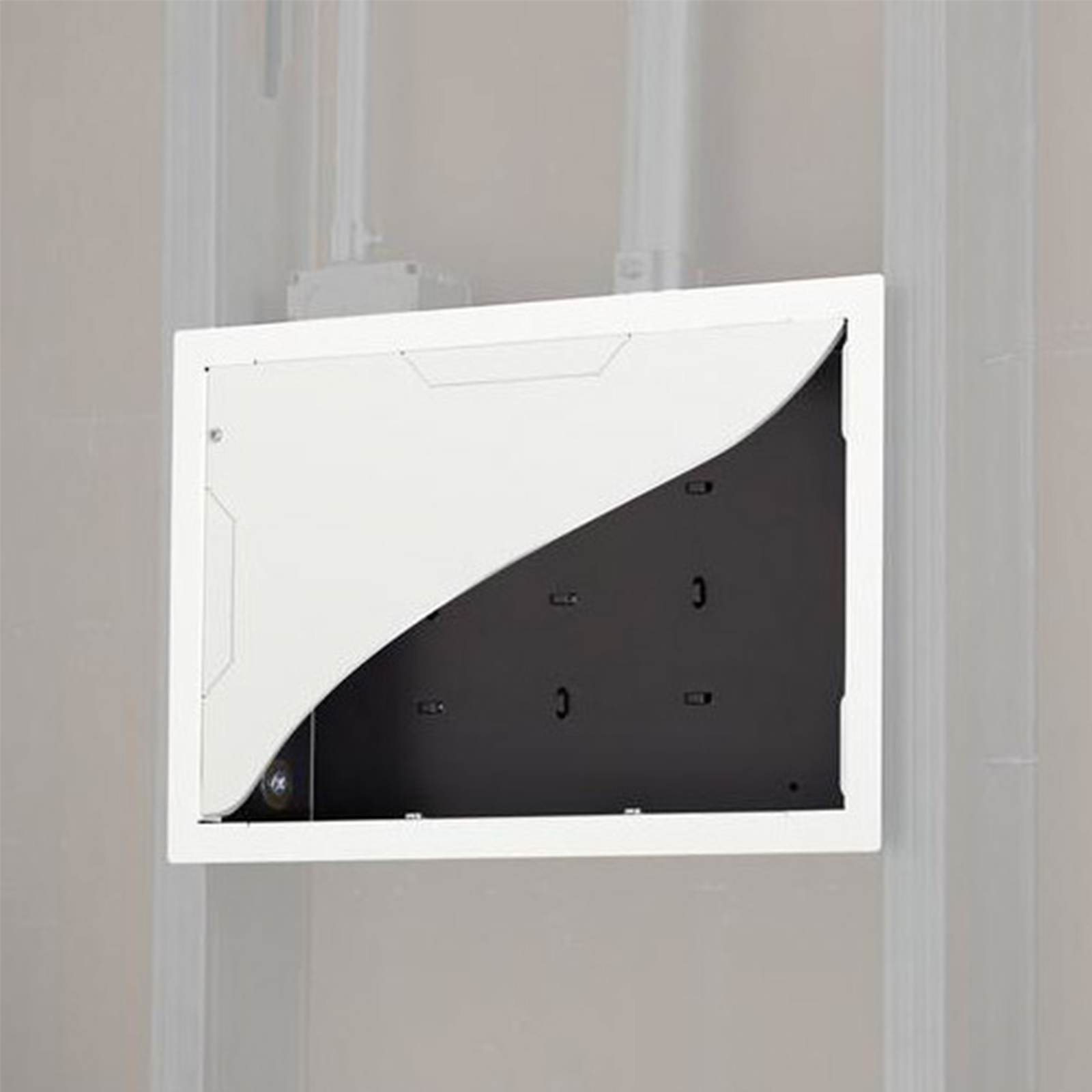

PAC525, In-Wall Storage Box
PAC525$79.20
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
Verified fitment
Questions about this part
Will the PWR2000B fit my display?
The PWR2000B is verified against 3,974 display models from 149 manufacturers, including Sony BVMX300, Samsung 320MX, and LG 32LC3R.
What else do I need to complete the installation?
This SKU does not include an interface bracket. You will need to purchase a P-Series Universal Interface Bracket, such as the PSBUB, to complete the assembly.
Can I rotate the display between portrait and landscape?
Yes, the mount supports both orientations. You can use the PAC400 P-Series Rotation Adapter to rotate the screen without having to remove it from the mount.
What are the mounting requirements for the wall?
This mount is designed for wall applications and is compatible with 16" wall stud spacing.
How much can I tilt and swivel the screen?
The mount provides +5° / -15° tilt adjustment and can swivel up to 90° left or right depending on the specific screen size being used.
