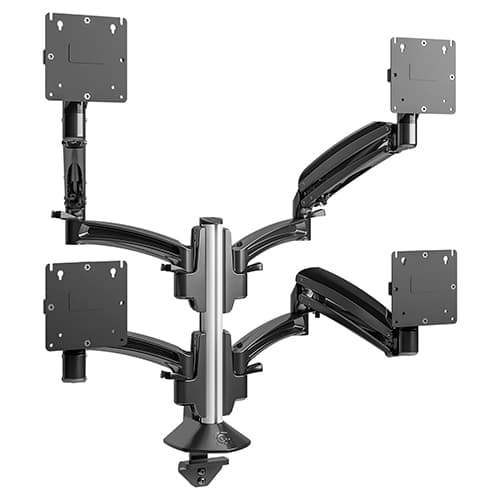

Kontour™ K1C Quad 2x2 Monitor Dynamic Column Mount-K1C420B
Quad monitor mount for 10–36" displays, features gas-spring dynamic height adjustment and Centris Extreme Tilt technology
The Chief K1C420B is a Kontour™ K1C quad monitor mount designed for desktop and tabletop workstations. This system supports four displays within a 10" to 36" (254 mm to 914 mm) size range, with a weight capacity of 5-20 lbs (2.3 - 9.07 kg) per arm. It utilizes gas-spring technology to provide 13" (330 mm) of smooth, dynamic height adjustment, while the column provides an additional 7" (178 mm) of manual height adjustment for a total adjustment range of 20" (508 mm). The patented Centris™ Extreme Tilt technology allows for effortless positioning with tilt ranges of +75° to -10°. Users can install this unit by clamping it to the edge of a desk, through a standard grommet hole, or using a through-bolt kit. The black finish and integrated tool storage in the base support a clean, professional workspace, while tool-free cable management covers maintain a streamlined appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 25.5 in (64.8 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 36.5" x 18.25" x 12.75" (927.1 x 463.6 x 323.9 mm) |
| Shipping Weight | 33 lbs (15 kg) |
| Typical Screen Size | 10 - 36" (254mm - 914mm) |
| Weight Capacity | 5-20lbs (2.3 - 9.07 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 11
| Color | Black |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 4 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | No |
| Tilt | +75° / -10° |
| UPC | 841872171364 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Kontour™ KRA226 Center-of-Table Grommet Plate, Black
KRA226B$28.80
Kontour™ KRA219 K1 and K2 Narrow-Gap Table Clamp Kit
KRA219B$34.40
Thin Client PC Mounting Accessory, Column Mount
KRA232B$75.20
50x50mm VESA Interface Bracket
FSB4073$47.20
Verified fitment
Questions about this part
Will this mount fit my specific monitors?
The K1C420B is verified against 646 display models from 43 manufacturers, including Samsung C24F392, LG 22BL450YB, Dell AW2724HF, and Lenovo 11GSPAR1US.
What is the maximum weight and height adjustment?
Each arm supports a weight capacity of 5-20 lbs (2.3 - 9.07 kg) and the system provides a total 20" (508 mm) height adjustment range.
What mounting hardware is required for desk installation?
This unit can be installed using a desk edge clamp, a standard grommet hole, or a through-bolt kit, allowing for various tabletop configurations.
Does this mount support laptop or specialty interfaces?
Yes, it is compatible with several accessories, such as the KRA300B Kontour™ Laptop Tray and various FSB interface brackets for specific monitor models.
Which documentation is available for submittals?
Technical submittals can be supported using the K1C420 Technical Drawing (PDF), the Kontour Arrays Spec Sheet, or the K1C Series Installation Manual.
