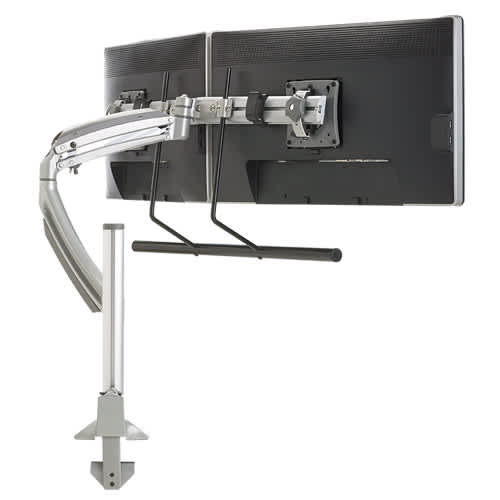

Kontour™ K1C Dynamic Column Mount, Dual Monitor Array - K1C22HS
Dual monitor column mount for 10"-24" displays, featuring dynamic gas-spring height adjustment and Centris™ Extreme Tilt
The Chief K1C22HS Kontour™ K1C Dynamic Height-Adjustable Column Mount is a workstation solution designed for dual 10"-24" (254mm - 609.6 mm) diagonal monitors. This 2x1 array configuration allows for both landscape and portrait orientations, providing significant ergonomic flexibility in office, healthcare, or home environments. The system features gas-spring technology that enables 13" (330 mm) of dynamic height adjustment, plus an additional 7" (178 mm) of manual height adjustment on the column, offering a total height adjustment range of 20" (508 mm). For precise viewing, the integrated Centris™ Extreme Tilt technology allows for effortless repositioning with a tilt range of +75° to -10°. This TAA-compliant silver mount is designed for desk or tabletop application and accommodates VESA mounting patterns of 75 x 75mm and 100 x 100mm. It supports a weight capacity of 2 - 9 lbs (0.9 - 4.1 kg) per display and can be secured via a desk edge clamp, a standard grommet hole, or a through-bolt using the included kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Width Range | Up to 24.9" |
| Maximum Extension | 23.1 in (58.7 cm) |
| Minimum Depth | 6.2 in (15.8 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.76 lbs (9.4 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 14
| Application | Desk-Tabletop |
| Array Configuration | 2x1 |
| Color | Silver |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872160122 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Thin Client PC Mounting Accessory, Column Mount
KRA232B$75.20
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
KX K1 Monitor Interface Plate, Silver
KRA243S$32.00
Kontour™ KRA226 Center-of-Table Grommet Plate, Silver
KRA226S$28.80
Verified fitment
Questions about this part
Will the K1C22HS fit my specific monitors?
The K1C22HS is verified for use with 1,983 display models from 59 manufacturers, including Samsung 150T, Dell 1900FP, and LG 19CNV42KB.
What do I need to purchase to mount this to my desk?
The unit includes a kit for edge clamping, grommet, or through-bolt mounting; however, specific accessories like the KRA226S Center-of-Table Grommet Plate may be required for certain setups.
How much height adjustment is actually possible?
You can achieve a total 20" (508 mm) height adjustment range, utilizing 13" (330 mm) of dynamic gas-spring motion and 7" (178 mm) of manual column adjustment.
Does this mount support VESA mounting?
Yes, this mount is compatible with 75 x 75mm and 100 x 100mm VESA mounting patterns.
Is the K1C22HS TAA compliant?
Yes, this specific SKU is listed as TAA compliant for government and professional procurement requirements.
