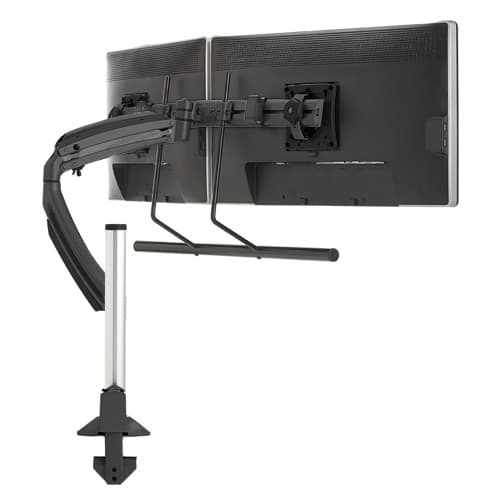

Kontour™ K1C Dynamic Column Mount, Dual Monitor Array - K1C22HB
Dual monitor workstation mount for 10"–24" displays, featuring dynamic gas-spring height adjustment and 2x1 array configuration
The Chief K1C22HB is a Kontour™ K1C Dynamic Height-Adjustable Column Mount designed for 2x1 dual monitor arrays. This workstation mount supports two displays with typical screen sizes ranging from 10" to 24" diagonals and a weight capacity of 2–9 lbs (0.9–4.1 kg) per monitor. It provides a versatile ergonomic solution through a combination of 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology and an additional 7" (178 mm) of manual height adjustment on the column. Total height adjustment range is 20" (508 mm) from the desk surface. Users can easily adjust their view with tilt functionality of +/- 10° and the patented Centris™ Extreme Tilt technology for effortless positioning. For installation, the unit can be clamped to a desk edge, mounted through a standard grommet hole, or through a bolt hole using the included kit. The 2x1 array configuration supports both landscape and portrait orientations. This TAA-compliant solution includes tool-free cable management covers to maintain a professional workspace appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 23.12 in (58.7 cm) |
| Minimum Depth | 6.16 in (15.7 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.76 lbs (9.4 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 13
| Array Configuration | 2x1 |
| Color | Black |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872160115 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
KX K1 Monitor Interface Plate, Black
KRA243B$32.00
Kontour™ KRA226 Center-of-Table Grommet Plate, Black
KRA226B$28.80
Kontour™ KRA219 K1 and K2 Narrow-Gap Table Clamp Kit
KRA219B$34.40
Thin Client PC Mounting Accessory, Column Mount
KRA232B$75.20
50x50mm VESA Interface Bracket
FSB4073$47.20
Verified fitment
Questions about this part
Will the K1C22HB fit my specific monitors?
This mount is verified for 1,990 display models from 61 manufacturers, including LG 19CNT42KB, Samsung 150MP, Dell 1704FPT, and ViewSonic EP1020R.
What is required to install this mount on my desk?
The K1C22HB can be installed via edge clamping, a standard grommet hole, or a bolt hole; the necessary kit for these methods is included with the unit.
Does this mount support portrait orientation?
Yes, the K1C22HB supports both landscape and portrait orientations for the dual monitor array.
Can I adjust the height while the displays are in use?
Yes, the gas-spring technology allows for 13" (330 mm) of dynamic height adjustment, while the column provides an additional 7" (178 mm) of manual adjustment.
What VESA patterns are compatible with this mount?
The mounting interface supports VESA patterns of 75 x 75mm and 100 x 100mm.
