Kontour™ K1C Dynamic Column Mount, 2 Monitors, TAA-Compliant
Dynamic height-adjustable column mount for two 10"–30" displays, featuring gas-spring technology and 5–25 lbs per arm capacity

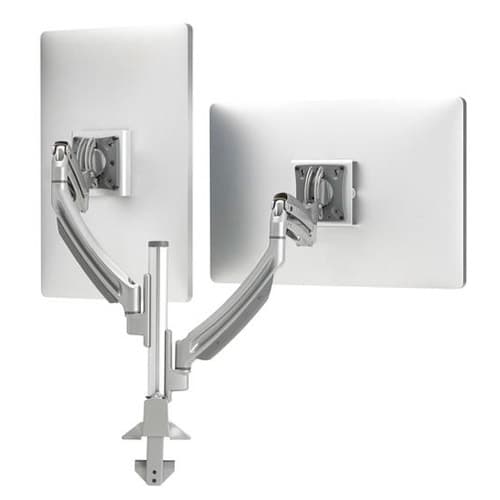

The Chief K1C220S-G Kontour™ K1C Dynamic Height-Adjustable Column Mount provides ergonomic flexibility for dual-monitor workstations in office, healthcare, or home environments. This silver-finished mount is designed for two displays in a 2x1 array configuration, supporting screen sizes from 10" to 30" (254mm–762mm). Each arm supports a weight capacity of 5 to 25 lbs (2.3–11.3 kg), making it suitable for a variety of modern monitors without requiring heavy-duty hardware. This model features Centris™ Extreme Tilt technology, allowing for effortless fingertip positioning with a tilt range of +75° to -10°. Users can utilize 13" (330 mm) of dynamic height adjustment via smooth gas-spring technology, supplemented by an additional 7" (178 mm) of manual height adjustment on the column for a total height adjustment range of 20.6" (52.3 cm). Installation is streamlined through a 3-step quick-release monitor interface, and the base supports multiple mounting options: it can be clamped to the edge of a desk, installed through a standard grommet hole, or secured through a bolt hole using the included kit. For a professional appearance, the mount includes tool-free cable management covers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 20.6 in (52.3 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 18.7 lbs (8.5 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 13
| Array Configuration | 2x1 |
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872172187 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Laptop & Tablet Tray, Silver
KRA300S$88.00
Thin Client PC Mounting Accessory, Column Mount
KRA232B$75.20
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
KX K1 Monitor Interface Plate, Silver
KRA243S$32.00
Verified fitment
Questions about this part
Will the K1C220S-G fit my monitors?
It is verified for 5,619 display models across 143 manufacturers, including Samsung 150MP, LG 17LS5R, Philips 150B4AG, Dell 1801FP, NEC 1940CX, and Sharp 1T-C24FD2KF1FB.
How much weight can each monitor arm hold?
Each arm supports a weight capacity between 5 and 25 lbs (2.3–11.3 kg) for displays ranging from 10" to 30".
What mounting options are available for this workstation mount?
The base can be clamped to the edge of a desk, installed via a standard grommet hole, or secured through a bolt hole using the included kit.
What is the difference between this and the K1P series?
The K1C is a column mount, while the K1P series consists of Pole Mounts that offer extended manual height adjustment using Chief KTA pole accessories.
Which document should I use for installation and submittals?
The K1C Series Installation Manual is available in PDF format, and technical drawings are provided in both PDF and DWG formats.
