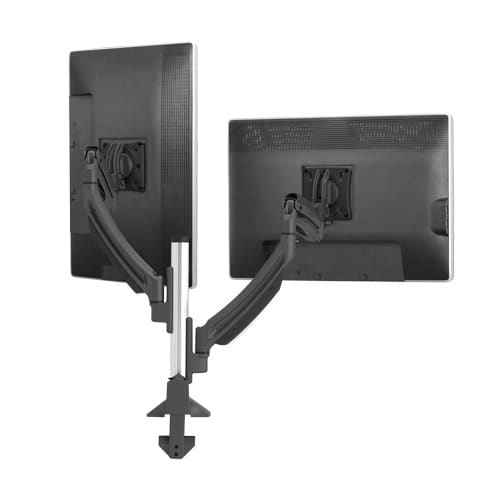

Kontour™ K1C Dynamic Column Mount, 2 Monitors-K1C220B
Dynamic height-adjustable workstation mount for two 10–32" monitors, featuring gas-spring technology and Centris™ Extreme Tilt
The Chief K1C220B is a dynamic height-adjustable column mount designed to hold two monitors in a 2x1 array. Optimized for office, healthcare, or home environments, this workstation mount provides significant ergonomic flexibility. It features 13" (330 mm) of dynamic height adjustment via smooth-motion gas-spring technology and an additional 7" (178 mm) of manual height adjustment on the column, totaling a 20.6" (52.3 cm) maximum extension. The integrated Centris™ Extreme Tilt technology allows for effortless positioning with +75° to -10° of tilt. This TAA-compliant mount is built with forged aluminum arms and supports displays from 10" to 32" (254mm - 813mm) with a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg) per arm. Installation is streamlined through a 3-step process with a quick-release monitor interface. The mount can be secured to a desk edge, through a standard grommet hole, or via a through-bolt using the included kit. The system includes tool-free cable management covers to maintain a clean workspace.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 20.6 in (52.3 cm) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 18.7 lbs (8.5 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 13
| Array Configuration | 2x1 |
| Color | Black |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height AssistMulti-Display |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160085 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Kontour™ KRA221B K1C Expansion Arm Kit
KRA221B$228.00
KX K1 Monitor Interface Plate, Black
KRA243B$32.00
Kontour™ KRA226 Center-of-Table Grommet Plate, Black
KRA226B$28.80
Kontour™ KRA219 K1 and K2 Narrow-Gap Table Clamp Kit
KRA219B$34.40
Verified fitment
Questions about this part
Will the K1C220B fit my monitors?
This mount is verified against 5,907 display models from 196 manufacturers, including Samsung 150MP, LG 15LA6R, and Dell 1704FPT. It supports displays from 10" to 32" with VESA patterns of 75 x 75mm and 100 x 100mm.
What accessories are needed to use this with a laptop?
To convert this mount for laptop use, you can add the Kontour™ KRA300B Laptop Tray Accessory from the compatible accessories list.
How much vertical adjustment can I achieve?
You get a total of 20.6" (52.3 cm) of maximum extension, combining 13" (330 mm) of gas-spring dynamic adjustment and 7" (178 mm) of manual column adjustment.
How is the K1C220B mounted to a desk?
The K1C220B can be installed using a desk edge clamp, through a standard grommet hole, or via a through-bolt using the kit included with the unit.
Does this mount support portrait orientation?
Yes, the K1C220B allows for both landscape and portrait orientations to suit your specific workstation needs.
