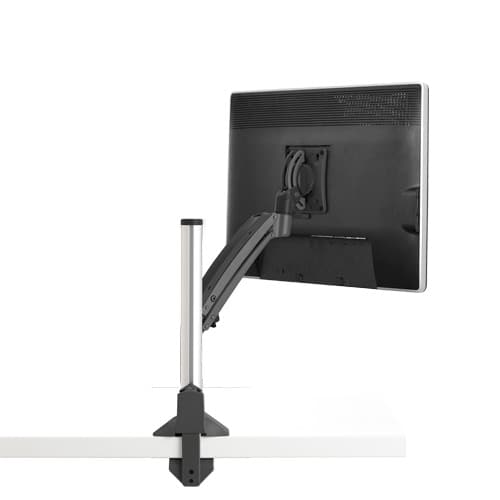

Kontour™ K1C Dynamic Column Mount, 1 Monitor-K1C110B
Single-monitor dynamic height-adjustable column mount with gas-spring technology and extreme tilt for ergonomic desk setups
The K1C110B is a Kontour K1C Dynamic Height-Adjustable Column Mount designed to improve ergonomics in offices, healthcare facilities, and home environments. This single-monitor solution supports displays weighing between 5 and 25 lbs (2.3 - 11.3 kg) using a VESA mounting pattern of 75 x 75mm or 100 x 100mm. It features smooth-motion gas-spring technology providing 13" (330 mm) of dynamic height adjustment, supplemented by an additional 7" (178 mm) of manual height adjustment on the column. The total height adjustment range for this unit is 20" (508 mm). With Centris Extreme Tilt technology, users can easily achieve +75° to -10° of tilt for optimal viewing angles. This TAA-compliant mount is available in black and can be installed via a desk edge clamp, a standard grommet hole, or a through-bolt using the included kit. It also supports both landscape and portrait orientations to suit various workspace requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 15.7 in (0.4 m) |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 11 lbs (5 kg) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Color | Black |
All other specifications 11
| Dual Array | No |
| Number of Arm Links | 1 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Extreme Tilt TechnologyHeight Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872159997 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)-PWR2000B
PWR2000B$493.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Kontour™ KRA224 Dual Monitor Array Handle Accessory
KRA224B$34.40
Kontour™ KRA221B K1C Expansion Arm Kit
KRA221B$228.00
Kontour™ KRA223 Dual Monitor Array Accessory, Black
KRA223B$144.00
KX K1 Monitor Interface Plate, Black
KRA243B$32.00
Verified fitment
Questions about this part
Will the K1C110B fit my monitor?
It is verified against 2,138 display models from 118 manufacturers, including Samsung C32F397FW, Sony KDL15G2000U, LG 23LS7D, and VIZIO D320B1, provided they fall within the 5-25 lbs weight range.
What do I need to install this on my desk?
This unit can be mounted using the included desk edge clamp, through a standard grommet hole, or via a through-bolt using the provided kit.
What is the difference between this and the K1C pole mount?
The K1C110B is a column mount with integrated gas-spring height adjustment, whereas the K1P series utilizes poles for manual height adjustment with KTA pole accessories.
Can I add a laptop tray to this mount?
Yes, the KRA300B Kontour Laptop Tray Accessory is compatible with this series.
How much tilt adjustment does the K1C110B provide?
The Centris Extreme Tilt technology allows for a tilt range of +75° to -10° to ensure optimal viewing comfort for sitting or standing positions.
