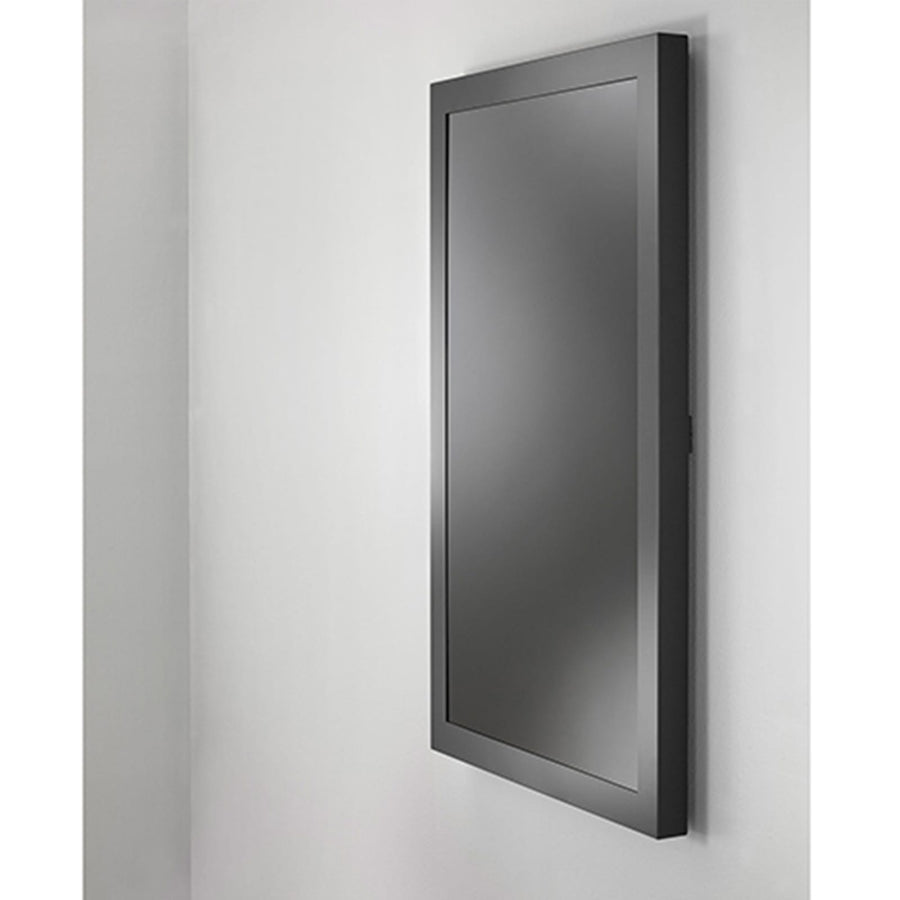

Impact™ On-Wall Kiosk with Protective Glass - Portrait 65 Inch Black
On-wall portrait kiosk for 65" displays, featuring 5/32" factory-bonded tempered glass and a depth-adjustable frame
The LW65UBPG is a Chief Impact™ Series On-Wall Kiosk designed for 65" (1651mm) displays in a portrait orientation. This black enclosure features an integrated 5/32" (4 mm) thick tempered glass that is factory bonded with industrial adhesives to protect LCD screens from impacts. The exterior frame is depth-adjustable with a range of 3-5" (76 - 127 mm) and supports a maximum screen thickness of 3.75 in (95.3 mm). For installations requiring a shallow profile, using displays less than 2.75" (70mm) in depth can result in a wall protrusion of 4" (101mm) or less. The design includes an integrated wall reveal to compensate for uneven surfaces, providing passive cooling and helping the frame remain plumb. This kiosk is TAA compliant and UL Listed. The enclosure features reversible hinges to assist during installation and service, and a closure door with an engagement latch that can be secured using tamperproof hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Maximum Screen Thickness | 3.75 in (95.3 mm) |
| Shipping Dimensions | 75" x 42" x 9.5" (190.5 x 106.7 x 24.1 cm) |
| Shipping Weight | 178 lbs (80.7 kg) |
| Typical Screen Size | 65" (1651mm) |
| Weight Capacity | Mount 140lbs_ Panel 5lbs |
| Accessory Type | Metal StudMounting BracketsProtective CoversThermal Management |
| Adjustability | FixedLateral Shift |
All other specifications 9
| Application | Floor-CartWall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Protective Glass | Yes |
| Special Features | Closure Door |
| TAA Compliant | Yes |
| UPC | 841872174273 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Impact™ Series On-Wall Kiosk Fan Kit, 30 CFM
PACFAN1$342.40
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Questions about this part
Will the LW65UBPG fit my 65 inch display?
This kiosk is designed for 65" (1651mm) displays. It supports a maximum screen thickness of 3.75 in (95.3 mm) and features a depth-adjustable frame ranging from 3-5" (76 - 127 mm).
How is the display serviced once the kiosk is mounted?
The enclosure uses reversible hinges to prevent obstructions during service and includes a closure door. The engagement latch can be secured with tamperproof hardware for enhanced security.
Can I install this kiosk on an uneven wall?
Yes, the design includes an integrated wall reveal that compensates for uneven walls to keep the frame plumb while providing passive cooling.
What is required for a shallow wall installation?
To achieve a wall protrusion of 4" (101mm) or less, you must use flat panels that are less than 2.75" (70mm) in depth.
Which documents are available for submittals?
Installers can access the Impact 65, 70 and 75 Installation Manual, technical drawings, or the CAD drawing via the resources tab for installation and submittal planning.
