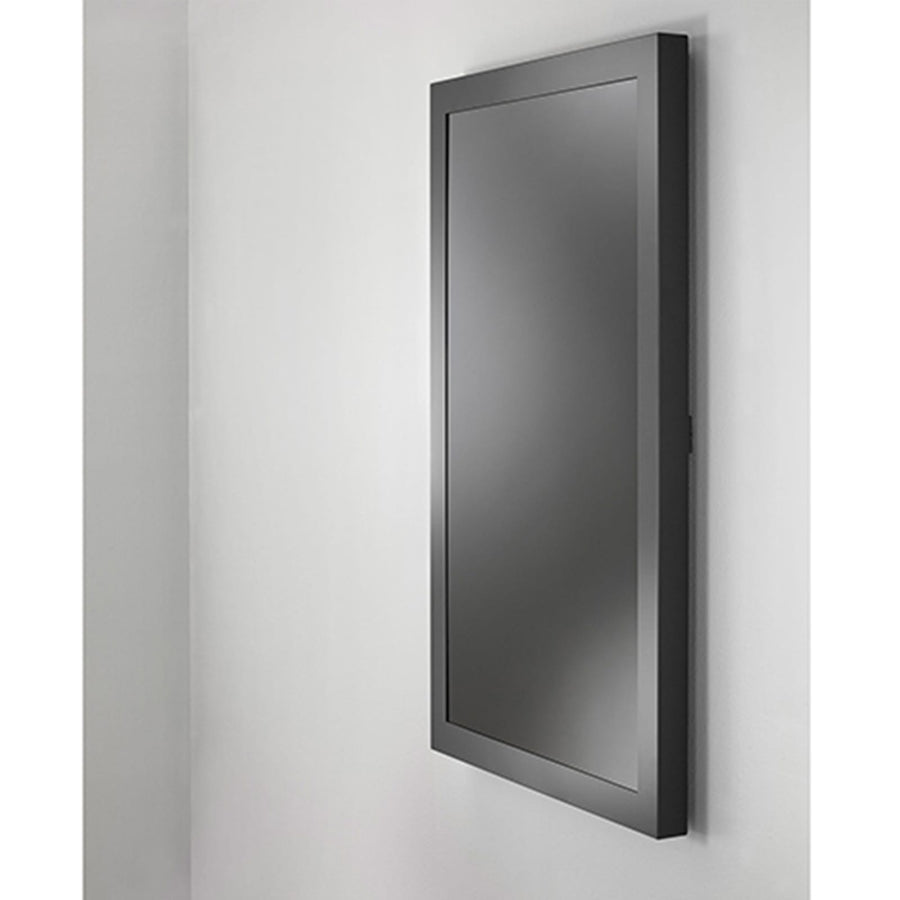

Impact™ On-Wall Kiosk with Protective Glass - Portrait 43 Inch Black
Portrait 43" on-wall kiosk with integrated 5/32" tempered glass and depth-adjustable frame in black
The LW43UBPG is a professional-grade Impact™ On-Wall Kiosk designed to provide secure, aesthetic digital signage enclosures for high-traffic environments. This portrait-oriented kiosk features an integrated 5/32" (4 mm) thick tempered glass that is factory bonded to the enclosure using industrial adhesives, protecting the LCD display from impacts and sharp objects. The depth-adjustable exterior frame allows for a wide range of display compatibility, with a depth range of 3-5" (76-127 mm) and a maximum screen thickness of 3.75" (95.3 mm). Installation is streamlined by an integrated wall reveal that compensates for uneven walls to ensure the frame remains plumb while providing passive cooling. For more demanding thermal requirements, the PACFAN1 Impact™ Series On-Wall Kiosk Fan Kit is available. The design includes reversible hinges to prevent obstructions during installation and service, and the engagement latch can be secured with tamperproof hardware for added security. This TAA compliant unit is UL Listed and suitable for both wall and floor-cart applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Maximum Screen Thickness | 3.75 in (95.3 mm) |
| Shipping Dimensions | 49.5" x 39.25" x 5" (125.7 x 99.7 x 12.7 cm) |
| Shipping Weight | 70 lbs (31.8 kg) |
| Typical Screen Size | 43" (76mm) |
| Weight Capacity | Mount 85lbs_ Panel 5lbs |
| Accessory Type | Metal StudMounting BracketsProtective CoversThermal Management |
| Adjustability | FixedLateral Shift |
All other specifications 9
| Application | Floor-CartWall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Protective Glass | Yes |
| Special Features | Closure Door |
| TAA Compliant | Yes |
| UPC | 841872174136 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Impact™ Series On-Wall Kiosk Fan Kit, 30 CFM
PACFAN1$342.40
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Questions about this part
Will the LW43UBPG fit my 43 inch display?
This kiosk is designed for a typical 43" (76mm) screen size. Please refer to the LW43UxP and LW43UxPG Technical Drawing for specific VESA and bezel considerations.
What do I need to do to ensure the kiosk is plumb on uneven walls?
The enclosure features an integrated wall reveal designed to compensate for uneven surfaces, helping to keep the frame plumb and facilitating passive cooling.
Is there a way to provide active cooling for the display?
Yes, you can add the PACFAN1 Impact™ Series On-Wall Kiosk Fan Kit, which provides 30 CFM of airflow, to manage thermal loads.
What additional storage options are available for this kiosk?
You can utilize the PAC525 or PAC526 in-wall storage boxes to manage cabling and components behind the display.
How is the display serviced once it is mounted in the kiosk?
The kiosk features reversible hinges to prevent obstructions during service and an exclusive design that keeps the display mounted to the frame when the enclosure is opened.
