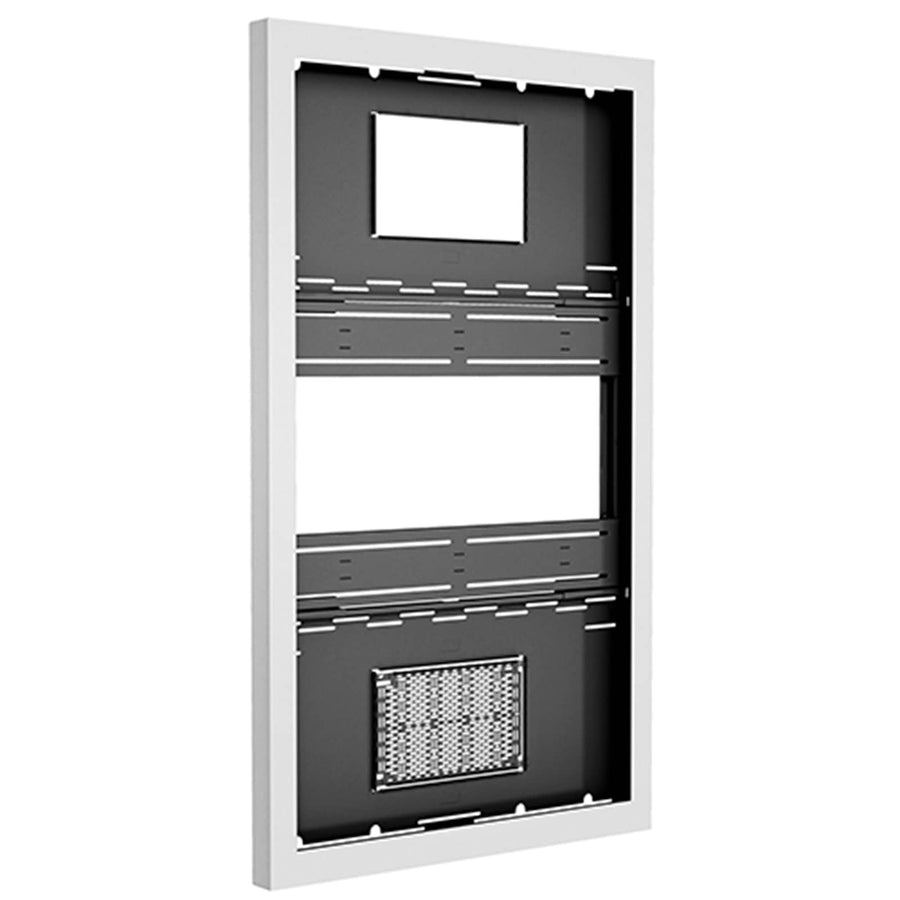

Impact™ On-Wall Kiosk - Portrait 75 Inch White
Portrait-orientation white kiosk for 75" displays, featuring an adjustable depth frame and secure closure door
The Chief LW75UWP is a portrait-orientation Impact™ On-Wall Kiosk designed for high-traffic digital signage environments that require a sleek white aesthetic. This enclosure provides significant installation flexibility through a depth-adjustable exterior frame that manages a depth range of 3-5" (76 - 127 mm). For installers, the design simplifies maintenance via reversible hinges that prevent service obstructions by keeping the display securely mounted to the frame while the enclosure is open. This specific model is built for a single 75" (190.5cm) display with a maximum screen thickness of 3.75 in (95.3 mm). It supports VESA mounting patterns of 400 x 400 mm, 600 x 400 mm, and 600 x 600 mm. This TAA compliant kiosk includes a closure door and integrated security features to protect hardware in public spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Maximum Screen Thickness | 3.75 in (95.3 mm) |
| Shipping Dimensions | 75" x 44.5" x 10" (190.5 x 113 x 25.4 cm) |
| Shipping Weight | 152 lbs (69 kg) |
| Typical Screen Size | 75" (190.5cm) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | Fixed |
| Application | Floor-CartWall |
All other specifications 9
| Color | White |
| Number of Displays | 1 |
| Orientation | Portrait |
| Protective Glass | No |
| Special Features | Closure DoorSecurity |
| TAA Compliant | Yes |
| UPC | 841872172606 |
| VESA Mounting Pattern | 400 x 400 mm, 600 x 400 mm, 600 x 600 mm |
| Certifications | TAA |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
Impact™ Series On-Wall Kiosk Fan Kit, 30 CFM
PACFAN1$342.40
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40
Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Verified fitment
Questions about this part
Will the LW75UWP fit my specific 75 inch display?
This kiosk is verified against 721 display models from 16 manufacturers. Examples of compatible displays include the Samsung 75QN9*C, LG 75NANO766QA, Sony 75BZ30P, and Philips 75BDL3010T.
How much thickness can my display have for this kiosk?
The LW75UWP supports a maximum screen thickness of 3.75 in (95.3 mm) and offers an adjustable depth range of 3-5" (76 - 127 mm).
What accessories are needed for specialized installations?
Depending on your site requirements, you may need the PACFAN1 Impact™ Series On-Wall Kiosk Fan Kit for thermal management or the PAC525/PAC526 In-Wall Storage Boxes for cabling.
How does the service access work on this model?
The unit features reversible hinges that allow the enclosure to be opened for maintenance while keeping the display mounted to the frame, preventing service obstructions.
Is this kiosk suitable for secure installations?
Yes, the LW75UWP is designed with a closure door and specialized security features, and it is TAA compliant.
