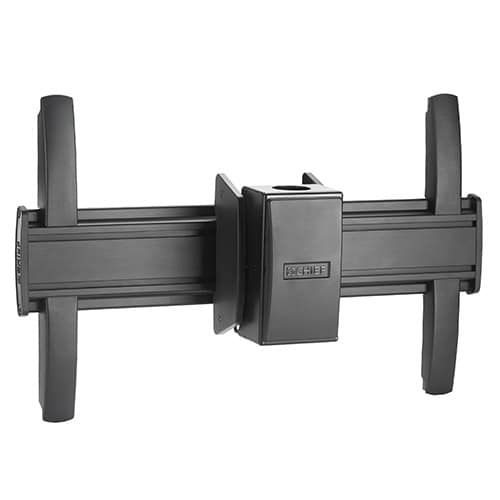

Fusion® Large Flat Panel Ceiling Mounts - LCM1U-G
Black ceiling mount for large displays, featuring Centris® fingertip tilt and 125 lbs weight capacity
The Chief LCM1U-G is a Fusion® series ceiling mount designed to provide precise positioning for large flat panel displays, making it a primary choice for professional digital signage installations. This mount is engineered for easy serviceability through Centris® fingertip tilt technology, which allows installers to effortlessly adjust the display position. The tilt mechanism offers a range of +5° to -20° and includes four set locking points to ensure repeatable and secure positioning. This specific SKU is configured for landscape orientation and carries a weight capacity of 125 lbs (56.7 kg). It is TAA compliant and UL Listed. This unit requires a ceiling plate and an extension column, which must be ordered separately. It is compatible with both traditional 1.5" NPT ceiling plates and the newer CPA pinned ceiling plate and column systems. When used with CPA columns, multiple units can be stacked on a single pole.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 30" x 10.5" x 6.75" (762 x 266.7 x 171.5 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt |
| Adjustments | Roll: 3° |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 1 |
All other specifications 6
| Orientation | Landscape |
| TAA Compliant | Yes |
| Tilt | +5° and - 20° |
| UPC | 841872163932 |
| VESA Mounting Pattern | 200 x 200mm - 616 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Structural Ceiling Plate
CMA345$208.00
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in White
CMA100W$208.00
8 Inch (203 mm) Ceiling Plate, TAA Compliant
CMA110-G$98.40
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Side Speaker Adapters
FCA535$178.40
Verified fitment
Questions about this part
Will the LCM1U-G fit my display?
This mount is verified against 12,257 display models from 329 manufacturers. Examples of compatible displays include Samsung 320MP, LG 32CL40, and Panasonic 55VW3KD.
What else do I need to buy to complete the installation?
The LCM1U-G is a component that requires a separate ceiling plate and extension column. Compatible plates include the CMA110-G or the CMA345 Structural Ceiling Plate.
How do I adjust the tilt on this mount?
The mount utilizes Centris® fingertip tilt technology, allowing for effortless adjustment between +5° and -20° with four discrete locking points.
Can I stack multiple mounts on one pole?
Yes, you can stack multiple mounts on a single pole when using the CPA column system.
Which document do I need for the submittal?
For technical submittals, you can refer to the LCM1U Technical Drawing or the Installation Manual available in the Resources tab.
