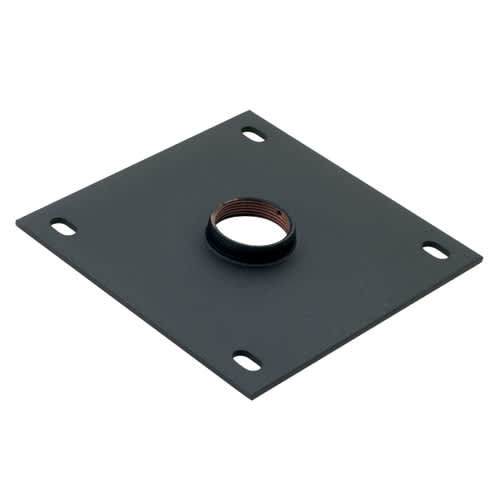

8 Inch (203 mm) Ceiling Plate, TAA Compliant
8 inch black flat ceiling plate with a 500 lbs capacity for simple ceiling installations
The Chief CMA110-G is an 8 inch (20.3 cm) flat ceiling plate designed for cost-effective and simple projector installations. This black-finish plate provides an attractive solution for basic ceiling mounting requirements and is engineered for fast and easy installation. It features a robust 500 lbs (226.8 kg) weight capacity, making it a reliable choice for professional AV deployments. This specific SKU is a TAA compliant component that is UL listed and includes OSHPD pre-approval documentation. For projects requiring different finishes or dimensions, the CMA series offers variants in silver and white, as well as different plate sizes including 4 inch and 6 inch options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 8 in (20.3 cm) |
| Depth | 8 in (20.3 cm) |
| Height | 0.7 in (1.8 cm) |
| Overall Dimensions | 0.7" x 8.0" x 8.0" (17 x 203 x 203 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 8 in (20.3 cm) |
| Accessory Type | Ceiling Plates and Adapters |
All other specifications 6
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872163901 |
| Certifications | OSHPDTAAUL Listed |
Resources
Questions about this part
What is the weight capacity of the Chief CMA110-G?
The CMA110-G supports a maximum weight capacity of 500 lbs (226.8 kg).
Is the CMA110-G TAA compliant?
Yes, this black ceiling plate is TAA compliant and is UL listed and OSHPD pre-approved.
What is the difference between the CMA110-G and the CMA115W?
The CMA110-G is the 8 inch black version, while the CMA115W is a different variant within the series.
Which documents are available for submittals for the CMA110-G?
Installers can access the CMA110 Technical Drawing, CMA110 OSHPD Pre-Approval Documentation, and the CMA Series Vibration Isolator Revit file for submittals.
Does this plate come in colors other than black?
While this SKU is black, the CMA series is available in silver or white finishes.
