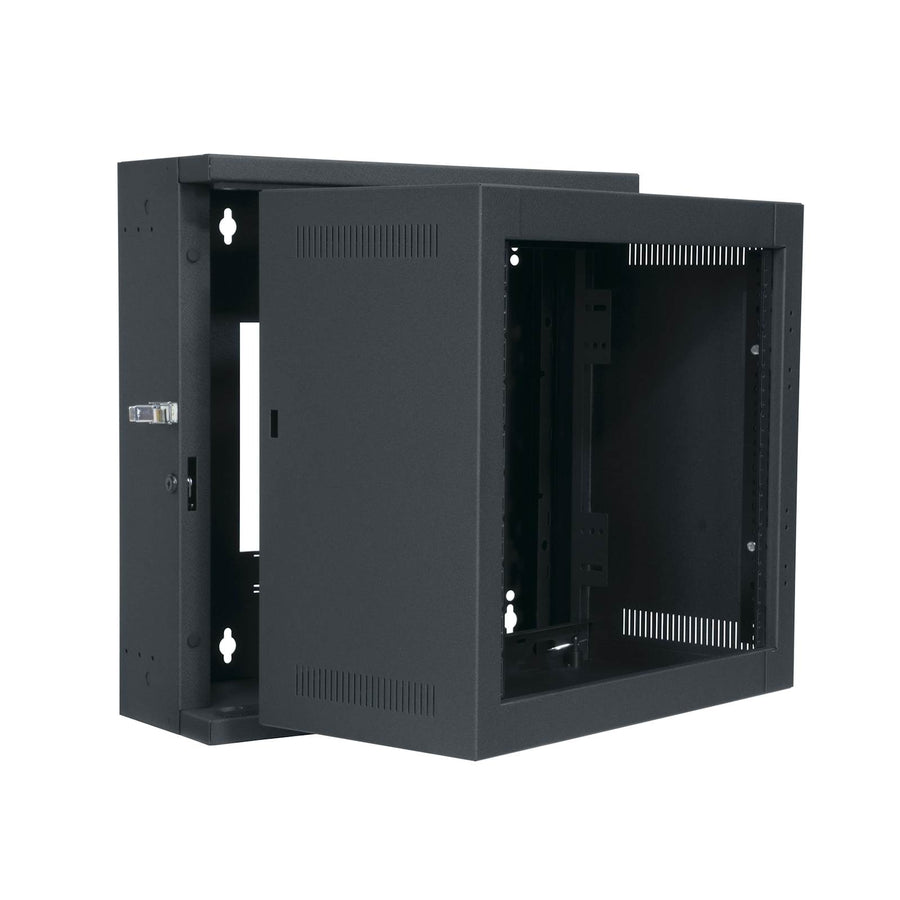

EWR Series Pivoting Wall Rack - EWR-8-22
8RU pivoting wall rack with 22" depth and 150 lbs UL load capacity
The Middle Atlantic EWR-8-22 is an 8RU pivoting wall rack designed for efficient installation in both secured and unsecured environments. This sectional wall cabinet features a 22 in (55.9 cm) depth and a total width of 23.38 in (59.4 cm). It is built with fully welded construction to provide necessary strength for smaller system deployments. The unit features a patented Tool Free Quick-Mount™ system for mounting the center section, and the center section swing is reversible to suit your specific site requirements. For added security, the center section can be both key-locked and padlocked, and it is keyed differently from optional front doors. This rack is optimized for passive thermal management to prevent equipment overheating. It includes standard adjustable 10-32 threaded rackrails and is UL Listed with a 150 lbs (68 kg) load capacity. This TAA compliant enclosure is finished in a Black Wrinkle Powder Coat.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 21 in (53.3 cm) |
| Product Weight | 61 lbs (27.7 kg) |
| Rack Units | 8 RU |
| Shipping Weight | 61 lbs (27.7 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 14 in (35.6 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | No |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057274 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
3 RU Washable Vent Filter
FILTER$72.00
8 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR8$59.40
PDW Power Strip, 24 Outlet, 20A & 12 Circuit with J-Box
PDW-12X220J$1,318.50
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
Questions about this part
Can the EWR-8-22 be used in high-security environments?
Yes. The center section swing is reversible and can be secured with either a key-lock or a padlock for added security.
What is the weight capacity for this Middle Atlantic rack?
This EWR-8-22 is UL Listed with a load capacity of 150 lbs (68 kg).
Does this rack include a front door?
The EWR-8-22 is supplied without a front door, but it is compatible with various Middle Atlantic accessories.
What accessories are compatible with the EWR-8-22?
Compatible components include the URS1 1 RU Mounting Rackshelf, PDX-920R NEXSYS™ 9 Outlet Power, and VTP-3 3 RU Rack Vent Panels.
How much space is available for equipment inside the rack?
The rack has a usable height of 14 in (35.6 cm) and a usable depth of 20 in (50.8 cm).
