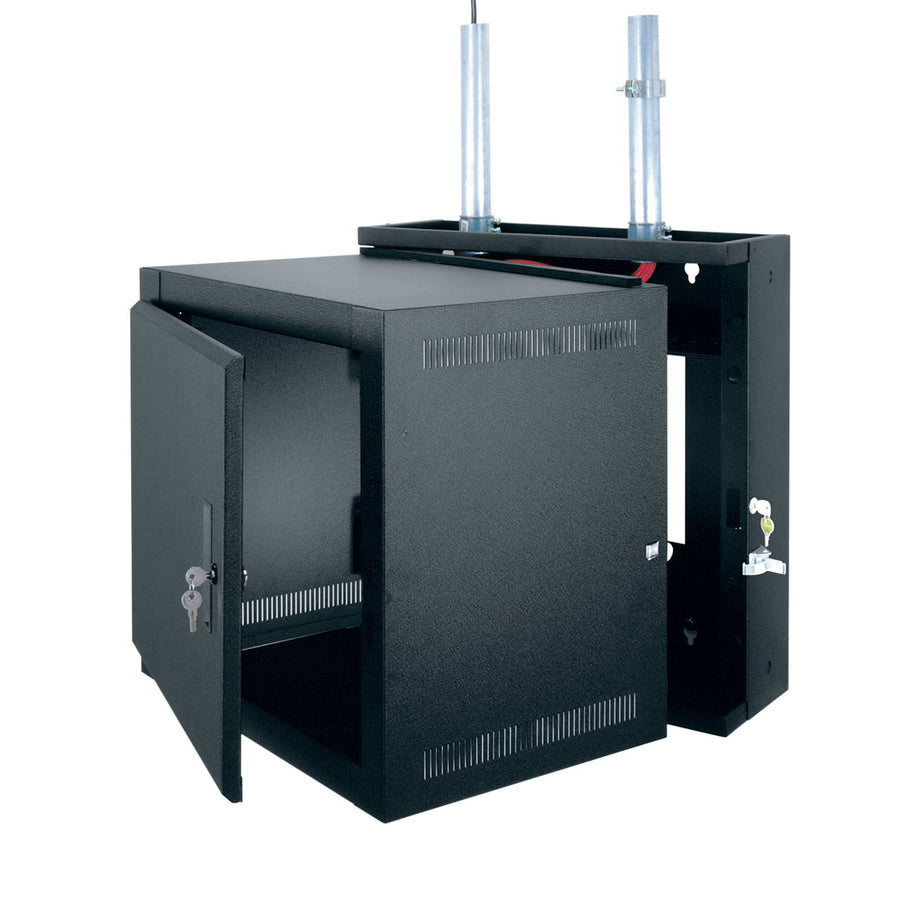

EWR Series Pivoting Wall Rack - EWR-8-17SD
8 RU pivoting wall rack with 17" depth, 150 lbs UL load capacity, and a reversible, lockable center section
The Middle Atlantic EWR-8-17SD is an 8 RU pivoting wall rack designed for smaller AV systems in both secured and unsecured environments. This unit features a fully welded construction for enhanced structural strength and a 17 in (43.2 cm) total depth, providing a 15 in (38.1 cm) usable depth for equipment mounting. The sectional design includes a center section with the patented Tool Free Quick-Mount™ system, allowing for easy mounting of the middle portion. For installation flexibility, the center section swing is reversible and can be secured with either a key or a padlock. To increase security in shared spaces, the center section is keyed differently from the optional front door. This rack is optimized for passive thermal management and includes a solid front door for enclosure. The standard front adjustable 10-32 threaded rackrail ensures compatibility with various components. This TAA compliant, UL Listed, and CSA Standard certified enclosure is a robust solution for localized system management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 21 in (53.3 cm) |
| Product Weight | 63 lbs (28.6 kg) |
| Rack Units | 8 RU |
| Shipping Weight | 63 lbs (28.6 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 14 in (35.6 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057267 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
8 RU Fixed Security Cover With Hinged Plexi Door
SECL-8$171.00
8 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR8$59.40

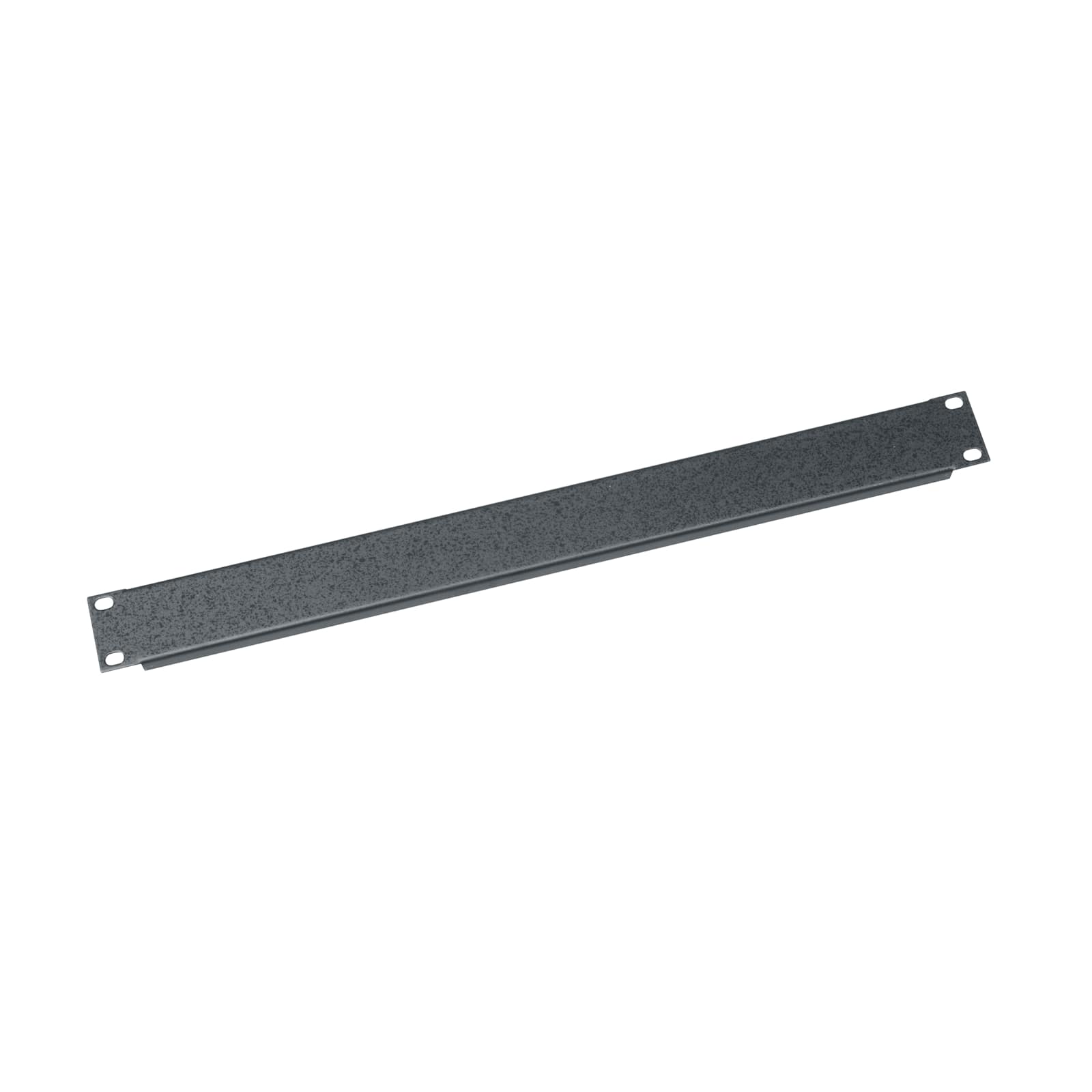

1 RU Flanged Blank Rack Panel, Textured - 12 Piece Contractor Pack
SB1-CP12$243.00

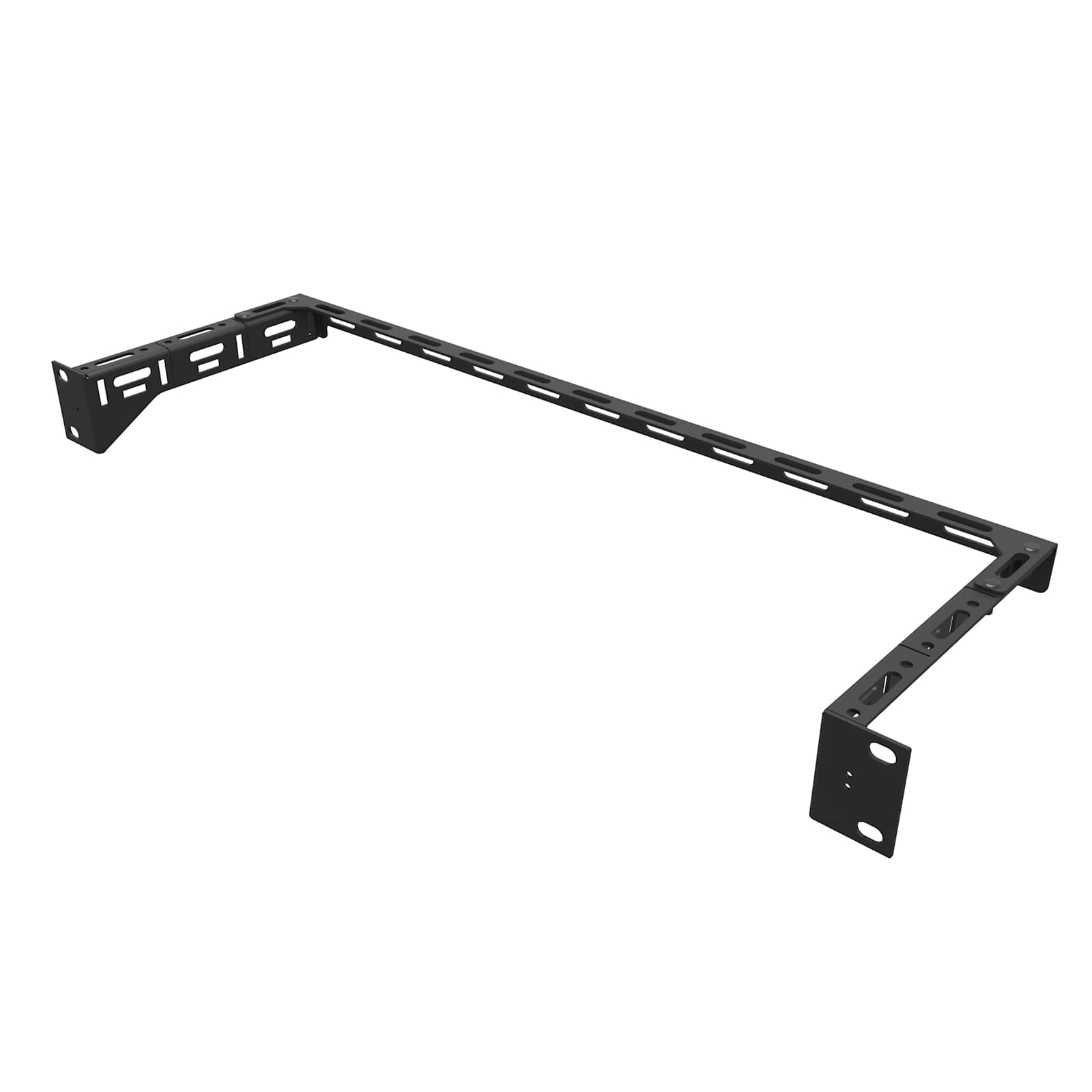

LBP Adjustable Horizontal Lace
LBP-ADJ-A-2PK$158.40
10-32 Rackscrew Truss-Head - 25 Piece
HPS$13.50
1 RU Select Series UPS Backup Power, 500VA
UPS-S500R$927.00
Cover Plate for DWR Series
DWR-CVR$60.30
Wide Unit Shelf System, 14 Inches Deep
WUSS14$122.40
Questions about this part
How much weight can the EWR-8-17SD safely hold?
This rack is UL Listed with a weight capacity of 150 lbs (68 kg).
What is the usable depth for equipment mounting?
The unit has a total depth of 17 in (43.2 cm), providing a usable depth of 15 in (38.1 cm).
Can I secure the center section of the rack?
Yes, the center section swing is reversible and can be secured using either a key or a padlock.
Is this rack suitable for TAA compliant projects?
Yes, the EWR-8-17SD is TAA compliant and is manufactured in Mexico.
What mounting hardware is compatible with the rackrails?
The front adjustable rackrails utilize standard 10-32 threaded rails for equipment mounting.
