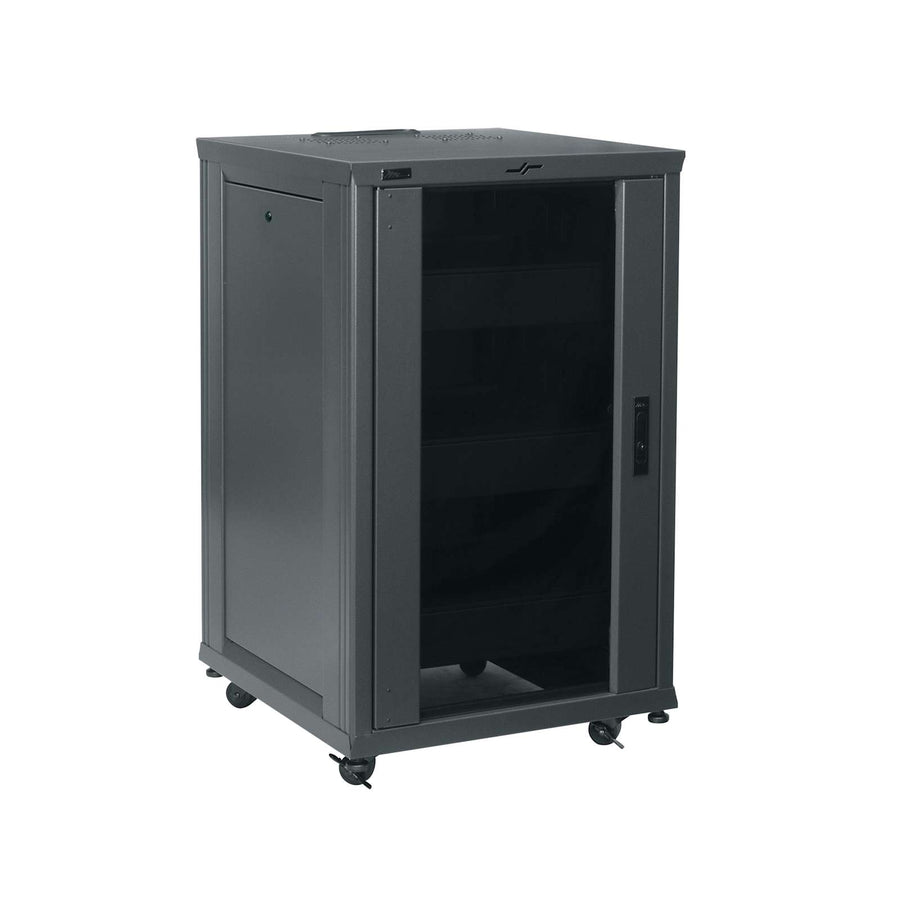

Essex RCS Series Pre-Configured Rack - RCS-1824
Pre-configured 18RU floor-standing AV rack with 24" depth, 1200 lbs UL load capacity, and TAA compliance
The Essex RCS-1824 is a pre-configured, floor-standing AV rack designed to streamline residential installations by arriving fully assembled. This 18RU system features a 24" depth (61 cm) with a usable depth of 20.1" (51.1 cm) and a usable height of 31.5" (80 cm). Built with fully welded steel construction and finished in a metallic gray textured powder coat, it is designed for durability and high-capacity use, boasting a UL load capacity of 1200 lbs (544.3 kg). This rack is engineered for efficient field deployment, shipping with pre-installed accessories including three 2RU, 16" deep shelves and three 1RU blank panels. It includes top-mounted DC fans for thermal management and a set of Essex accessory brackets, such as the ESX-ACC-BKT, for mounting vertical power or lace strips. The unit features a glass front door for visibility and a locking rear access panel for security. Access is further facilitated by locking, removable side panels. For compliance-sensitive projects, this model is TAA compliant and UL listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 138 |
| Depth | 24 in (61 cm) |
| Height | 38.62 in (98.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 111.4 lbs (50.5 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 131 lbs (59.4 kg) |
| UL Load Capacity | 1200 lbs (544.3 kg) |
All other specifications 11
| Usable Depth | 20.1 in (51.1 cm) |
| Usable Height | 31.5 in (80 cm) |
| Width | 23.3 in (59.2 cm) |
| Available Internationally | No |
| Color | Metallic Gray |
| Federal Ops Country of Origin | USA |
| Finish | Textured Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747201059 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it

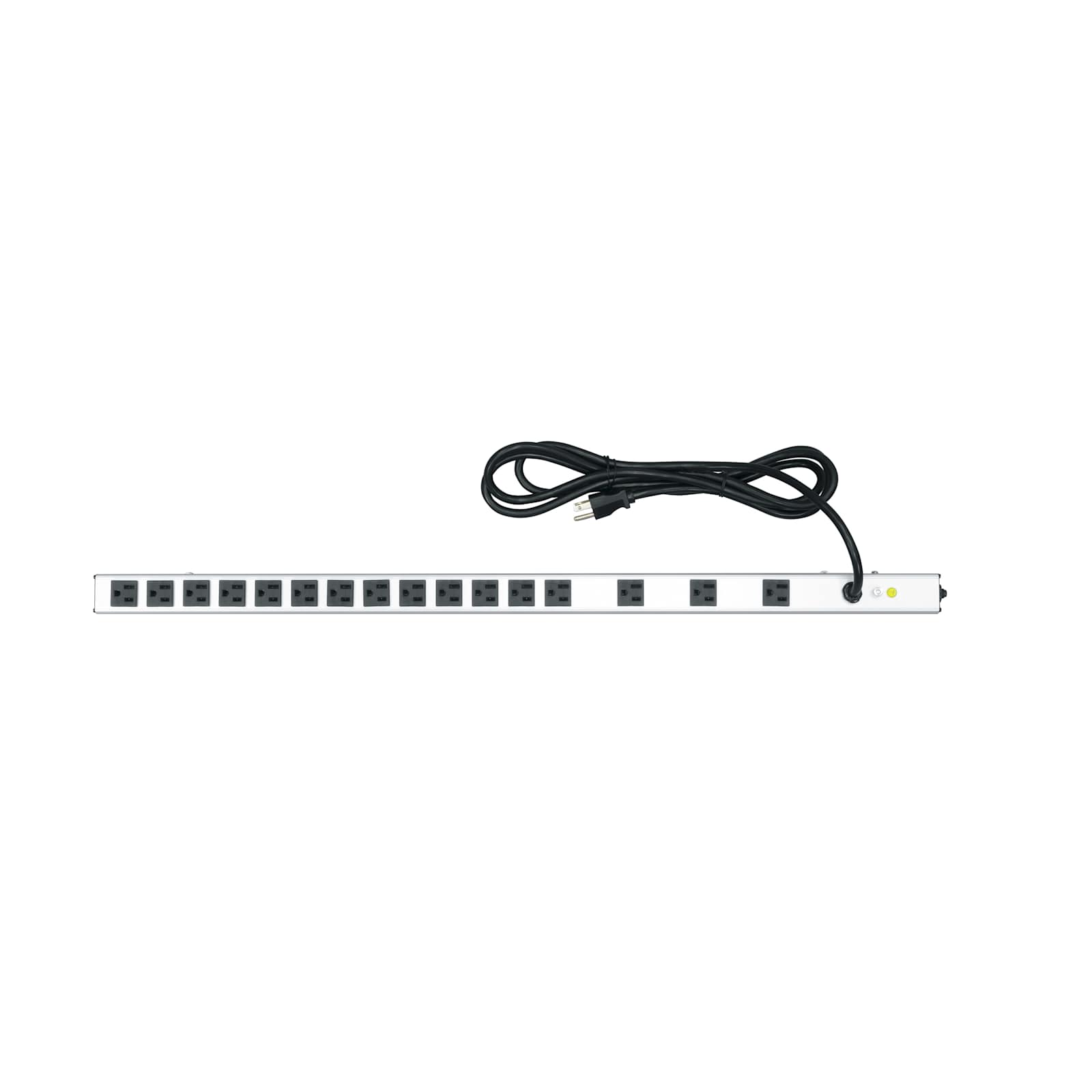

Vertical Power Distribution, 16 Outlet, 15 Amp
PWR-16-V$207.90
1 RU Rackmount Light, Powder Coated
LT-1R$406.80

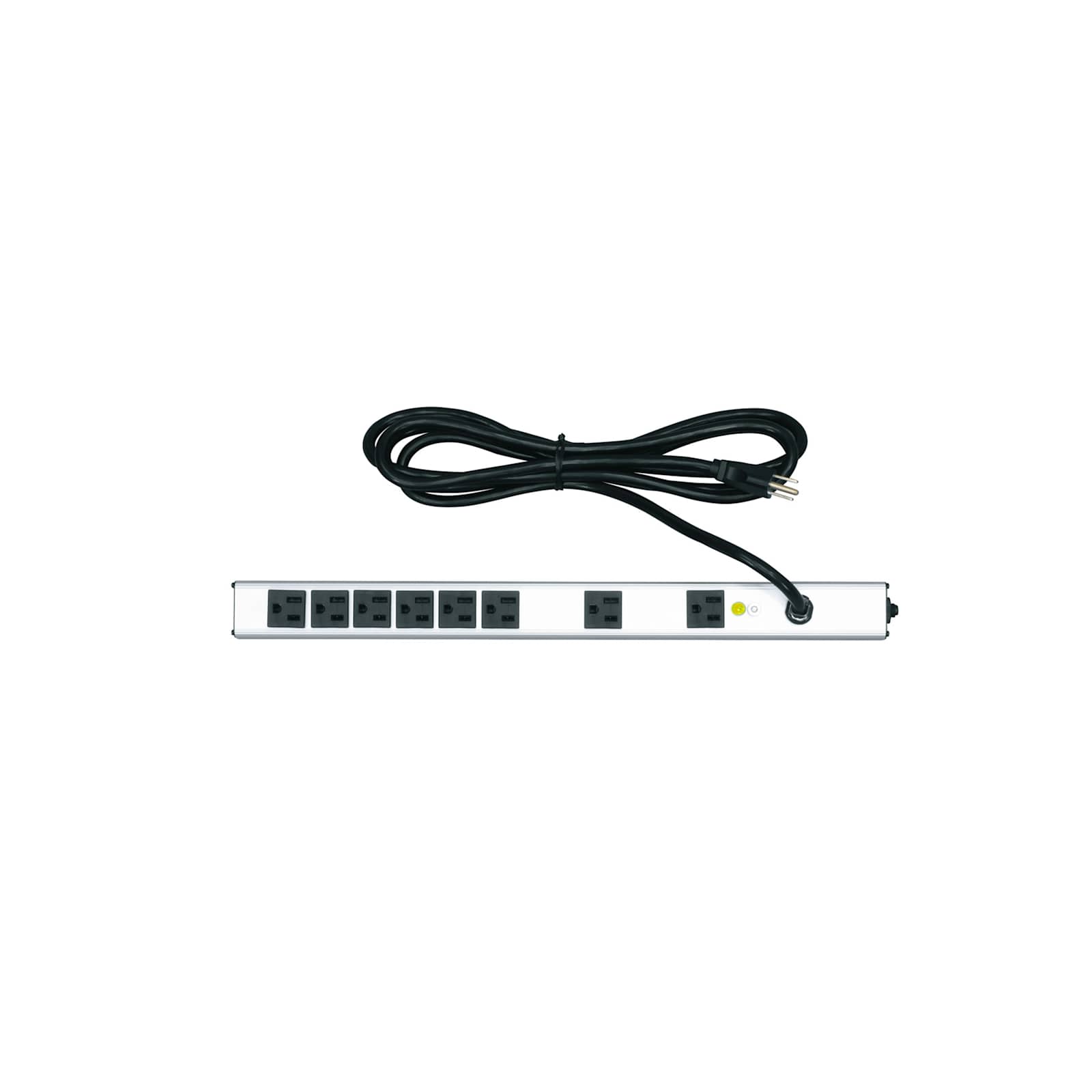

Vertical Power Distribution 8 Outlet, 15 Amp
PWR-8-V$151.20

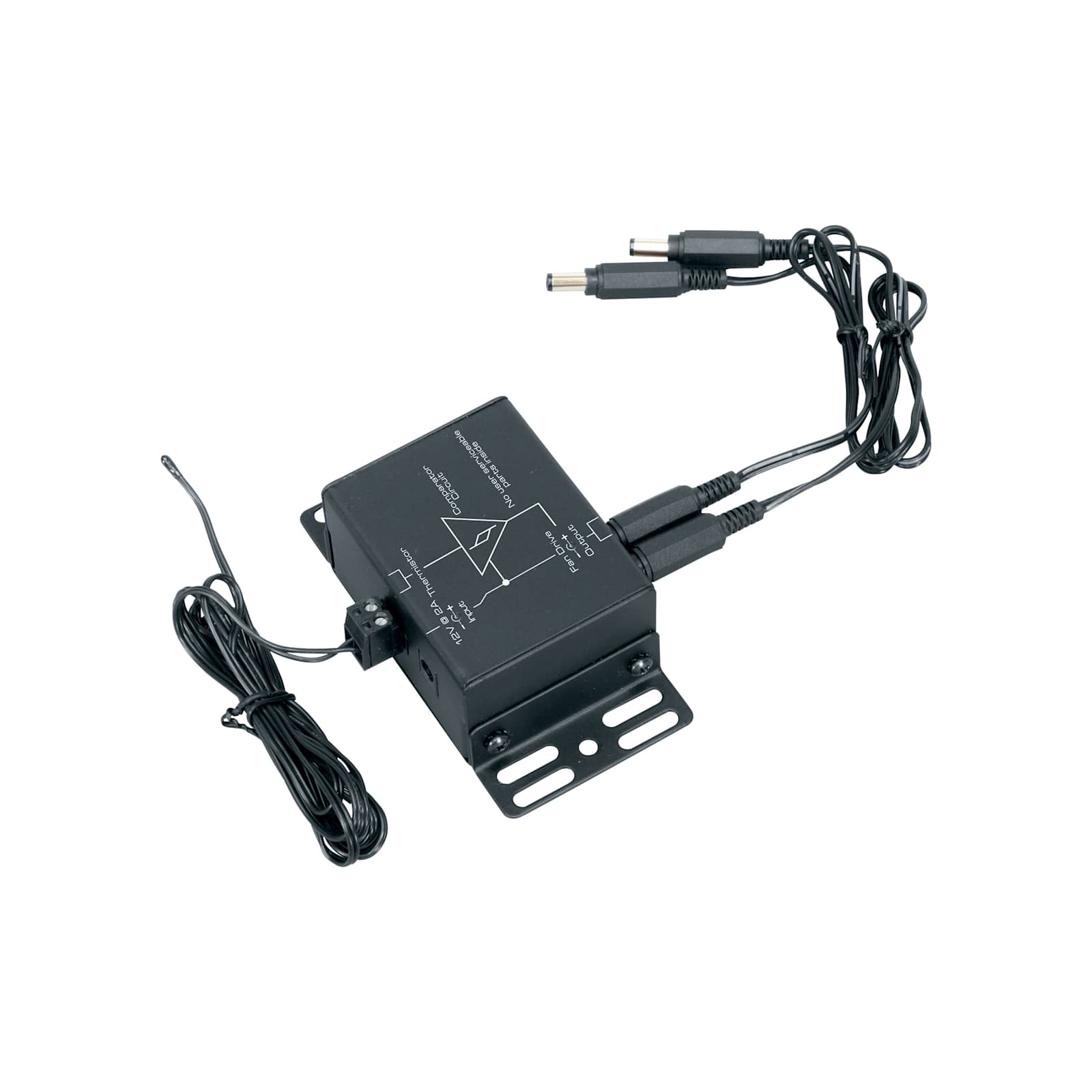

Essex Thermostatic Fan Control
FC-DC$197.10

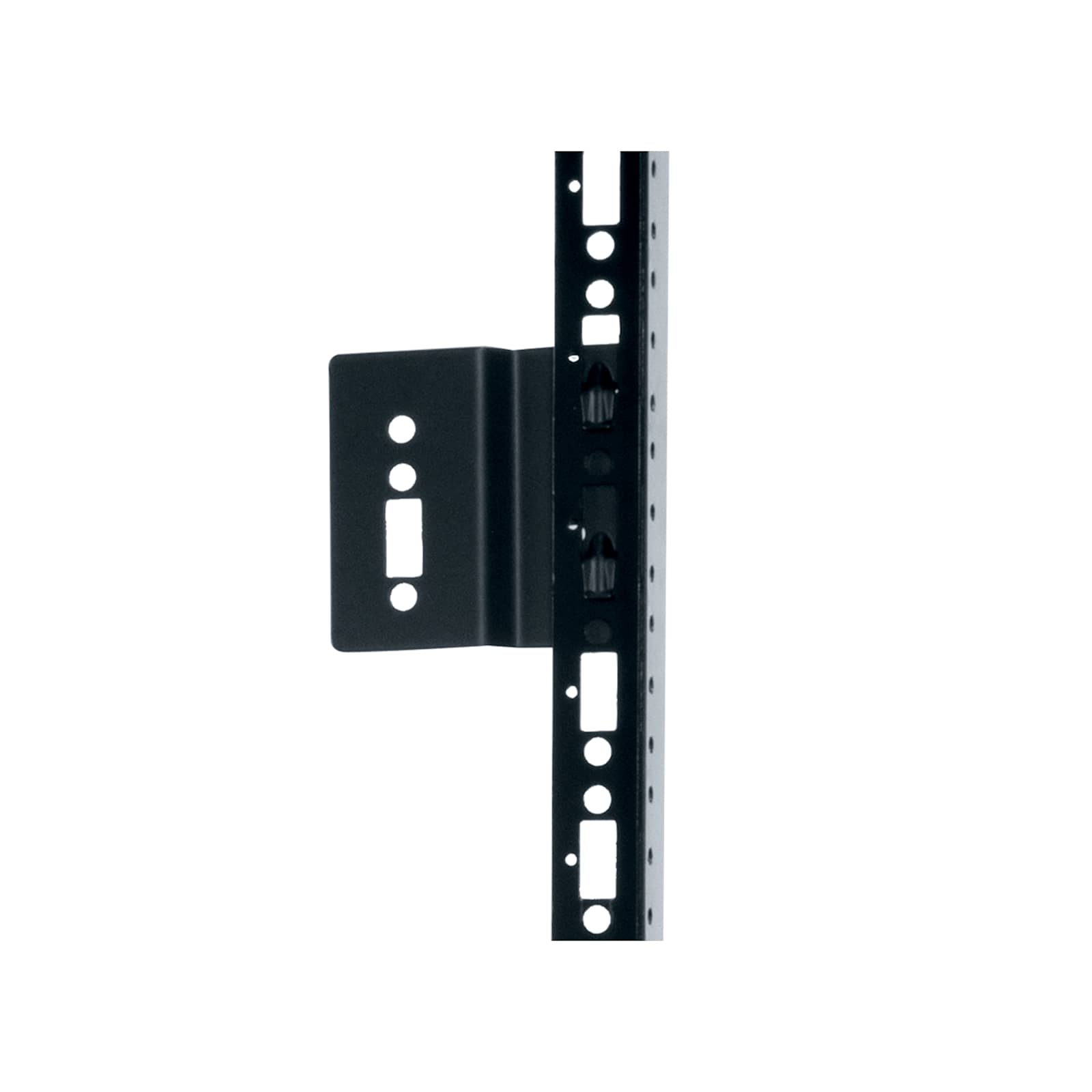

Essex Accessory Brackets - 1 Pair
ESX-ACC-BKT
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Series Surge Protection
PDX-215C-SP$423.90
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
PDX-620C$443.70
NEXSYS™ 6 Outlet, 15 Amp Compact Power with Series Surge Protection
PDX-615C-SP$666.00
NEXSYS™ 6 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-615C$403.20

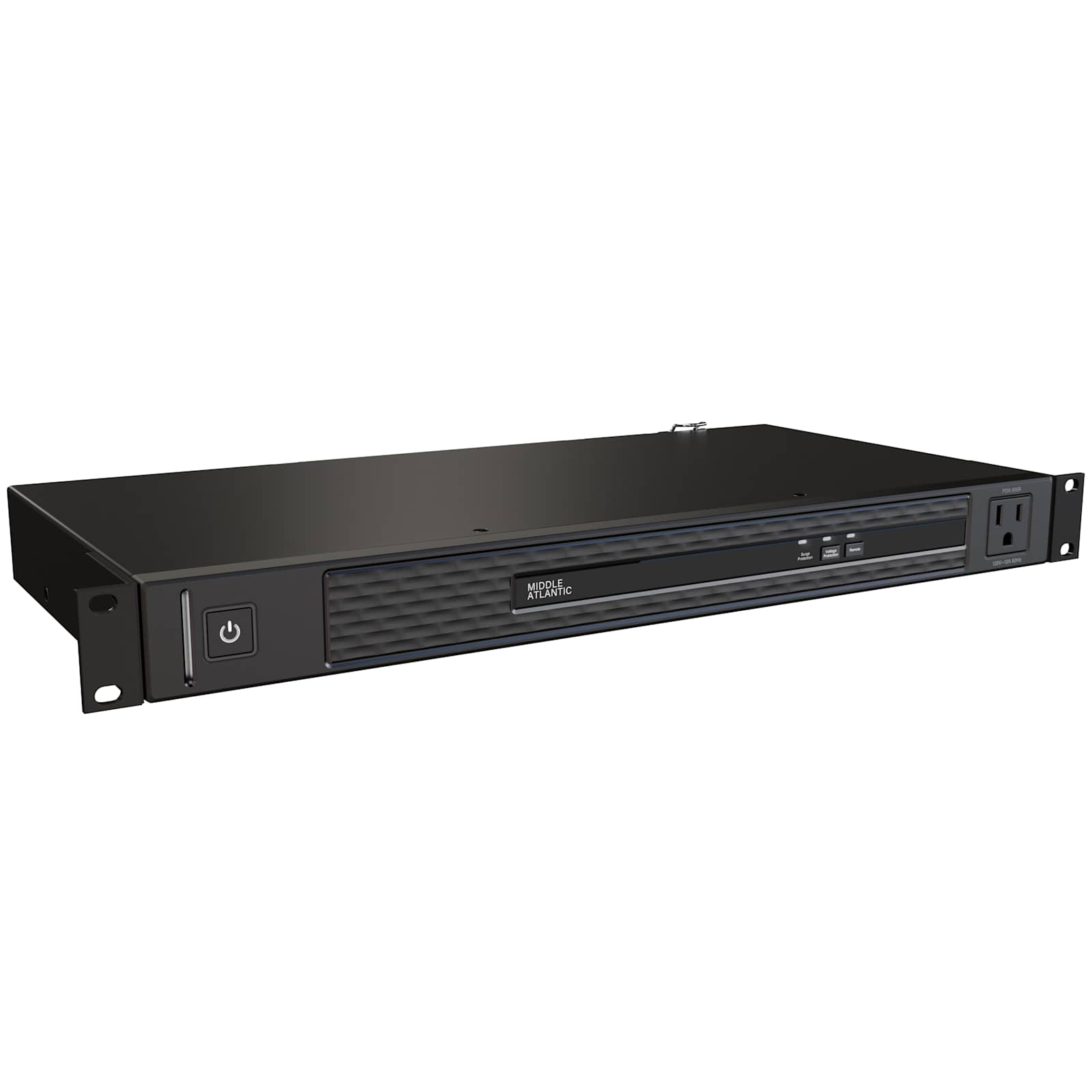

NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-915R$393.30
Questions about this part
What is included with the RCS-1824 when it arrives?
This rack ships fully assembled with three 2RU, 16" deep shelves, three 1RU blank panels, top-mounted DC fans, and a pair of Essex accessory brackets (ESX-ACC-BKT).
Will this rack work with my vertical power distribution?
Yes, the included Essex accessory brackets allow you to mount vertical power strips, such as the PWR-16-V or PWR-8-V, within the rack.
How much weight can this 18RU rack safely hold?
The RCS-1824 has a UL load capacity of 1200 lbs (544.3 kg).
What is the difference between this and the other RCS series racks?
The RCS-1824 is the 18RU version within the series; other configurations are available with 27RU, 35RU, or 42RU heights.
How is access provided for servicing equipment inside the rack?
The rack features a glass front door for visibility, a locking rear access panel for security, and removable side panels for easy integration and service.
