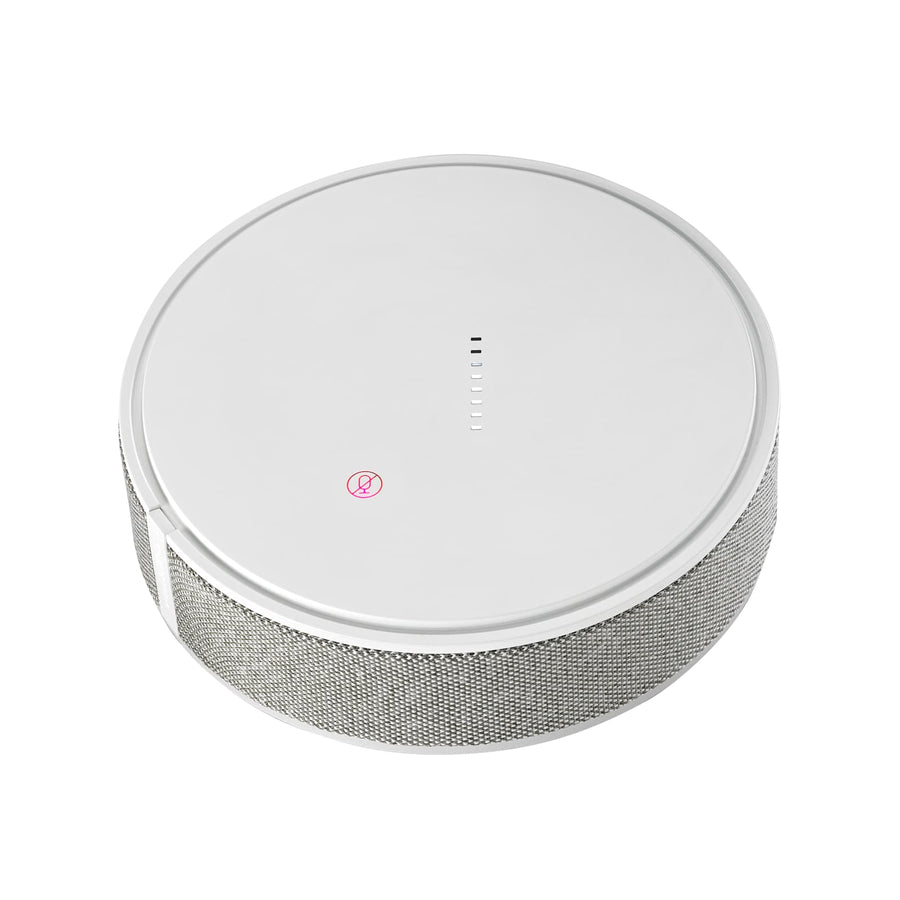

EasyIP TableMIC D Microphone
Dante networked microphone in white with 360-degree coverage and integrated echo cancellation for professional conferencing
The Vaddio EasyIP TableMIC D Microphone 999-85300-000W is a Dante-enabled audio solution designed to provide professional-quality sound for PC-based conferencing environments. This white microphone unit utilizes three unidirectional condenser elements to achieve 360-degree coverage, making it suitable for small meeting rooms. Each element features integrated Digital Signal Processing (DSP) including adaptive noise filtering, automatic gain control (AGC), and equalization. When paired with a companion device like the Vaddio AV Bridge 2x1 or the EasyIP Mixer, the system utilizes a reference from the far end to provide Acoustic Echo Cancellation (AEC) for clear bidirectional communication. The microphone features a capacitive touch mute control surface with an integrated VU meter and an acoustical fabric wrap. For installation, the unit requires a single Cat-5 cable to a PoE network switch, supporting cable runs up to 328 feet (100 meters). Its solid metal base and engineered feet are specifically designed to reduce table vibration noise.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 1.43 in (3.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 12" x 10" x 5" (304.8 x 254 x 127 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Width | 5 in (12.7 cm) |
| Audio Type | Microphone |
| Color | White |
| Compatible With | Vaddio |
All other specifications 7
| Manufacturer | Vaddio |
| Signal Type | Dante Audio |
| Special Features | AEC |
| TAA Compliant | Yes |
| UPC | 840077507077 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
CeilingMIC Microphone
999-85100-000$641.70
AV Bridge MATRIX PRO
999-8230-000$5,975.10
EasyUSB MicPOD I/O
999-8535-000$801.90
EasyUSB Mixer/Amp
999-8530-000$1,071.90
HuddleSHOT All-in-One Conferencing Camera
999-50707-000Discontinued
Questions about this part
How do I set up the EasyIP TableMIC D with Vaddio equipment?
You can use the free Vaddio Deployment Tool for pairing, while audio flows are managed through Audinate’s Dante Controller application.
What else is required to complete a Dante audio installation?
You will need a PoE network switch to provide power and connectivity; this unit is compatible with Vaddio EasyIP Mixer and AV Bridge 2x1 products.
What is the maximum cable length for this microphone?
The EasyIP TableMIC D supports cable runs of up to 328 feet (100 meters) between the microphone and the PoE network switch port.
How does this microphone handle echo and background noise?
The unit features integrated AEC and DSP. When used with a companion device like the AV Bridge 2x1, it applies a far-end reference to individual mic elements.
Which documents are available for submittals and installation?
Technical data is available via the EasyIP TableMIC D Data Sheet, and installation details can be found in the Quick-Start Guide or the Complete Manual.
