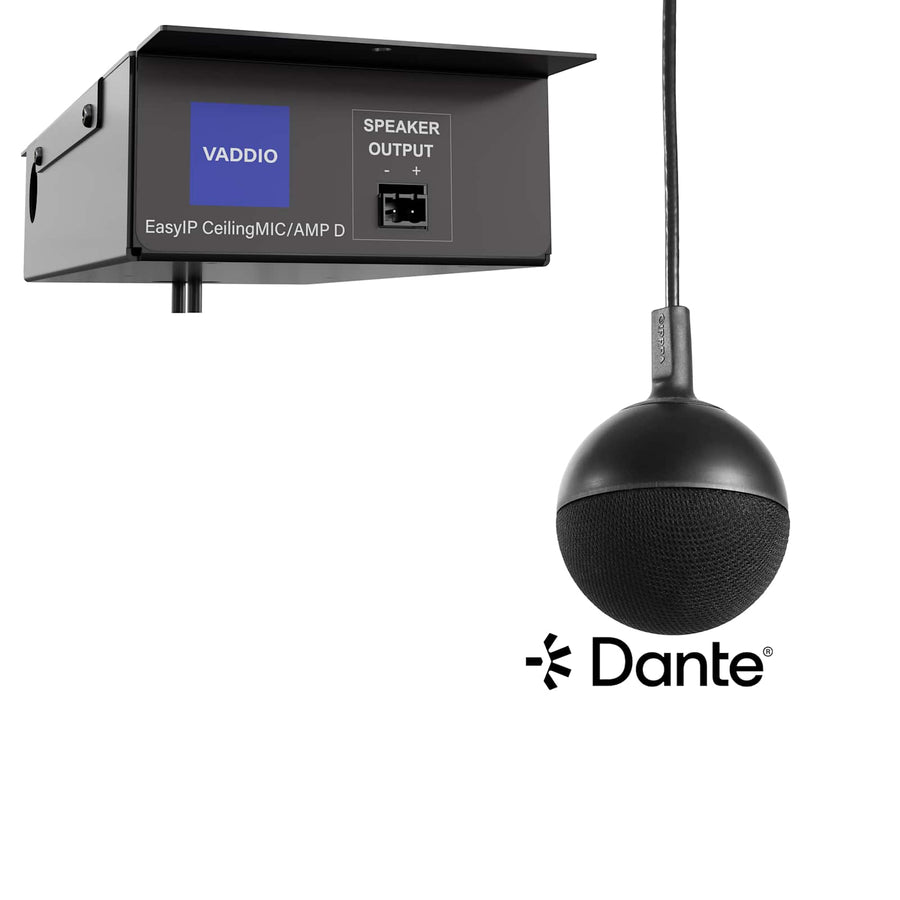

EasyIP CeilingMIC/AMP D Microphone
Dante networked microphone and amplifier solution with 360° pickup and PoE+ power capability
The Vaddio 999-86820-000 is an integrated in-ceiling audio solution that combines an overhead microphone array with a built-in speaker amplifier. Designed for the EasyIP or Dante audio ecosystem, this 2-in-1 unit simplifies installation by delivering microphone pickup and a powered speaker output over a single network cable. Each pendant features a three-element microphone array providing 360° coverage, making it suitable for average-sized meeting rooms. Each unit includes integrated Digital Signal Processing (DSP) with echo cancellation (AEC), equalization, filtering, and automatic gain control (AGC). The DSP applies AEC reference from the far end to individual mic elements to ensure clear communication. Power is supplied via PoE+, providing 25 W of total output power when using an EasyIP Switch or other PoE+ source, or 15 W when using a standard PoE source. The single output can drive one speaker or multiple speakers wired in series or parallel, provided the total load is greater than or equal to 4 ohms. For larger environments, multiple units can be deployed to achieve full coverage, limited only by available network switch ports.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 26" x 7" x 7" (660.4 x 177.8 x 177.8 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Audio Type | AmplifierMicrophone |
| Color | Black |
| Compatible With | Vaddio |
| Manufacturer | Vaddio |
| Output Ports | Audio |
All other specifications 8
| Power Type | PoE+ |
| Signal Type | Dante Audio |
| Special Features | AEC |
| TAA Compliant | Yes |
| Total Output Power | 25 W |
| UPC | 840077508074 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
What is the power requirement for the EasyIP CeilingMIC/AMP D?
The unit accepts PoE+ or PoE power. It delivers 25 W of total output power when powered by a PoE+ source or EasyIP Switch, and 15 W when using a standard PoE source.
How many speakers can I connect to the output?
The single output can power one speaker or multiple speakers if they are wired in series or parallel, as long as the total load is greater than or equal to 4 ohms.
Will this work with my existing Dante system?
Yes, the 999-86820-000 uses Dante networked audio and can be centrally managed using the free Dante Controller software from Audinate.
What is the coverage area of the microphone?
The three-element array provides full 360° pickup coverage, which is suitable for an average-sized meeting room table.
How long is the pendant cable?
The pendant includes an adjustable 3 ft. (0.9 m) drop cable. Using a standard RJ45 jack connection, the pendant can be extended to a total length of 15 ft. (4.6 m) from the interface box.
