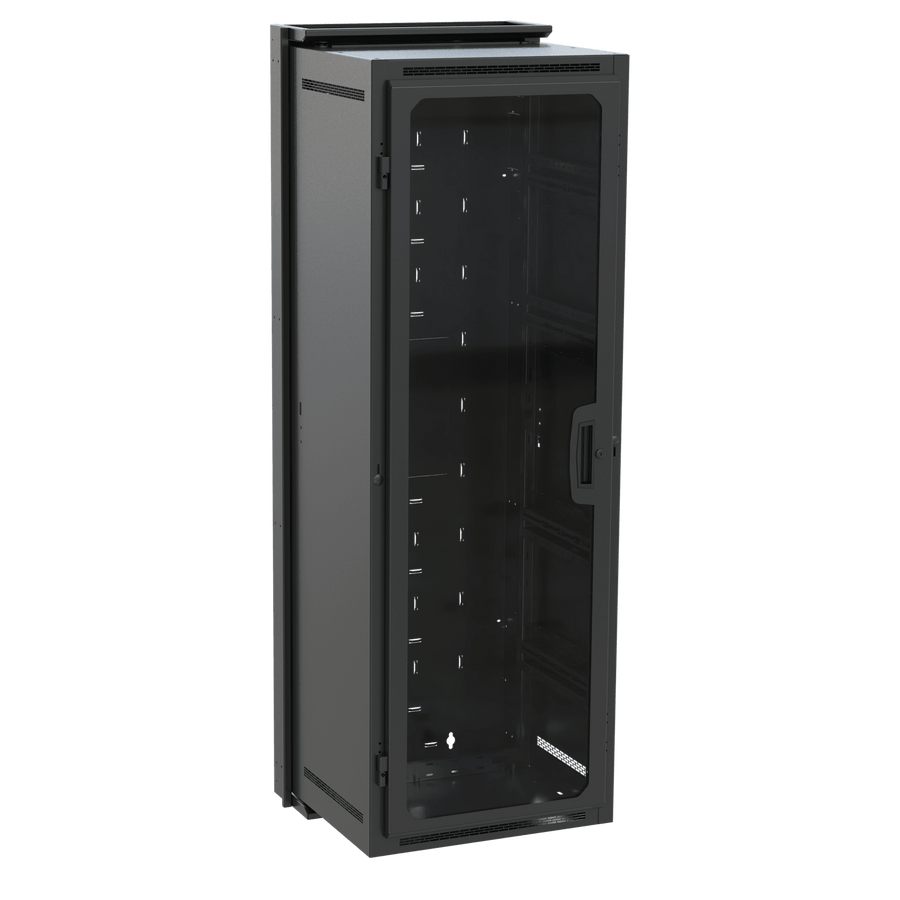

DWR Series Pivoting Wall Rack - DWR-35-22PD
35 RU pivoting wall rack with 22" depth, seismic rating, and factory-installed plexiglass door
The Middle Atlantic DWR-35-22PD is a 35 RU pivoting wall rack designed to provide high-density equipment storage with easy rear access. This 22" (55.9 cm) deep rack features robust, welded steel construction finished in a black wrinkle powder coat. It is built for demanding environments, offering both UL load capacity and seismic rating when used with the DWRSR-ZL latch. For rapid installation, the unit utilizes a Tool-Free Quick-Mount™ system, allowing a single technician to mount the center section to the backpan on-site. The DWR-35-22PD is highly customizable for cable management and power distribution. The center section includes a rear channel to accommodate slim power options, such as the 10-outlet Select Vertical PDU with RackLink™. Security is a priority; the reversible center section can be key-locked or padlocked and is keyed differently from the factory-installed plexiglass front door. This rack is TAA compliant and suitable for both active and passive cooling configurations to support a wide range of system requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 68.25 in (173.4 cm) |
| Product Weight | 157.5 lbs (71.4 kg) |
| Rack Units | 35 RU |
| Shipping Weight | 194 lbs (88 kg) |
| UL Load Capacity | 300 lbs (136.1 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 61.25 in (155.6 cm) |
All other specifications 16
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Door Type | Plexi |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747005626 |
| Certifications | CSA StandardTAA |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
You'll need these with it
138 CFM Fan Kit for SR and DWR Racks
DWRSR-138FT-K-EU$342.90
190 CFM Fan Kit for DWR or SR Rack, 17 or 22 Inches Deep
DWRSR-4-FK$262.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
35 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR35$182.70
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20

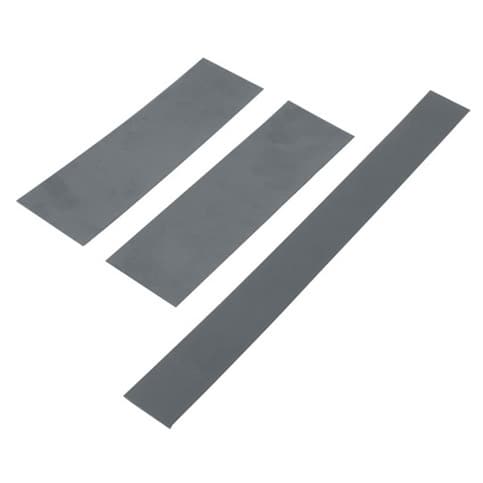

Vent Blocker Kit for DWR/SR - 22 Inches Deep
VBK-SD22$41.40
Questions about this part
Will the DWR-35-22PD fit my equipment depth?
This rack has a 22 in (55.9 cm) depth with a usable depth of 20 in (50.8 cm) for mounting hardware.
What is the maximum load capacity for this rack?
The unit has a UL load capacity of 300 lbs (136.1 kg) and a seismic load capacity of 155 lbs (70.3 kg) when using the DWRSR-ZL latch.
What accessories are needed for power distribution?
You can integrate the Select Series PDU with RackLink™ into the center section's rear channel to save space.
How do I access the back of the equipment?
The center section is designed to swing to provide access; the swing direction is reversible and can be secured with a lock or padlock.
What documentation is available for submittals?
Detailed technical drawings, Revit models, and 3D CAD files are available to assist with system design and submittals.
