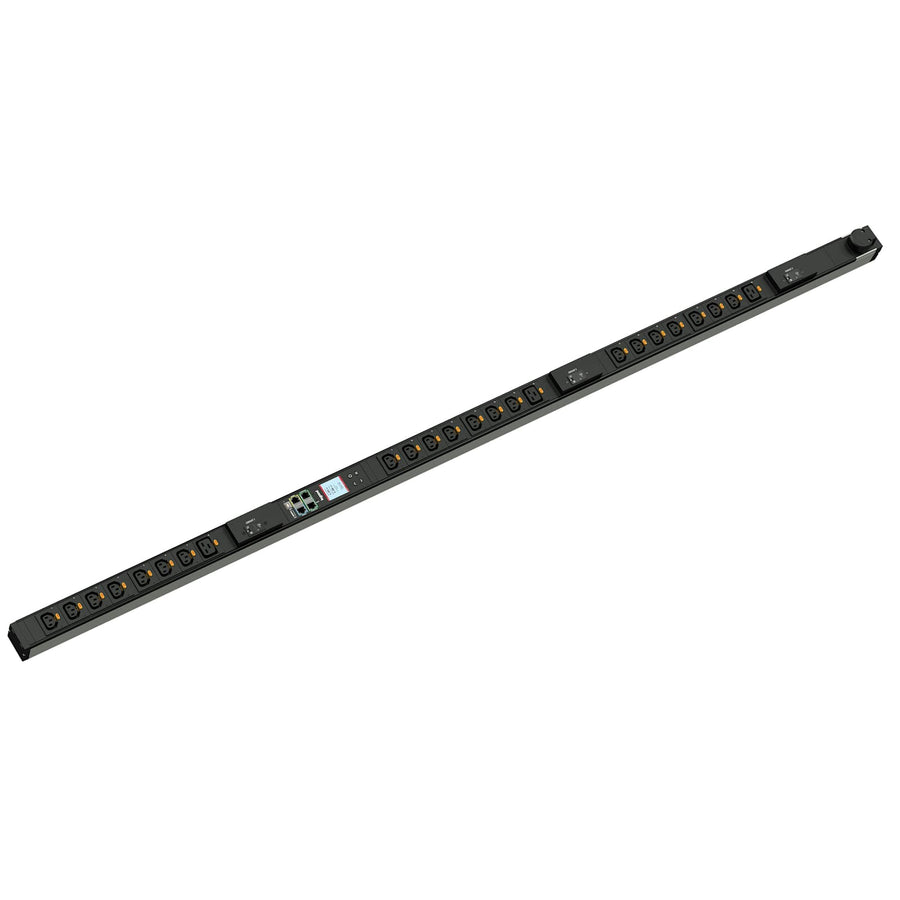

Legrand Vertical ZeroU Network Switched PDU, 24 Outlet
Vertical ZeroU Network Switched PDU with 24 outlets, including 21 IEC C13 and 3 IEC C19 receptacles, 30A L6-30P plug
The Legrand LP-62300 is a Vertical ZeroU Network Switched Power Distribution Unit designed for high-density power management within a rack environment. This 30 Amp unit provides 24 total outlets to support critical network infrastructure. The receptacle configuration includes (21) IEC C13, 12A outlets and (3) IEC C19, 16A outlets. It is built for professional deployment, featuring a vertical button mount style and arriving with a Black and Silver finish. This model is TAA compliant and carries UL and FCC certifications. Connectivity is established through a 9.84 ft (3 m) corded cable ending in an L6-30P plug. For advanced monitoring, the unit supports local or remote access, allowing for individual outlet power cycling, power sequencing, and load monitoring through a single portal view. This PDU is specifically engineered for environments requiring granular control over power usage and available capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 30 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 70.1 in (178.1 cm) |
| Shipping Weight | 14.78 lbs (6.7 kg) |
| Volts AC | 208 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 24 |
| Plug Type | L6-30P |
| Receptacle Type | IEC C13 and C19 |
| TAA Compliant | Yes |
| UPC | 662875015680 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
Will the LP-62300 fit my rack equipment?
This ZeroU PDU is designed for vertical mounting. For specific bracket requirements, you can use the 42 to 45 RU Forward Universal Vertical Power Bracket (FWD-UVPB-42-45) or the SNE Universal Vertical Power Bracket (SNE-UVPB-4245-S).
What kind of outlets are included on the LP-62300?
The unit features 24 outlets in total, consisting of 21 IEC C13 (12A) receptacles and 3 IEC C19 (16A) receptacles.
How can I monitor power usage on this PDU?
The network switched technology allows for remote load monitoring and power sequencing. You can also integrate additional sensors, such as the Premium+ PDU Temperature and Humidity Sensor (RLNK-TEMP), for enhanced environmental visibility.
What is the input requirement for the LP-62300?
This PDU requires a 30 Amp, 208 VAC power source and utilizes an L6-30P plug type.
What documentation is available for submittals?
Technical details can be found in the LP 62300 Vertical ZeroU Network Switched PDU A&E Specification Sheet, and installation procedures are covered in the Legrand PDU User Guide.
