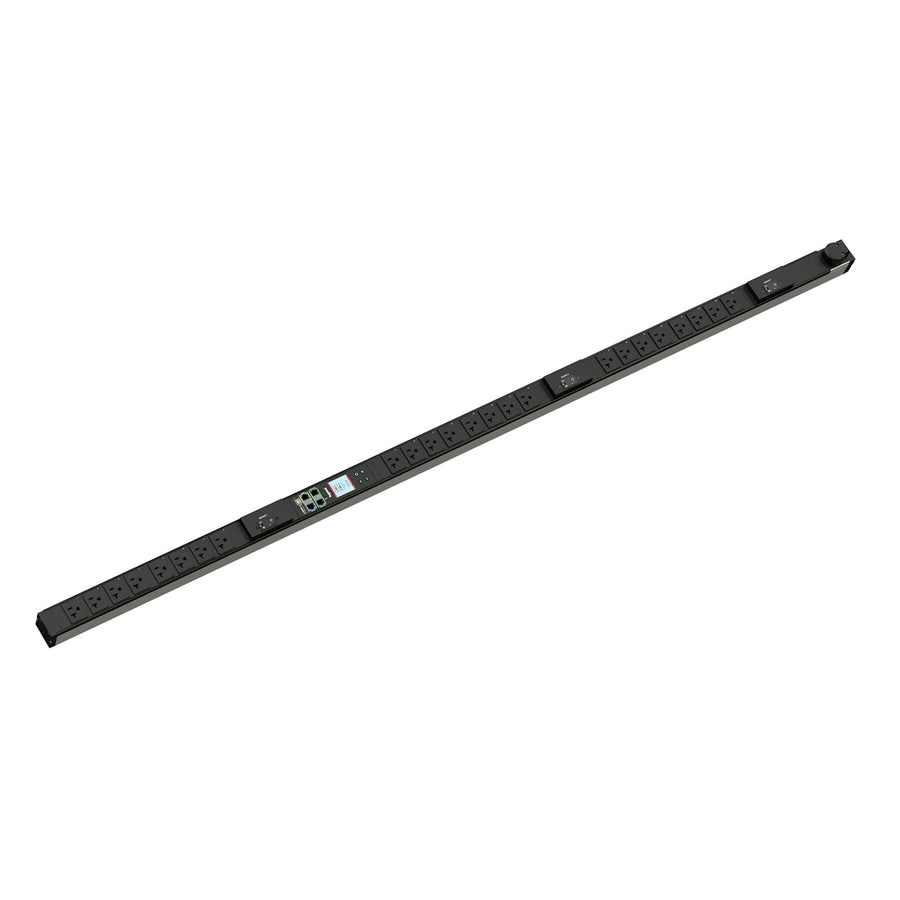

Legrand Vertical ZeroU Network Switched PDU, 24 Outlet
Vertical ZeroU Network Switched PDU with 24 NEMA 5-20R outlets, 30 Amp capacity, and remote power monitoring
The Legrand LP-61300 is a professional-grade Vertical ZeroU Network Switched Power Distribution Unit designed for granular control within high-density racks. This 30 Amp, 120 VAC unit features 24 NEMA 5-20R receptacles, allowing for individual outlet power cycling, power sequencing, and real-time load monitoring. These capabilities enable system integrators to manage power usage and available capacity through a single portal view, accessible both locally and remotely. This specific model is TAA compliant and UL listed, meeting the rigorous standards required for many government and commercial installations. The PDU features a 2-inch (5.1 cm) depth and a 2-inch (5.1 cm) width, optimized for vertical mounting to save critical RU space. It includes a 9.84 ft (3 m) corded power cable with an L5-30P plug. For specialized monitoring, this unit is compatible with the RLNK-TEMP Premium+ Temperature and Humidity Sensor and the RLNK-CONT Dry Contact Sensor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 30 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 70.1 in (178.1 cm) |
| Shipping Weight | 13.44 lbs (6.1 kg) |
| Volts AC | 120 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 24 |
| Plug Type | L5-30P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | Yes |
| UPC | 662875015598 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
Will the LP-61300 work with my existing rack configuration?
Yes, this ZeroU PDU is designed for vertical mounting. It is compatible with the FWD-UVPB-42-45 Forward Universal Vertical Power Bracket and the SNE-UVPB-4245-S SNE Universal Vertical Power Bracket for 42 to 45 RU racks.
What can I do with the network switching feature of the LP-61300?
The network switching allows you to perform individual outlet power cycling and power sequencing. You can also monitor loads and available capacity through a single portal view, which is accessible both locally and remotely.
Does this PDU require specific environmental monitoring?
This PDU is compatible with the RLNK-TEMP Premium+ Temperature and Humidity Sensor and the RLNK-CONT Dry Contact Sensor to assist with environmental management.
What is the electrical specification for this 24-outlet PDU?
The LP-61300 operates at 120 VAC with a 30 Amp capacity. It features 24 NEMA 5-20R receptacles and utilizes an L5-30P plug type.
Which documentation is available for submittals?
For technical details, installers can refer to the LP 61300 Vertical ZeroU Network Switched PDU A&E Specification Sheet, the Legrand PDU User Guide, or the Legrand PDU Quick Start Guide.
