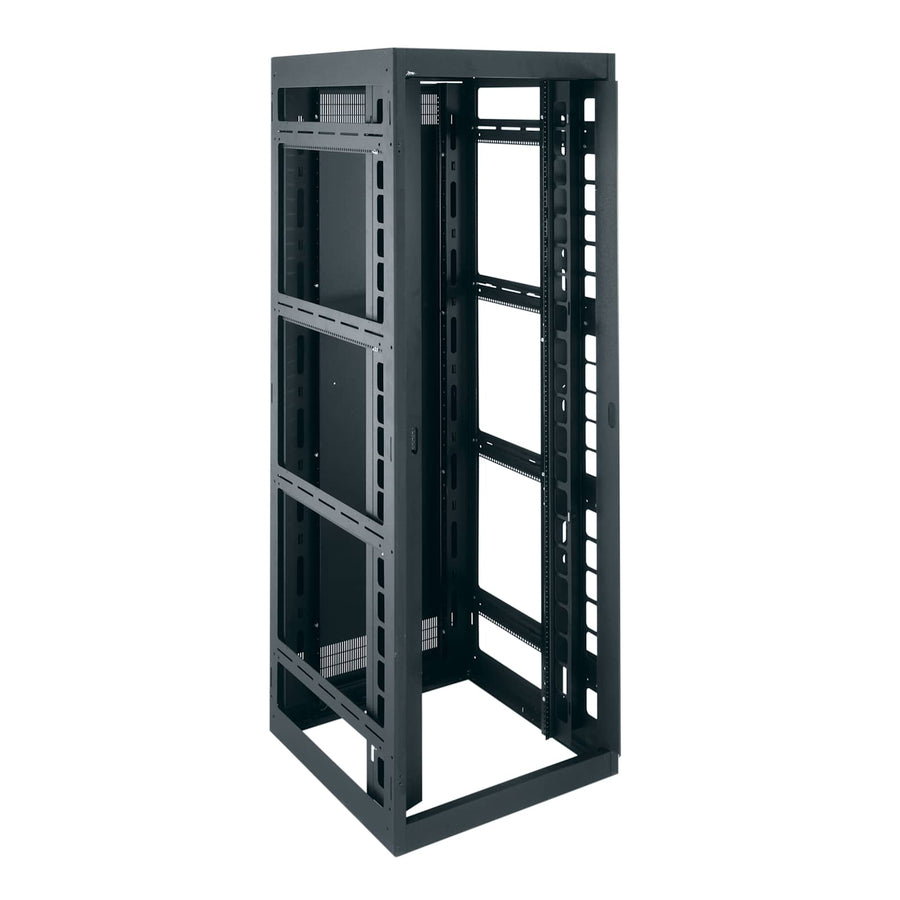

DRK Series 30 Inch Wide Rack - DRK19-44-42
44 RU floor-standing data rack with a 30" wide footprint, 42" depth, and seismic rating
The Middle Atlantic DRK19-44-42 is a purpose-built, 44 RU floor-standing rack designed to support high-density cable management in network patching and cable-heavy applications. With a 30" wide footprint, this steel frame provides abundant internal space to manage both copper and fiber cabling efficiently. This configuration is a frame-only model that includes a partially vented locking rear door and factory-mounted cable ducts with hinged steel doors and magnetic closures. These ducts can be mounted in the front or the rear depending on the installation requirements. The rack features standard front and rear adjustable 10-32 threaded rackrails with numbered spaces to facilitate organized component mounting. This unit is TAA compliant and seismic rated, meeting ASCE 7-10 standards with a seismic load capacity of 755 lbs (342.5 kg). Additionally, the DRK series is gangable, allowing multiple units to be joined together when fully loaded to create a continuous enclosure system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 83.49 in (212.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 274 lbs (124.3 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 34.85 in (88.5 cm) |
| Usable Height | 77 in (195.6 cm) |
All other specifications 16
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 30 in (76.2 cm) |
| Available Internationally | No |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747068768 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| OSHPD Number | 96-967 |
| Seismic Load Capacity | 755 lbs (342.5 kg) |
Resources
You'll need these with it
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Leveling Feet
LF$40.50
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80
44 RU Side Panels for 42-43 Inch Deep MRK or DRK Racks
SPN-44-423$1,434.60
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00

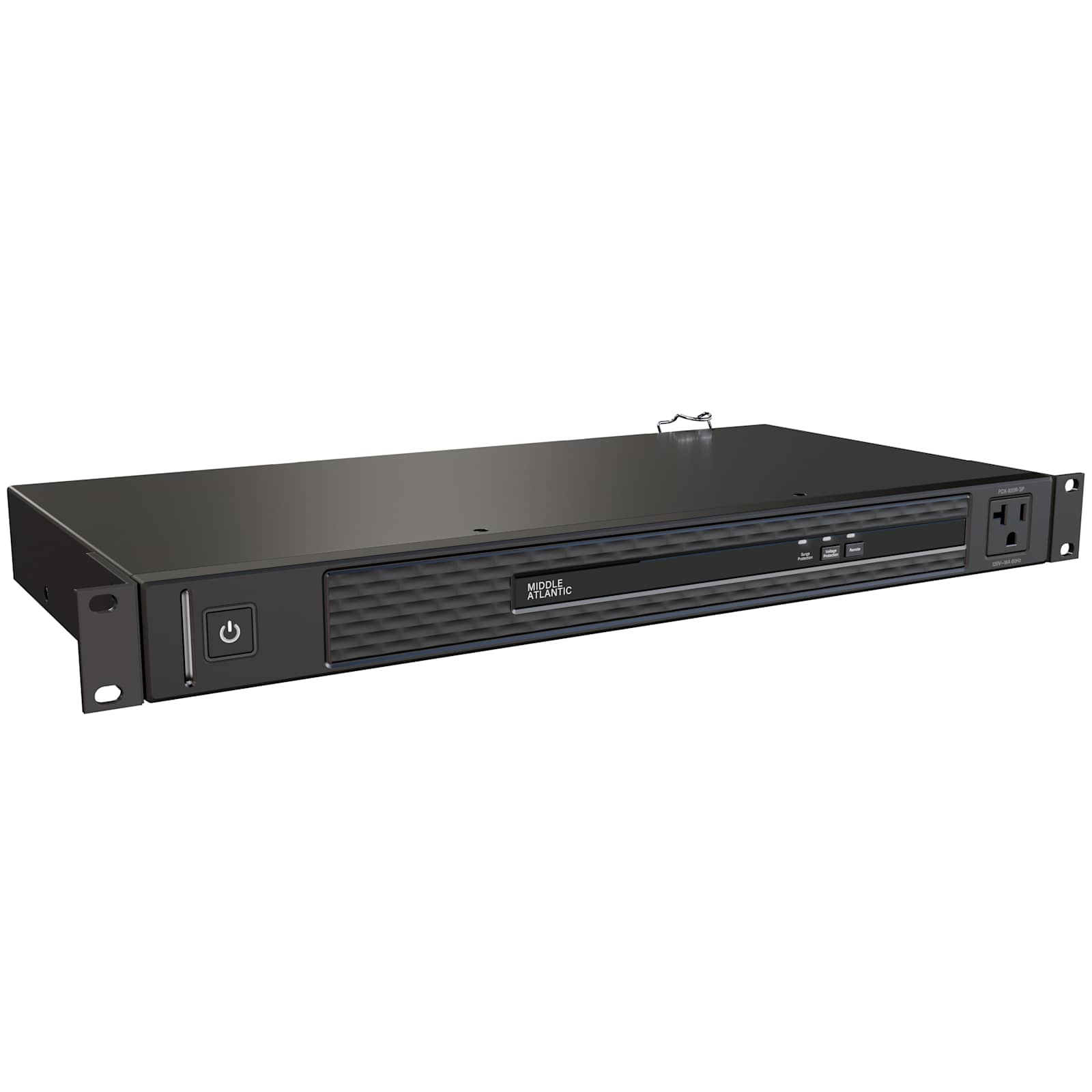

NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
Will this rack fit my 19-inch rackmount equipment?
Yes, the DRK19-44-42 features a standard 19 in (48.3 cm) panel width designed for standard rackmount hardware.
Is this rack suitable for seismic zones?
Yes, this rack is seismic rated and meets ASCE 7-10 standards with a seismic load capacity of 755 lbs (342.5 kg).
What accessories are needed to complete the enclosure?
This is a frame-only configuration. You may need to purchase side panels, such as the SPN-44-423, to fully enclose the unit.
Can I add multiple DRK racks together?
Yes, the DRK series is designed to be gangable, allowing you to join racks together when they are fully loaded.
What is the usable space inside the rack?
The DRK19-44-42 provides a usable height of 77 in (195.6 cm) and a usable depth of 34.85 in (88.5 cm).
