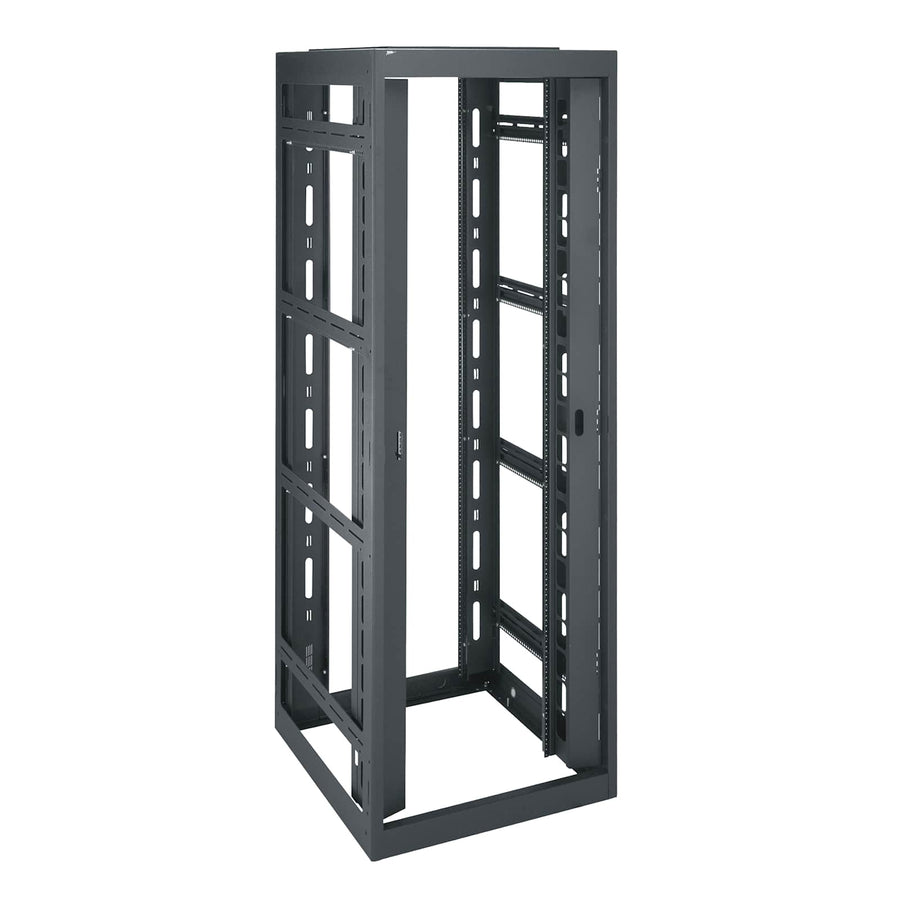

DRK Series 30 Inch Wide Rack - DRK19-44-36PROLRD
30" wide floor-standing data rack, 44 RU capacity, 36" depth, with pre-installed cable ducts and seismic certification
The DRK19-44-36PROLRD is a 44 RU floor-standing data rack engineered for high-density cable management applications. Featuring a 30" wide footprint, this frame-only enclosure provides abundant internal space to accommodate 19" panel width equipment. This series is purpose-built for network patching and other cable-heavy installations where managing large volumes of copper and fiber is a priority. The unit features a fully welded steel construction for maximum strength and is designed to be gangable, allowing multiple racks to be joined together when fully loaded. For organization, it includes pre-installed cable ducts with hinged steel doors and magnetic closures; these ducts are factory mounted in the front but can also be mounted to the rear. The rack includes adjustable front and rear cage nut rack rails with numbered spaces and comes with 100 rack screws and an MW-10FT. This model is UL Listed and holds OSHPD Number 96-967, with a seismic load capacity of 755 lbs (342.5 kg). While the frame is 36 in (91.4 cm) deep, the usable depth is 28.85 in (73.3 cm) and the usable height is 77 in (195.6 cm). The total weight capacity is 10000 lbs (4535.9 kg), with a UL load capacity of 2500 lbs (1,134 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 83.49 in (212.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 190 lbs (86.2 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 28.85 in (73.3 cm) |
| Usable Height | 77 in (195.6 cm) |
All other specifications 13
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 30 in (76.2 cm) |
| Available Internationally | No |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Cage Nut |
| Rear Door | No |
| UPC | 656747064197 |
| ASCE Number | 7-10 |
| Certifications | ASCEUL Listed |
| OSHPD Number | 96-967 |
| Seismic Load Capacity | 755 lbs (342.5 kg) |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
NEXSYS™ Online UPS Expandable Run Time Unit For 1500VA UPS Units
UPX-EXPANRUN-OL15$2,437.20
NEXSYS™ 1500VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1500R-2$3,300.30
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1000R-2$2,860.20
NEXSYS™ Online UPS Expandable Run Time Unit For 1000VA UPS Units
UPX-EXPANRUN-OL10$2,097.00
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL1000R-2$3,300.30
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
Questions about this part
What is the seismic rating of the DRK19-44-36PROLRD?
This rack has a seismic load capacity of 755 lbs (342.5 kg) and is UL Listed. It also holds OSHPD Number 96-967.
How much equipment can this 44 RU rack hold?
The rack has a total weight capacity of 10000 lbs (4535.9 kg), though the UL load capacity is specified at 2500 lbs (1,134 kg).
Does this rack include mounting hardware and cable management?
This frame-only configuration includes 100 rack screws and pre-installed cable ducts with hinged steel doors and magnetic closures.
Can I mount multiple DRK racks together?
Yes, the DRK series is gangable, meaning multiple units can be joined together once they are fully loaded.
What is the usable space inside the DRK19-44-36PROLRD?
The unit has a 36 in (91.4 cm) depth with a usable depth of 28.85 in (73.3 cm). The usable height is 77 in (195.6 cm).
