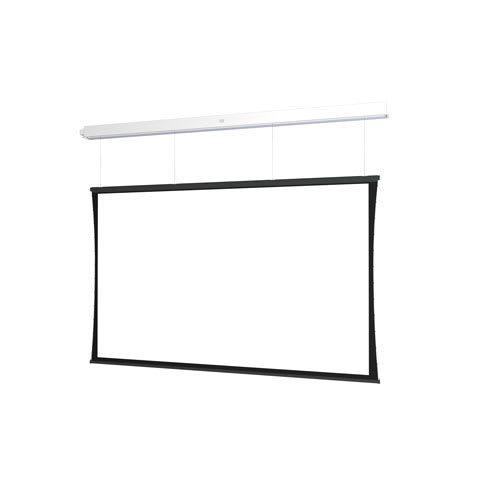

Da-Lite Tensioned Advantage Series, 96" x 153.75" with HD Progressive 1.3 - DL15037L
Tensioned ceiling recessed electric screen with HD Progressive 1.3 surface and SightLine™ cable drop, 96" x 153.75" (182" diagonal)
The Da-Lite DL15037L is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue applications. This 182 in (462.3 cm) diagonal screen features a 96 in (243.8 cm) height and a wide 16:10 aspect ratio. It utilizes SightLine™ technology, a cable drop system that uses 3 or 4 thin cables to provide a floating screen appearance, eliminating the need for a traditional black drop border. The HD Progressive 1.3 surface is designed for front projection to provide high-resolution imagery. For installation, the two-stage design allows the housing to be installed during rough-in construction, while the surface assembly is completed during the finishing stage. The white powder-coated case is UL Plenum rated and features a slot closure door. This TAA compliant model includes standard 120V (60Hz) motor operation and standard low voltage control, with Decora-style three-button wall switches available. The TruGuide™ tensioning system and Smooth Roll Technology ensure the surface remains perfectly flat during use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 182 in (462.3 cm) |
| Screen Height | 96 in (243.8 cm) |
| Shipping Dimensions | 187" x 13" x 10" (475 x 33 x 25.4 cm) |
| Shipping Weight | 225 lbs (102.1 kg) |
| Size | 96" x 153.75" or 182" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15037L work with my existing control system?
This model includes standard low voltage control and is compatible with additional Da-Lite accessories like the DL16523 controller or the DL16622 Smart Low Voltage Wall Switch.
What is required for the ceiling installation of this screen?
The Tensioned Advantage Series is designed for ceiling recessed applications; the two-stage installation allows the case to be mounted during the rough-in stage for a clean, finished look.
How does the SightLine drop differ from standard screens?
The SightLine system uses thin cables to create a floating effect, eliminating the 12-inch black drop standard on most screens and providing usable space above the screen area.
Does this screen meet TAA requirements?
Yes, this SKU is TAA compliant and is manufactured in the US.
What is the difference between this and the Parallax Pure surface?
Unlike the Parallax Pure surface which features a micro-layered lens system, this model uses the HD Progressive 1.3 surface which provides a high-resolution front projection experience.
