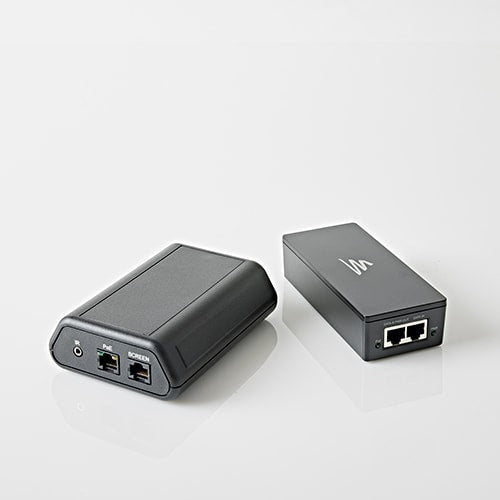

Da-Lite Screen Controller with PoE Injector - DL16521
PoE-powered screen controller with included injector for remote motorized projection screen management via TCP/IP or RS232
The Da-Lite DL16521 is a screen controller designed for electric projection screens requiring remote management. This unit enables control of a motorized screen through a TCP/IP connection, RS232 communication, Dry Contact, or a Video Projector Interface (VPI) trigger. This specific SKU includes a PoE injector, making it suitable for use where a PoE+ (30W minimum) network switch is not available to provide power over the ethernet cable. System integrators can manage and monitor devices through the RackLink™ Cloud dashboard or via the Vaddio Deployment Tool. This controller is compatible with Crestron Certified Modules and Q-SYS Certified Plug-ins. For screens with built-in low voltage control, this unit supports the Myriad Reveal Series, Myriad Conceal Series, Tensioned Advantage Series, Advantage Series, Tensioned Contour Electrol Series, and Contour Electrol Series. It also works with electric screens featuring optional built-in LVC if the screen was ordered with the "L" or "LS" suffix.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8" x 7" x 4" (203.2 x 177.8 x 101.6 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Accessory Type | ControlsLow Voltage Trigger |
| Product Selection | Screen Controller with PoE Injector |
| Screen Type | Electric |
| UPC | 840236911608 |
Resources
Questions about this part
Will the DL16521 work with my Da-Lite electric screen?
Yes, it works with electric screens with standard built-in LVC, such as the Myriad Reveal, Myriad Conceal, Advantage, and Contour Electrol series. It also supports screens with optional built-in LVC if ordered with the "L" or "LS" suffix.
Do I need a PoE switch to power this controller?
This specific DL16521 SKU includes a PoE injector, so it can be powered directly via the included injector if you are not using an ethernet switch that provides PoE+ power (30W minimum).
How is the DL16521 controller managed on a network?
You can use the device's web interface for initial setup and administrative control, or use the Vaddio Deployment Tool to scan the network and identify Da-Lite devices by IP address.
Can I add wireless control to this unit?
Yes, optional kits are available that allow you to add either an IR remote transmitter and receiver or an RF (BLE) remote that pairs directly with the Screen Controller.
What control protocols does the DL16521 support?
The controller supports remote operation through a TCP/IP connection, VPI (Video Projector Interface) Trigger, Dry Contact, and RS232 communication.
