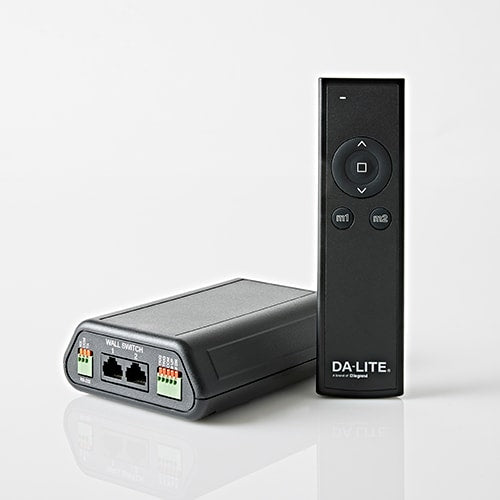

Da-Lite Screen Controller with RF (BLE) Remote - DL16522
Wireless screen controller for electric Da-Lite projection screens using RF (BLE) technology for remote operation
The DL16522 is a screen controller designed for Da-Lite motorized electric projection screens. This unit provides centralized control via a TCP/IP connection, RS232 communication, Dry Contact, or a Video Projector Interface (VPI) trigger. This specific SKU includes an RF (BLE) wireless remote to allow for remote operation of the screen. The device is powered via PoE (Power over Ethernet) and requires a connection to an ethernet switch that provides PoE+ power (30W minimum). If your network switch does not provide PoE+ or if you are not using a networked connection, a PoE injector must be used to provide power. For initial setup, administrative control, and operation, the controller features a web interface. It is also compatible with the Vaddio Deployment Tool, which scans the network to identify and configure Da-Lite devices by model and IP address.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8" x 7" x 4" (203.2 x 177.8 x 101.6 mm) |
| Shipping Weight | 1.5 lbs (0.7 kg) |
| Accessory Type | ControlsLow Voltage TriggerWireless Remote Control |
| Product Selection | Screen Controller with RF BLE Remote |
| Screen Type | Electric |
| UPC | 840236911615 |
Resources
Questions about this part
Will the DL16522 work with my Da-Lite screen?
This controller works with electric screens featuring built-in low voltage control (LVC) or external LVC. Compatible series include Myriad Reveal, Myriad Conceal, Tensioned Advantage, Advantage, Tensioned Contour Electrol, and Contour Electrol series.
What power requirements does the DL16522 have?
The device is powered by PoE and requires an ethernet switch that provides PoE+ power (30W minimum). If your switch does not provide PoE+, you will need a PoE injector with an AC cord set.
How do I set up the DL16522 on my network?
The controller features a web interface for initial setup and administrative control. You can also use the Vaddio Deployment Tool to scan the network and identify Da-Lite devices by model and IP address.
What communication protocols does this controller support?
The DL16522 supports control through a TCP/IP connection, RS232 communication, Dry Contact, and a Video Projector Interface (VPI) trigger.
Is the DL16522 part of the Legrand AV Unified Cloud Platform?
Yes, it is Legrand | AV Unified Cloud Platform enabled and is a Control Concepts supported product.
