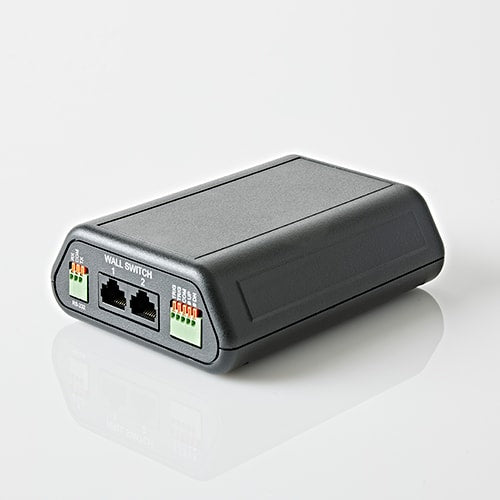

Da-Lite Screen Controller - DL15316
Motorized screen controller for Da-Lite electric screens featuring TCP/IP, RS232, and Dry Contact control via PoE+ power
The DL15316 is a Screen Controller designed to provide remote management for Da-Lite motorized projection screens. This device allows for control through a TCP/IP connection, Video Projector Interface (VPI) Trigger, Dry Contact, or RS232 Communication. It is compatible with electric screens that feature standard built-in low voltage control (LVC), such as the Myriad Reveal, Myriad Conceal, Tensioned Advantage, Advantage, Tensioned Contour Electrol, and Contour Electrol series. It also supports screens ordered with an optional built-in LVC (indicated by an "L" or "LS" suffix). The unit is RackLink™ Cloud enabled and is a Control Concepts Supported Product. For system integrators, this controller is Q-SYS Certified via specific plugins and supports management through the Vaddio Deployment Tool to scan, identify, and configure devices on a network. The interface is managed through a web interface for administrative control and initial setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8" x 7" x 4" (203.2 x 177.8 x 101.6 mm) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Accessory Type | ControlsLow Voltage Trigger |
| Product Selection | Screen Controller |
| Screen Type | Electric |
| UPC | 840236915125 |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00

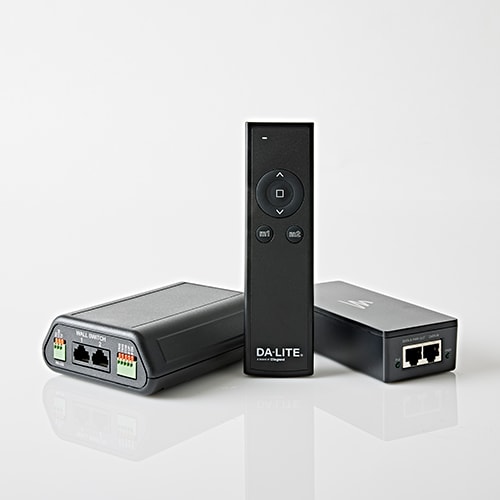

Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20

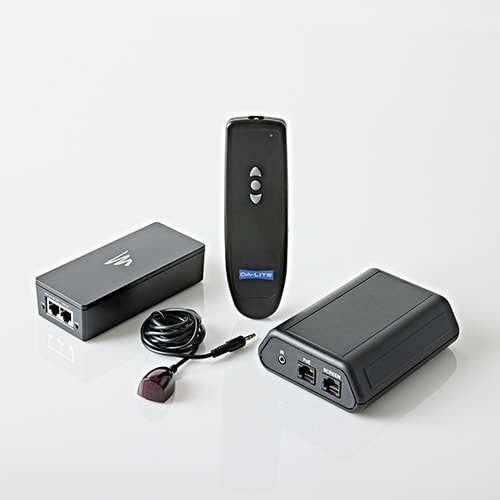

Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00

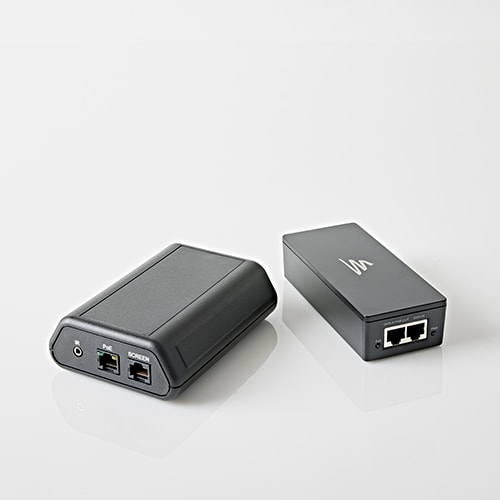

Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20

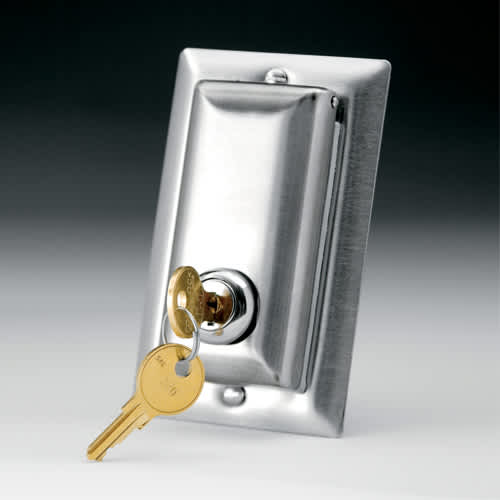

Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What kind of power does the DL15316 require?
The controller is powered by PoE and requires an Ethernet switch providing PoE+ power (30W minimum). If your switch does not provide PoE+, you must use a PoE injector.
Will this controller work with my existing Da-Lite screen?
It works with electric screens featuring standard built-in low voltage control (LVC). For screens with optional LVC, ensure the product was ordered with an "L" or "LS" suffix.
Can I add a remote control to this unit?
Yes, optional kits are available to add either an IR remote transmitter and receiver or an RF (BLE) remote that pairs directly with the controller.
How do I perform the initial configuration of the device?
Initial device setup and administrative control are managed through the unit's web interface. You can also use the Vaddio Deployment Tool to scan and identify the device on your network.
Is the DL15316 compatible with Q-SYS or Crestron?
The unit is a Control Concepts Supported Product with Q-SYS Certified Plug-ins available and supports Crestron Certified Modules.
