Da-Lite 10-ft SightLine Option - DL16476

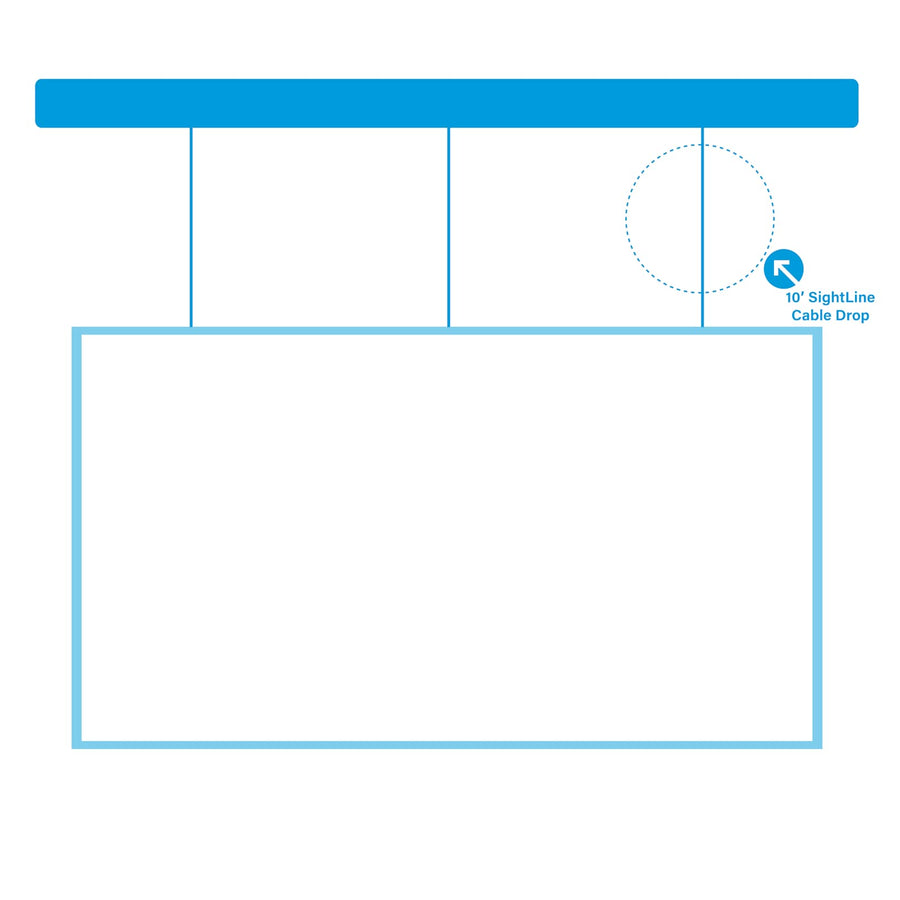

10-ft cable drop option for SightLine electric projection screens, providing flexible vertical placement for high ceilings
The Da-Lite DL16476 is a 10-ft SightLine option specifically designed for electric projection screens. This accessory provides the necessary extra cable drop for unique installations with unusually high ceilings where the standard 70" aircraft-grade cable drop is insufficient. It is compatible with both the Tensioned Advantage Series and the Advantage Series. Because this is a customization that does not alter the dimensions of the screen housing or the surface, no drawing sign-off is required for this 10' drop option. This feature allows installers to preserve architectural interests by creating usable space above the viewing area, which is useful for camera or speaker placement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 6.75" x 3.75" x 2.5" (171.5 x 95.3 x 63.5 mm) |
| Shipping Weight | 0.5 lbs (0.2 kg) |
| Accessory Type | Controls |
| Screen Type | Electric |
| UPC | 840236916344 |
Questions about this part
Which Da-Lite screens are compatible with the DL16476?
The DL16476 is designed for use with the Tensioned Advantage Series and the Advantage Series electric screens that have the SightLine cable drop selected.
Is a drawing sign-off required for this 10-ft option?
No drawing sign-off is required for the DL16476 because this customization does not cause dimensional changes to the screen surface or the housing.
How do I order this 10-ft cable drop option?
The DL16476 must be ordered as a separate line item and the Tensioned Advantage or Advantage screen must include a "C" suffix to indicate the custom 10' cable drop.
What is the benefit of using the SightLine cable drop?
The SightLine system uses thin cables to eliminate the need for a black drop border, allowing for a floating screen appearance and more flexible vertical placement.
