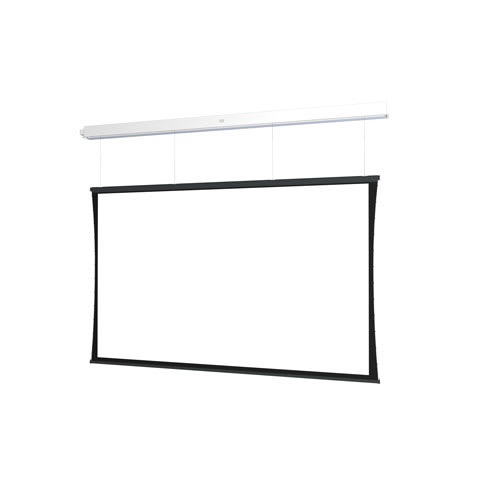

Da-Lite Tensioned Advantage Series, 87" x 153.75" with HD Progressive 1.0 Perf - DL14987BL
Ceiling recessed electric screen with HD Progressive 1.0 Perf surface, 177" diagonal, and SightLine cable drop
The Da-Lite DL14987BL is a Tensioned Advantage Series ceiling recessed electric screen designed for high-end architectural integration. This 177" diagonal (87" x 153.75") unit features the HD Progressive 1.0 Perf surface, which is acoustically transparent and optimized for high-resolution front projection. Utilizing SightLine cable drop technology, the screen provides a floating appearance by using thin suspension cables instead of a traditional black drop, preserving architectural sightlines and providing space for speakers or cameras above the viewing area. The white powder-coated case is UL Plenum rated and designed for two-stage installation: the housing can be installed during rough-in construction, while the screen surface assembly is completed during the finishing stage. This model includes standard low voltage control and a standard 120V (60Hz) motor. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain a perfectly flat, taut viewing surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 177 in (449.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 185" x 13" x 10" (469.9 x 33 x 25.4 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 87" x 153.75" or 177" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 Perf |
| TAA Compliant | Yes |
| UPC | 840236938254 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14987BL work with my existing control system?
This screen features standard low voltage control, but you can add compatible accessories like the DL16522 RF (BLE) Remote or the DL16521 PoE Injector for expanded functionality.
How does the SightLine drop feature affect installation?
The SightLine cable drop allows for variable vertical placement, accommodating a standard drop distance of up to 70" between the ceiling and the top of the screen.
What is the difference between this and the Parallax Pure surface?
The DL14987BL uses the HD Progressive 1.0 Perf surface; unlike the Parallax Pure series which is optimized for specific micro-layered optics, this surface is specifically acoustically transparent.
Can I adjust the screen height after it is installed in the ceiling?
Yes, the SightLine feature provides future-proofing for height adjustability, allowing the vertical placement of the screen to be variable.
Does this screen meet TAA requirements?
Yes, the DL14987BL is TAA compliant and is manufactured in the US.
