Da-Lite Tensioned Advantage Series, 87" x 153.75" with HD Progressive 1.0 - DL14986EL
Ceiling recessed electric screen with SightLine™ cable drop, 177" diagonal, featuring HD Progressive 1.0 surface and TAA compliance

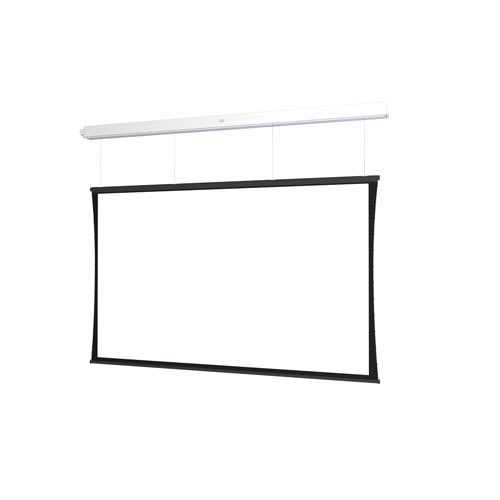

The Da-Lite DL14986EL is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue environments. This 87" x 153.75" (177" diagonal) projection surface utilizes the HD Progressive 1.0 high-resolution surface for high-quality front projection. A key feature of this model is the SightLine™ cable drop system, which utilizes a suspension system with 3 or 4 thin cables to provide the appearance of a floating screen, effectively eliminating the need for a traditional black drop border. This configuration allows for variable vertical placement, providing up to 70" of standard drop distance between the ceiling and the top of the screen. The white powder-coated case is UL Plenum rated and designed for recessed installation to conceal the rough opening. This unit comes equipped with a 220V (50Hz) motor for export markets and includes standard low voltage control for flexible operation. The TruGuide™ electric tensioning system and Smooth Roll Technology work together to maintain a perfectly flat projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 177 in (449.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 185" x 13" x 10" (469.9 x 33 x 25.4 cm) |
| Shipping Weight | 220 lbs (99.8 kg) |
| Size | 87" x 153.75" or 177" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236908592 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14986EL fit my ceiling installation?
This is a ceiling recessed model designed to be installed during the rough-in stage, with the housing concealed by ceiling trim.
How much can I adjust the drop distance for this screen?
The SightLine™ cables allow for a standard vertical placement up to 70" between the ceiling and the top of the screen.
What controls are included with the DL14986EL?
The screen features standard low voltage control and includes a Decora-style, three-button wall switch.
What additional accessories are compatible with this screen?
You can add a Da-Lite Screen Controller (such as SKU DL16524 for infrared or DL16522 for RF/BLE) or a locking switch cover plate (98837).
Is this screen TAA compliant?
Yes, the DL14986EL is TAA compliant and features a US country of origin.
