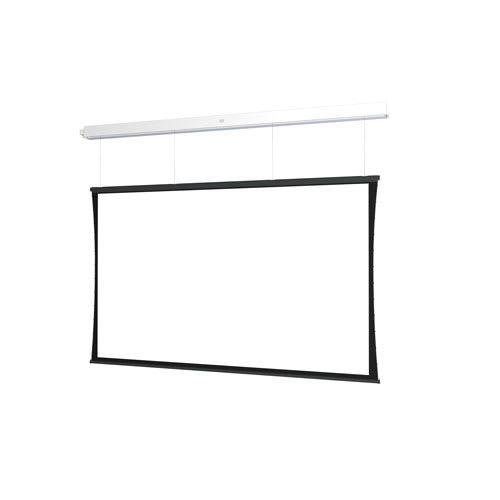

Da-Lite Tensioned Advantage Series, 87" x 153.75" with Da-Mat - DL14990L
Ceiling recessed electric projection screen, 87" x 153.75" (177" diagonal) with SightLine™ cable drop and Da-Mat surface
The Da-Lite DL14990L is a Tensioned Advantage Series ceiling recessed electric screen designed for professional large venue environments. This 177" diagonal (87" x 153.75") front projection screen features the SightLine™ cable drop system, which utilizes a single roller design with 3 or 4 thin cables. This configuration creates the appearance of a floating screen and eliminates the need for a traditional black drop border. The SightLine system provides significant installation flexibility, as the cables accommodate a standard drop distance of up to 70" between the ceiling and the top of the screen, or an optional 10' drop. This allows installers to preserve architectural interests or create space for camera and speaker placement. This TAA compliant screen is finished with a Da-Mat surface and includes standard low voltage control with a white powder-coated case. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology ensure the viewing surface remains perfectly flat during operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 177 in (449.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 185" x 13" x 10" (469.9 x 33 x 25.4 cm) |
| Shipping Weight | 220 lbs (99.8 kg) |
| Size | 87" x 153.75" or 177" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236908684 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14990L work for my ceiling recessed installation?
Yes, this model is specifically designed for ceiling recessed applications and features a white powder-coated case with a slot closure door for a clean finish.
How do I adjust the drop distance for this screen?
The integrated SightLine™ cable drop allows for variable vertical placement, accommodating standard drops up to 70" or an optional 10' extension between the ceiling and the screen top.
What additional controllers are compatible with the DL14990L?
You can add various accessories such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote (DL16524) to manage the electric motor.
Is this screen suitable for front projection?
Yes, the DL14990L is a front projection screen featuring a Da-Mat surface and standard black backing to retain projected brightness.
What is required for submittals regarding this screen?
Installers can access the Tensioned Advantage Series Specification Sheet or the CAD/BIM models available in the resources section for project planning.
