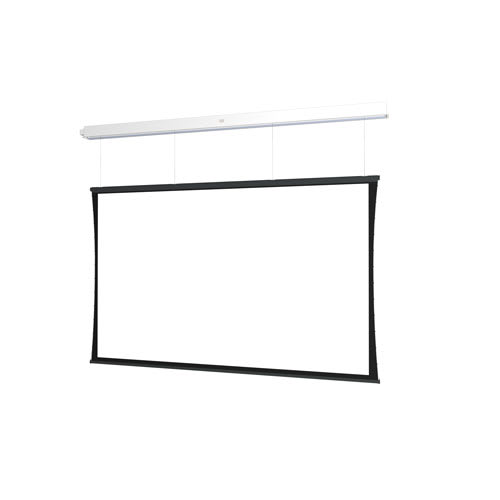

Da-Lite Tensioned Advantage Series, 87" x 153.75" with Da-Mat - DL14990EL
Ceiling recessed electric screen featuring SightLine cable drop and Da-Mat surface, 87" x 153.75" (177" diagonal)
The Da-Lite DL14990EL is a Tensioned Advantage Series ceiling recessed electric screen designed for high-impact large venue environments. This 177 in (449.6 cm) diagonal screen features a 87 in (221 cm) height and is configured for front projection using a Da-Mat surface. Utilizing SightLine cable drop technology, this screen provides a floating appearance by using thin cables to eliminate the need for a traditional black drop border. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain a perfectly flat viewing surface. This TAA compliant model is designed for 220V (50Hz) export markets and includes standard low voltage control. The white powder-coated case is UL plenum rated and intended for ceiling recessed applications. For installation, the sliding mounting brackets allow for flexible attachment to the structure above the drop ceiling during the rough-in stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 177 in (449.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 185" x 13" x 10" (469.9 x 33 x 25.4 cm) |
| Shipping Weight | 220 lbs (99.8 kg) |
| Size | 87" x 153.75" or 177" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236908677 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14990EL work with my existing ceiling setup?
The DL14990EL is a ceiling recessed screen that utilizes sliding installation brackets, allowing for flexible mounting to the structure above a drop ceiling.
How can I adjust the vertical drop distance for this screen?
The integrated SightLine cable drop allows for variable vertical placement, accommodating standard drop distances up to 70" (1779.4 mm) between the ceiling and the top of the screen.
What control options are compatible with the DL14990EL?
This unit features standard low voltage control, but is compatible with various accessories such as the DL16521 PoE Injector or the DL16524 Infrared Remote Controller.
What is the difference between the SightLine and standard drop options?
The SightLine feature uses 3 or 4 thin cables to provide a floating look and creates usable space above the viewing area for camera or speaker placement.
Is this screen suitable for federal projects?
Yes, this model is TAA compliant and is manufactured in the US.
