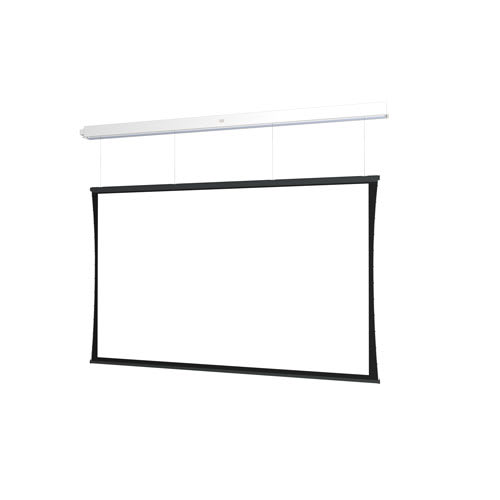

Da-Lite Tensioned Advantage Series, 78" x 139" with Da-Mat - DL14983FL
Tensioned Advantage ceiling recessed electric screen with SightLine cable drop, 78" x 139" Da-Mat surface
The Da-Lite DL14983FL is a 78" x 139" (159" diagonal) Tensioned Advantage Series ceiling recessed electric screen featuring a Da-Mat surface. Designed for high-end architectural integration, this SightLine cable drop model provides a floating screen appearance by utilizing a suspension system with thin cables, which eliminates the need for a traditional black drop border. This configuration preserves usable ceiling space above the viewing area, allowing for the placement of speakers or cameras. The screen uses Smooth Roll Technology to maintain a perfectly flat surface and is supported by the TruGuide™ Electric Screen Tensioning System. This SKU is the surface and roller assembly only; the housing/case must be ordered separately. It is TAA compliant and features a UL Plenum rated white powder-coated case for a clean aesthetic in professional environments. The unit includes standard 120V (60Hz) motor operation and standard low voltage control, providing flexible installation options for large venue front projection applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Dimensions | 169" x 13" x 10" (429.3 x 33 x 25.4 cm) |
| Shipping Weight | 109 lbs (49.4 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236938124 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Does the DL14983FL include the mounting housing?
No, this SKU is for the Surface, Roller, and Motor Assembly only. The case/box must be ordered separately.
How much vertical adjustment is possible with the SightLine drop?
The SightLine cables accommodate a standard vertical placement range of up to 70" (1778 mm) between the ceiling and the top of the screen.
What control options are compatible with this screen?
This model features standard low voltage control. Compatible accessories include Da-Lite screen controllers (SKU DL16521, DL16522, DL16523, DL16524, or DL16525) and smart low voltage wall switches.
Is this screen suitable for ceiling recessed applications?
Yes, it is designed for ceiling recessed application with a two-stage installation process for the housing and surface assembly.
Will this screen work with my current projection setup?
The DL14983FL is designed for front projection on a Da-Mat surface and is ideal for large venue applications.
