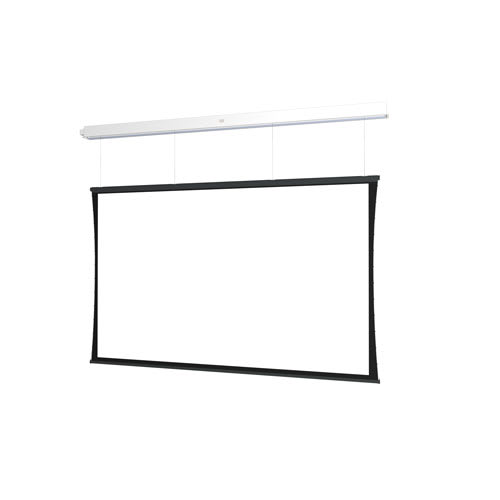

Da-Lite Tensioned Advantage Series, 72.5" x 116" with HD Progressive 1.0 - DL15023EL
Ceiling recessed electric screen, 72.5" x 116" (137" diagonal), featuring HD Progressive 1.0 surface and SightLine cable drop
The Da-Lite DL15023EL is a Tensioned Advantage Series ceiling recessed electric screen designed for front projection applications. This 137" (348 cm) diagonal unit features a 16:10 wide screen format with an HD Progressive 1.0 surface. Engineered for clean architectural integration, the series includes ceiling trim to conceal rough openings, eliminating the need for additional trim work after installation. This specific model utilizes SightLine cable drop technology, which employs a single roller design with 3 or 4 thin cables. This suspension system creates the appearance of a floating screen and eliminates the need for a traditional black drop. The cables accommodate a standard vertical drop distance of up to 70" between the ceiling and the top of the screen, providing space for camera or speaker placement. This model includes standard low voltage control and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Shipping Dimensions | 143" x 13" x 10" (363.2 x 33 x 25.4 cm) |
| Shipping Weight | 176 lbs (79.8 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15023EL fit a standard ceiling recessed installation?
Yes, this model is designed for ceiling recessed applications and includes trim to hide the rough opening. It features sliding installation brackets for mounting to the structure above a drop ceiling.
What is the drop distance for the SightLine cable system on this screen?
The SightLine feature on this DL15023EL model provides a standard vertical drop of up to 70" between the ceiling and the top of the screen.
What controls are compatible with the DL15023EL?
This screen features standard low voltage control. For additional functionality, you can add accessories like the DL16522 RF (BLE) remote controller or the DL16521 PoE injector controller.
Is this Da-Lite screen TAA compliant for government contracts?
Yes, the DL15023EL is TAA compliant and is manufactured in the US.
What additional hardware is needed for a complete installation?
This is a complete screen, but you may need to purchase separate controllers, such as the DL16622 Smart Low Voltage Wall Switch, depending on your control requirements.
