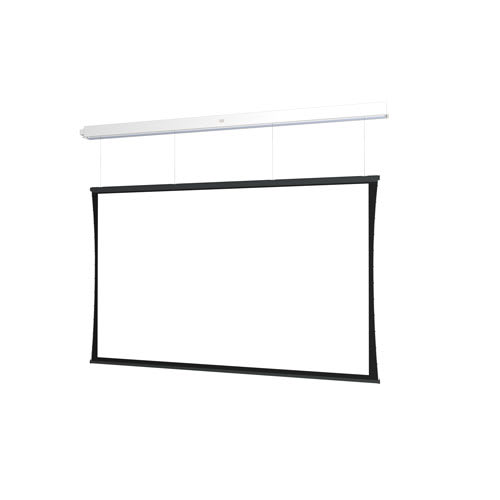

Da-Lite Tensioned Advantage Series, 72.5" x 116" with Da-Mat - DL15026L
Ceiling recessed electric screen with Da-Mat surface, SightLine cable drop, and 137 inch diagonal, wide 16:10 format
The Da-Lite DL15026L is a Tensioned Advantage series ceiling recessed electric screen designed for high-performance large venue environments. This 72.5" x 116" (137 in (348 cm) diagonal) projection screen utilizes a 16:10 wide screen format and is paired with a Da-Mat surface for standard resolution front projection. This model features the SightLine cable drop system, which uses a single roller design with 3 or 4 thin cables to create the appearance of a floating screen, effectively eliminating the need for a traditional black drop. The unit includes standard 120V (60Hz) motor control and standard low voltage control for integrated system operation. For installation, the two-stage mounting process allows the white powder-coated, UL plenum rated case to be installed during the rough-in stage, while the screen surface assembly is completed during the finishing stage. This configuration is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Shipping Dimensions | 143" x 13" x 10" (363.2 x 33 x 25.4 cm) |
| Shipping Weight | 176 lbs (79.8 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
How does the SightLine drop work with this Da-Lite DL15026L screen?
The SightLine feature uses thin cables to suspend the screen, creating a floating appearance. This eliminates the need for a black drop and provides adjustable vertical placement.
What is required for the installation of the DL15026L?
The tensioned Advantage series supports a two-stage installation. The housing can be mounted during rough-in, and the surface assembly is installed during the final stage using sliding mounting brackets.
Is the DL15026L suitable for plenum-rated environments?
Yes, this model features an UL plenum rated case, making it suitable for specific ceiling installation requirements.
What accessories are compatible with the DL15026L?
You can add specialized controls like the Da-Lite DL16522 RF (BLE) Remote or the DL16521 PoE Injector controller to manage screen operation.
Does this screen support TAA compliance for government projects?
Yes, the DL15026L is TAA compliant and is manufactured in the US.
