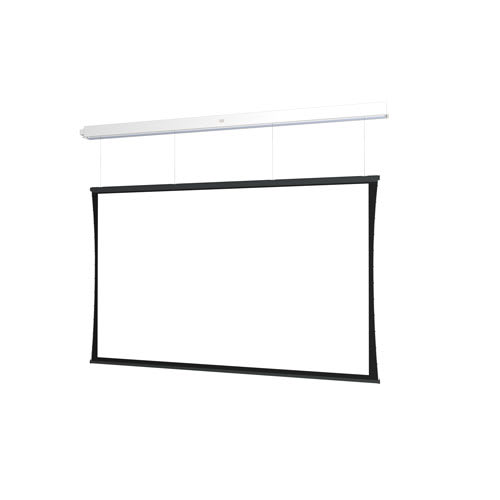

Da-Lite Tensioned Advantage Series, 69" x 110" with HD Progressive 1.1 Contrast - DL15018LS
69" x 110" ceiling recessed electric screen featuring SightLine™ cable drop and HD Progressive 1.1 Contrast surface
The Da-Lite DL15018LS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This 69" x 110" (130" diagonal) wide format (16:10) screen is built for large venue environments where professional aesthetics are paramount. It features the SightLine™ cable drop system, which uses a suspension system with 3 or 4 thin cables to create the appearance of a floating screen. This eliminates the need for traditional black drop borders and allows the screen to be positioned with a variable drop distance between the ceiling and the top of the screen. For this specific model, the standard drop is up to 70" (1779 mm), though a 10' (3048 mm) option is available. The unit is equipped with a standard 120V (60Hz) motor and includes standard low voltage control via a Decora-style, three-button wall switch. The housing is finished in white powder coating and is UL plenum rated. The HD Progressive 1.1 Contrast surface is designed for front projection, utilizing a standard black backing to maintain projected brightness.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 138" x 13" x 10" (350.5 x 33 x 25.4 cm) |
| Shipping Weight | 168 lbs (76.2 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
The SightLine™ system uses thin cables to suspend the screen, allowing for a variable drop distance of up to 70" from the ceiling. This creates a floating appearance and avoids the need for a black drop border.
The SightLine™ system uses thin cables to suspend the screen, allowing for a variable drop distance of up to 70" from the ceiling. This creates a floating appearance and avoids the need for a black drop border.
The DL15018LS features a wide 16:10 screen format with an HD Progressive 1.1 Contrast surface designed for front projection applications.
The DL15018LS features a wide 16:10 screen format with an HD Progressive 1.1 Contrast surface designed for front projection applications.
This screen is equipped with a standard 120V (60Hz) motor and comes with standard low voltage control and a Decora-style three-button wall switch.
This screen is equipped with a standard 120V (60Hz) motor and comes with standard low voltage control and a Decora-style three-button wall switch.
No, the Tensioned Advantage Series is designed with ceiling trim in place to conceal the rough opening, eliminating the need for additional trim work once installed.
No, the Tensioned Advantage Series is designed with ceiling trim in place to conceal the rough opening, eliminating the need for additional trim work once installed.
Yes, you can add accessories such as the DL16524 infrared remote controller or the DL16522 RF (BLE) remote controller for flexible operation.
Yes, you can add accessories such as the DL16524 infrared remote controller or the DL16522 RF (BLE) remote controller for flexible operation.
