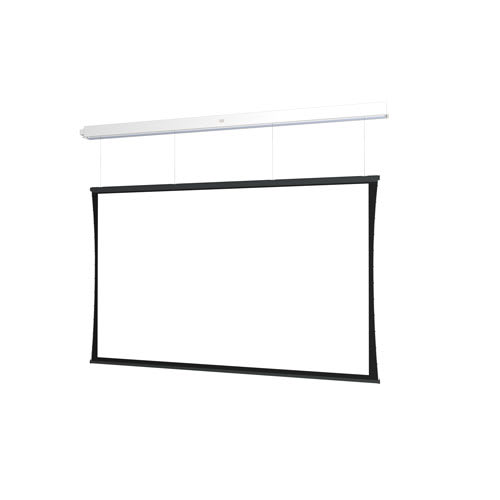

Da-Lite Tensioned Advantage Series, 69" x 110" with Da-Mat - DL15020EBLS
Ceiling recessed electric screen with Da-Mat surface, SightLine cable drop, and TAA compliance
The Da-Lite DL15020EBLS is a 69" x 110" (130" diagonal) Tensioned Advantage Series electric screen designed for ceiling recessed applications. This model features the SightLine cable drop system, which utilizes a suspension system with 3 or 4 thin cables to create a floating screen appearance, eliminating the need for a traditional black drop border. The screen is equipped with a standard low voltage control and utilizes a 220V (50Hz) motor designed for export markets. The unit is built with a white powder-coated case and includes a slot-style closure door. For installation flexibility, this series supports a two-stage process: the case can be installed during the rough-in stage, while the screen surface assembly is added during finishing. The screen features a wide 16:10 format on a Da-Mat surface, utilizing TruGuide™ electric tensioning and Smooth Roll Technology to ensure a perfectly flat, professional viewing surface. This TAA compliant solution is manufactured in the US and is suitable for large venue front projection environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 138" x 13" x 10" (350.5 x 33 x 25.4 cm) |
| Shipping Weight | 130 lbs (59 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this Da-Lite screen work with my existing ceiling setup?
The DL15020EBLS is designed for ceiling recessed applications. The series features sliding installation brackets that provide mounting flexibility for attachment to structures above a drop ceiling.
How does the SightLine cable drop affect the installation?
The SightLine system uses 3 or 4 thin cables to hold the screen, providing a floating effect. This eliminates the need for a black drop, creating usable space above the screen for cameras or speakers.
What electrical requirements are needed for this motor?
This specific model is equipped with a 220V (50Hz) motor intended for export use.
Is this screen TAA compliant for government contracts?
Yes, the DL15020EBLS is TAA compliant and is manufactured in the USA.
What additional controllers are compatible with this screen?
You can add various accessories such as the Da-Lite Screen Controller with Infrared Remote (DL16524) or RF (BLE) Remote (DL16522) for enhanced operation.
