Da-Lite Tensioned Advantage Series, 65" x 116" with HD Progressive 1.1 Contrast - DL14974FL
Recessed electric screen for front projection, 65" x 116" with HD Progressive 1.1 Contrast and SightLine cable drop

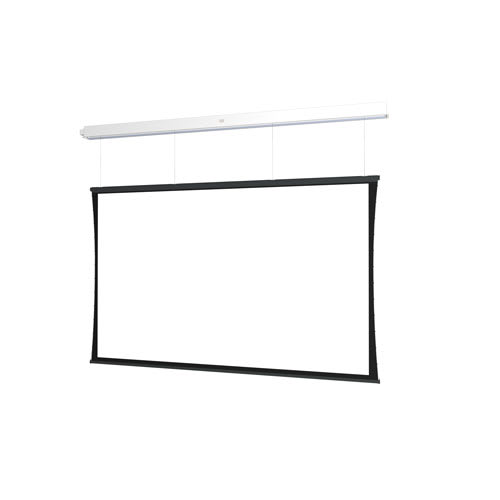

The Da-Lite DL14974FL is a Tensioned Advantage Series recessed ceiling electric screen designed for professional large venue environments. This 133 in (337.8 cm) diagonal screen features an HDTV (16:9) format and utilizes the HD Progressive 1.1 Contrast surface to enhance projected brightness. It utilizes the SightLine cable drop system, which employs 3 or 4 thin cables to support the surface, creating a floating appearance and eliminating the need for a traditional black drop. This allows for variable vertical placement of the screen with a standard drop distance of up to 70" (1778 mm) between the ceiling and the top of the screen, or an optional 10' (3048 mm) drop with part number DL16476. This configuration is ideal for preserving architectural interests or leaving space for camera and speaker placement above the viewing area. The assembly includes the motor, roller, and surface, but the case and box must be ordered separately. This TAA compliant unit features a white powder-coated case and a standard 120V (60Hz) motor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 144.75" x 13" x 10" (367.7 x 33 x 25.4 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236937769 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this screen fit my specific display setup?
The DL14974FL is a projection screen, not a display mount, designed for front projection using the HD Progressive 1.1 Contrast surface.
What is required for a complete installation?
This SKU is the surface, roller, and motor assembly only; the screen case and box must be ordered separately to complete the recessed installation.
How does the SightLine cable drop affect installation?
The SightLine system uses thin cables to support the surface, allowing for a variable drop distance up to 70" (1778 mm) standard or 10' (3048 mm) with accessory DL16476.
What control options are compatible with this screen?
This unit includes standard low voltage control and is compatible with various accessories like the DL16522 RF (BLE) Remote Controller or the DL16622 Smart Low Voltage Wall Switch.
Does this screen meet TAA requirements?
Yes, this product is TAA compliant and features a UL Plenum rated case for professional installations.
