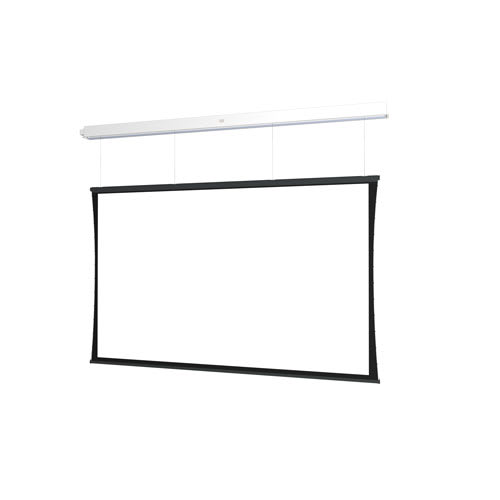

Da-Lite Tensioned Advantage Series, 65" x 116" with HD Progressive 1.1 Contrast - DL14974EFL
133" diagonal ceiling recessed electric screen with HD Progressive 1.1 Contrast surface and SightLine cable drop
The Da-Lite DL14974EFL is a Tensioned Advantage Series ceiling recessed electric screen designed for professional large venue environments. This 133 in (337.8 cm) diagonal, 65 in (165.1 cm) high screen features a SightLine cable drop, which utilizes a suspension system with 3 or 4 thin cables to create a floating effect and eliminate the need for a traditional black drop border. This configuration provides a clean, modern aesthetic and preserves architectural interest by allowing usable space between the ceiling and the top of the screen. This specific SKU features the HD Progressive 1.1 Contrast surface for high-resolution front projection. The motor is configured for 220V (50Hz) for export and includes standard low voltage control. As a surface and roller assembly only, this product requires the case and box to be ordered separately. The assembly features a white powder-coated case and a slot closure door.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 142" x 13" x 10" (360.7 x 33 x 25.4 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236937752 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the Da-Lite DL14974EFL fit my ceiling installation?
This is a ceiling recessed application. It utilizes sliding installation brackets to provide mounting flexibility for attachment to the structure above a drop ceiling.
What is the drop distance for the SightLine cable system?
The SightLine feature allows for variable vertical placement, accommodating a standard range of up to 70" between the ceiling and the top of the screen.
What else do I need to buy to complete the installation?
This SKU is the surface and roller assembly only; you must order the case and box separately to complete the installation.
Does this screen include a remote control?
This unit comes with standard low voltage control. You can add optional accessories like the DL16522 RF (BLE) remote or the DL16524 infrared remote.
Is this screen TAA compliant for government projects?
Yes, the DL14974EFL is TAA compliant and is manufactured in the US.
