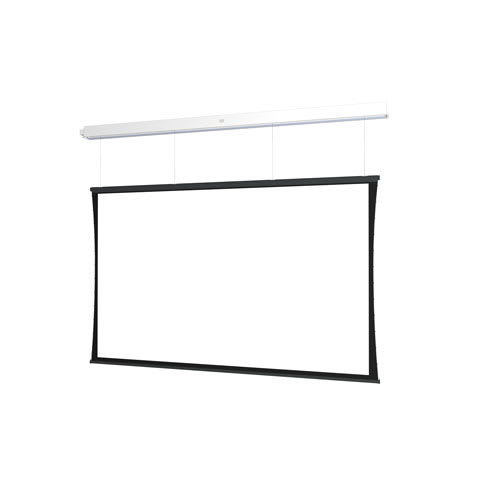

Da-Lite Tensioned Advantage Series, 65" x 104" with HD Progressive 1.3 - DL15013BLS
65" x 104" ceiling recessed electric screen with HD Progressive 1.3 surface and SightLine cable drop
The Da-Lite DL15013BLS is a Tensioned Advantage series electric screen designed for ceiling recessed applications. This model features the SightLine cable drop system, which utilizes a single roller design with 3 or 4 thin cables to create a floating screen effect. This suspension system eliminates the need for a traditional black drop border, preserving architectural interest and providing space for camera or speaker placement above the viewing area. This specific SKU features the HD Progressive 1.3 high-resolution surface and is configured for a wide 16:10 aspect ratio. Built for large venue environments, the screen is TAA compliant and features a white powder-coated, UL Plenum rated case. The two-stage installation process allows the case to be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage. This unit includes standard 120V (60Hz) motor operation and standard low voltage control, with the ability to use a Decora-style, three-button wall switch.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 129" x 13" x 10" (327.7 x 33 x 25.4 cm) |
| Shipping Weight | 125 lbs (56.7 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15013BLS fit my 123-inch diagonal display requirement?
Yes, this screen is specified as a 65" x 104" model with a 123 in (312.4 cm) diagonal measurement.
How much vertical adjustment is possible with the SightLine cable drop?
The SightLine system allows for a variable drop distance, accommodating standard heights or an optional 10-ft extension between the ceiling and the top of the screen.
What is required for the installation of this recessed screen?
This unit is designed for ceiling recessed applications and requires the installer to manage two stages: rough-in of the case and then the surface assembly during finishing.
What accessories are compatible with the DL15013BLS for remote operation?
You can add various controllers, such as the Da-Lite Screen Controller with an Infrared Remote (DL16524) or an RF (BLE) Remote (DL16522).
Is this screen TAA compliant for government projects?
Yes, the DL15013BLS is TAA compliant and manufactured in the US.
